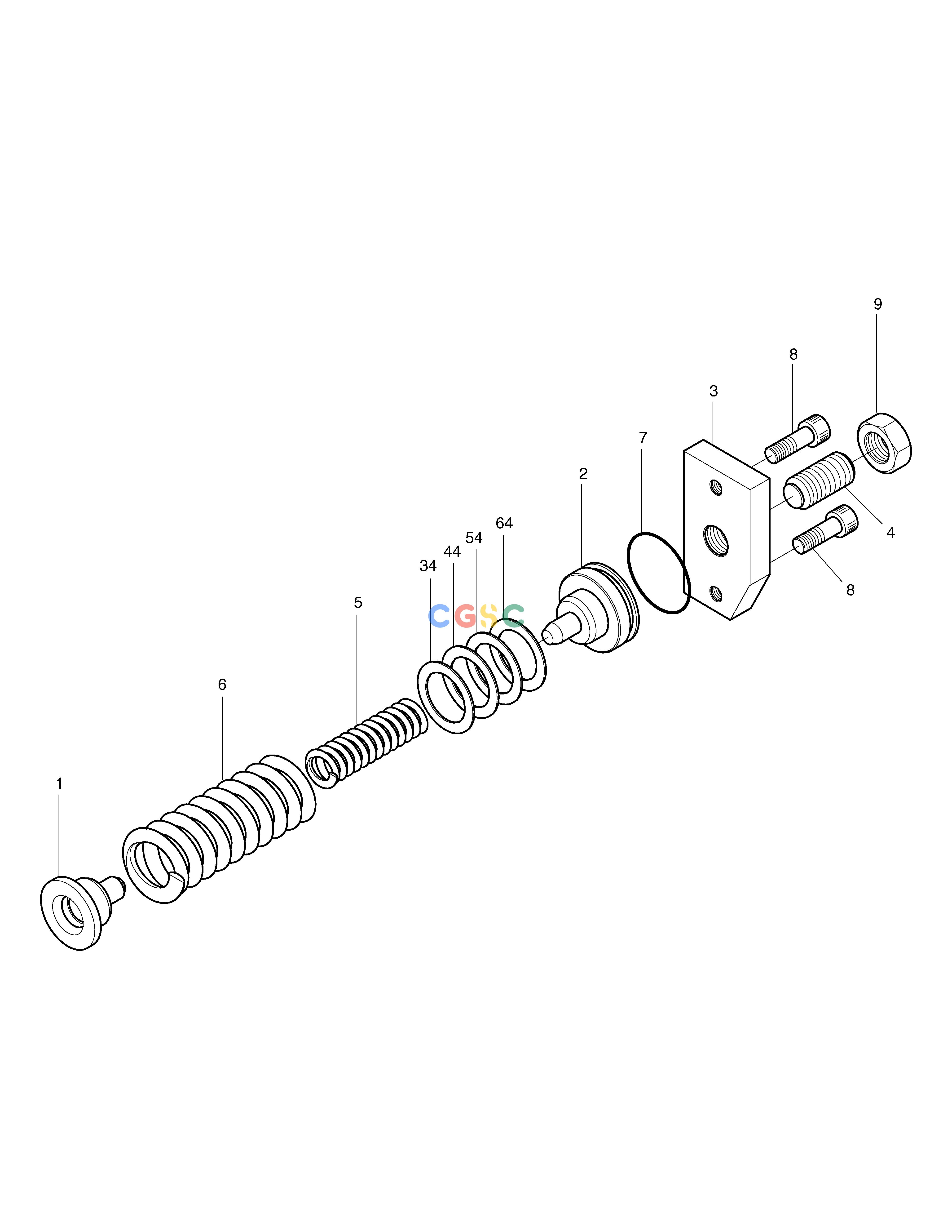

斗山零件查询MAIN PUMP - CONTROL SPRING B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
469 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
1100327714
|
[1] |
SEAT;SPRING
|
|
| 2. |
1100352398
|
[1] |
SEAT;SPRING
|
|
| 3. |
1100690609
|
[1] |
COVER
|
|
| 34. |
1704091869
|
[2] |
SHIM
|
|
| 4. |
1100330307
|
[1] |
SCREW;ADJUSTING
|
|
| 44. |
1303036213
|
[2] |
SHIM
|
|
| 44. |
1100229436
|
[2] |
SHIM
|
|
| 5. |
1100324403
|
[1] |
SPRING
|
|
| 5. |
R971010632
|
[1] |
SPRING
|
|
| 54. |
1100229436
|
[2] |
SHIM
|
|
| 6. |
1100542326
|
[1] |
SPRING
|
|
| 64. |
1100229445
|
[2] |
SHIM
|
|
| 7. |
1301240007
|
[1] |
O-RING
|
|
| 8. |
1301568002
|
[2] |
BOLT;SOCKET M8X30
|
|
| 9. |
1301987009
|
[1] |
NUT
|
|
