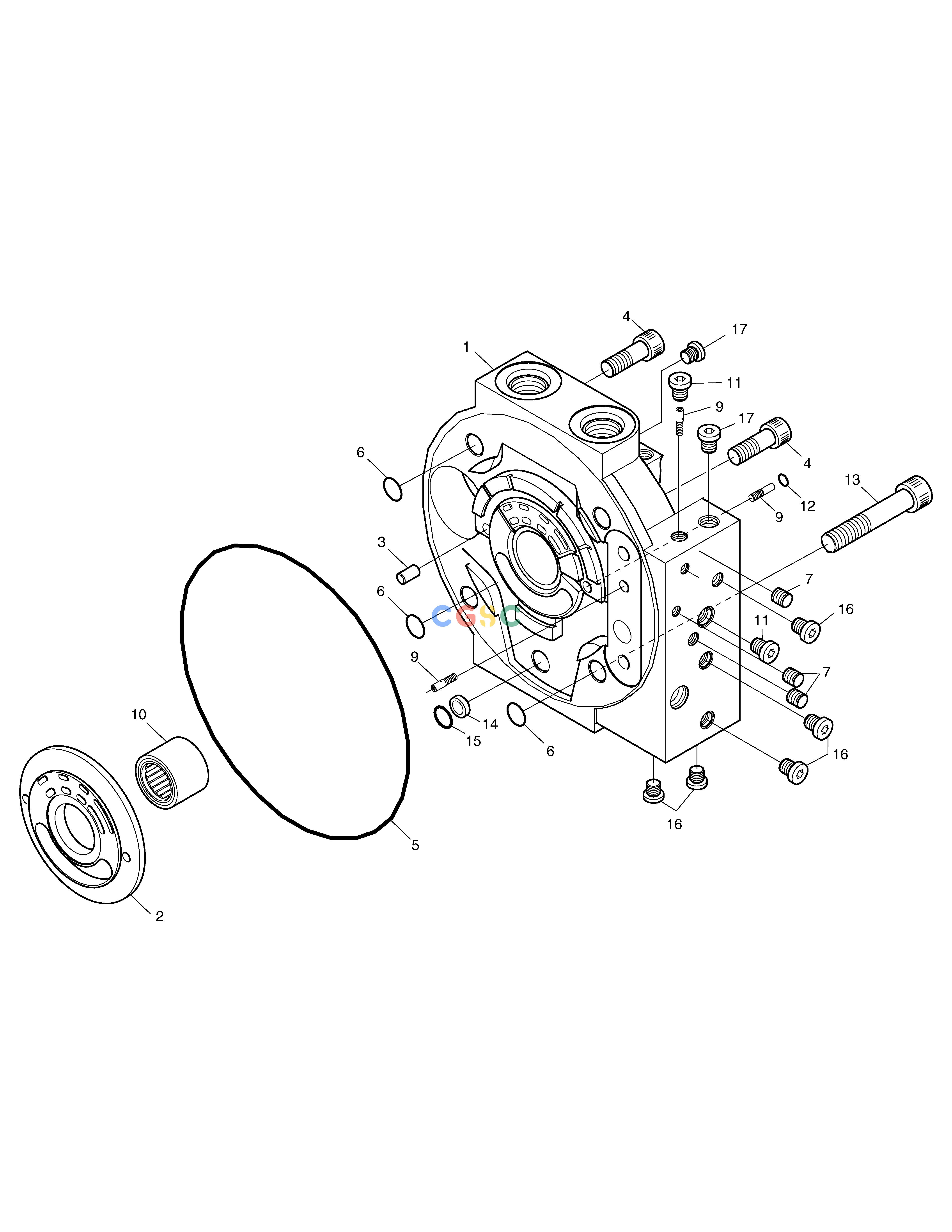

斗山零件查询MAIN PUMP - COVER B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
362 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
1100501664
|
[1] |
COVER
|
|
| 10. |
1100316806
|
[1] |
BEARING
|
|
| 11. |
4100104417
|
[2] |
PLUG
|
|
| 12. |
1301157006
|
[1] |
O-RING
|
|
| 13. |
1301584004
|
[1] |
BOLT;SOCKET M12X55
|
|
| 14. |
1100452856
|
[1] |
FILTER
|
|
| 15. |
1302155001
|
[1] |
RING;RETAINNING
|
|
| 16. |
1701538807
|
[3] |
PLUG M8
|
|
| 17. |
4100104426
|
[3] |
PLUG
|
|
| 2. |
1100508169
|
[1] |
PLATE;CONTROL
|
|
| 3. |
1302180052
|
[2] |
PIN;PARALLEL
|
|
| 4. |
1301651003
|
[3] |
BOLT;SOCKET M12X30
|
|
| 5. |
1303040074
|
[1] |
O-RING
|
|
| 6. |
1800042641
|
[4] |
O-RING
|
|
| 7. |
1701538797
|
[2] |
PLUG M6
|
|
| 9. |
1100232432
|
[3] |
ORIFICE
|
|
