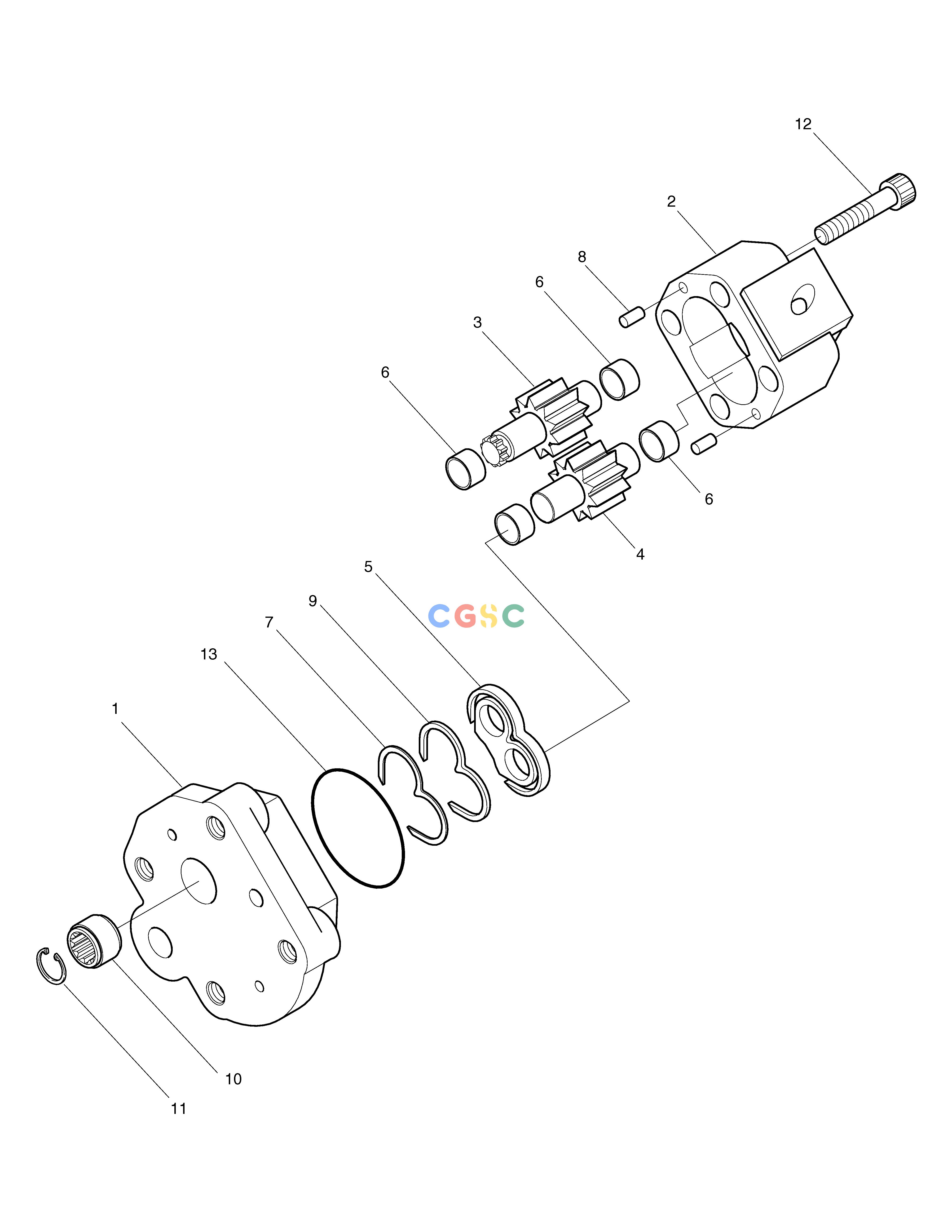

斗山零件查询MAIN PUMP - GEAR PUMP(2) B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
571 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
1100447836
|
[1] |
FRAME
|
|
| 10. |
1100330893
|
[1] |
COUPLING
|
|
| 11. |
1302149006
|
[1] |
RING;RETAINING
|
|
| 12. |
1301572001
|
[4] |
BOLT;SOCKET HEAD M8×45L
|
|
| 13. |
1300245001
|
[1] |
O-RING
|
|
| 2. |
1100542683
|
[1] |
HOUSING
|
|
| 3. |
1100542692
|
[1] |
GEAR;DRIVE
|
|
| 4. |
1100262689
|
[1] |
GEAR;IDLE
|
|
| 5. |
1100238229
|
[1] |
PLATE;SIDE
|
|
| 6. |
1100240149
|
[4] |
METAL
|
|
| 7. |
1100238247
|
[1] |
RING;BACK-UP
|
|
| 8. |
1100022804
|
[2] |
PIN;PARALLEL
|
|
| 9. |
1100238238
|
[1] |
RING;SQUARE
|
|
