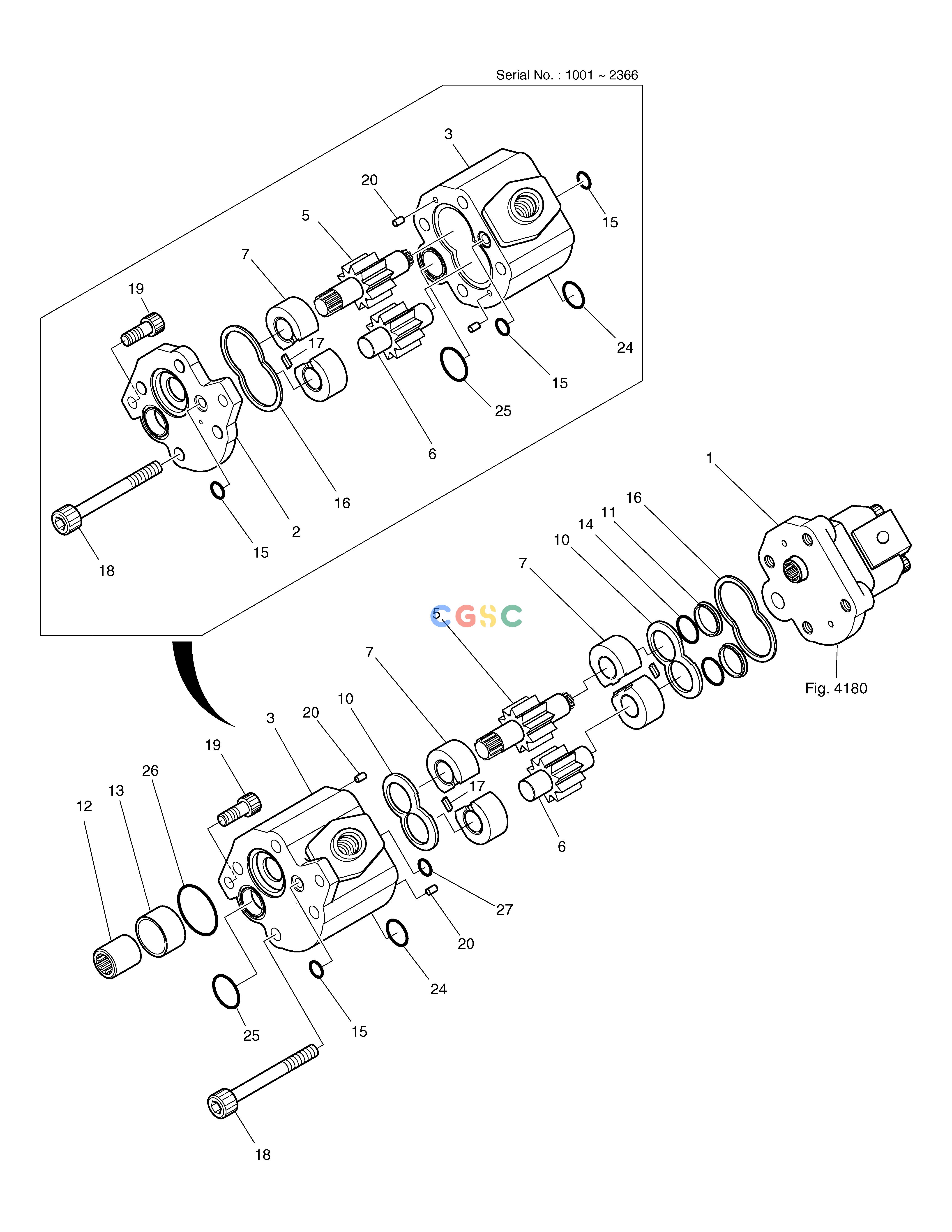

斗山零件查询MAIN PUMP - GEAR PUMP(1) B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
770 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
H9309R9326-0
|
[1] |
PUMP;GEAR
|
|
| 10. |
1164034001
|
[1] |
PLATE
|
|
| 10. |
1100690627
|
[2] |
PLATE
|
|
| 11. |
1164035004
|
[2] |
GUIDE
|
|
| 12. |
1100397492
|
[1] |
COUPLING
|
|
| 13. |
1100452241
|
[1] |
BUSH
|
|
| 14. |
1100022822
|
[2] |
O-RING
|
|
| 15. |
1301163001
|
[3] |
O-RING 1B P10 9.8×1.9
|
|
| 15. |
1301163001
|
[1] |
O-RING 1B P10 9.8×1.9
|
|
| 16. |
1100026237
|
[2] |
RING;SQUARE
|
|
| 16. |
1100026237
|
[1] |
RING;SQUARE
|
|
| 17. |
1100219199
|
[2] |
RING;SQUARE
|
|
| 18. |
1100452819
|
[4] |
BOLT;HEX M10×95L
|
|
| 18. |
1301602001
|
[1] |
BOLT;HEX M10×90L
|
|
| 19. |
1301588006
|
[2] |
BOLT;HEX SOCKET M10×25L
|
|
| 2. |
1100570835
|
[1] |
FRAME;FRONT
|
|
| 20. |
1100022804
|
[4] |
PIN;PARALLEL
|
|
| 20. |
1100022804
|
[2] |
PIN;PARALLEL
|
|
| 24. |
1300053004
|
[1] |
O-RING 18.77×1.78
|
|
| 25. |
1300073008
|
[2] |
O-RING
|
|
| 26. |
1300205003
|
[1] |
O-RING 37.77×2.62
|
|
| 27. |
1300038005
|
[1] |
O-RING
|
|
| 3. |
1100448792
|
[1] |
CASE;GEAR
|
|
| 3. |
1100688514
|
[1] |
CASE;GEAR
|
|
| 5. |
1100530194
|
[1] |
GEAR;DRIVING
|
|
| 5. |
1100572556
|
[1] |
GEAR;DRIVING
|
|
| 6. |
1100338291
|
[1] |
GEAR;IDLE
|
|
| 6. |
1100567619
|
[1] |
GEAR;IDLE
|
|
| 7. |
4100343731
|
[2] |
SIDE PLATE ASS'Y
|
|
| 7. |
4100540519
|
[2] |
SIDE PLATE ASS'Y
|
|
