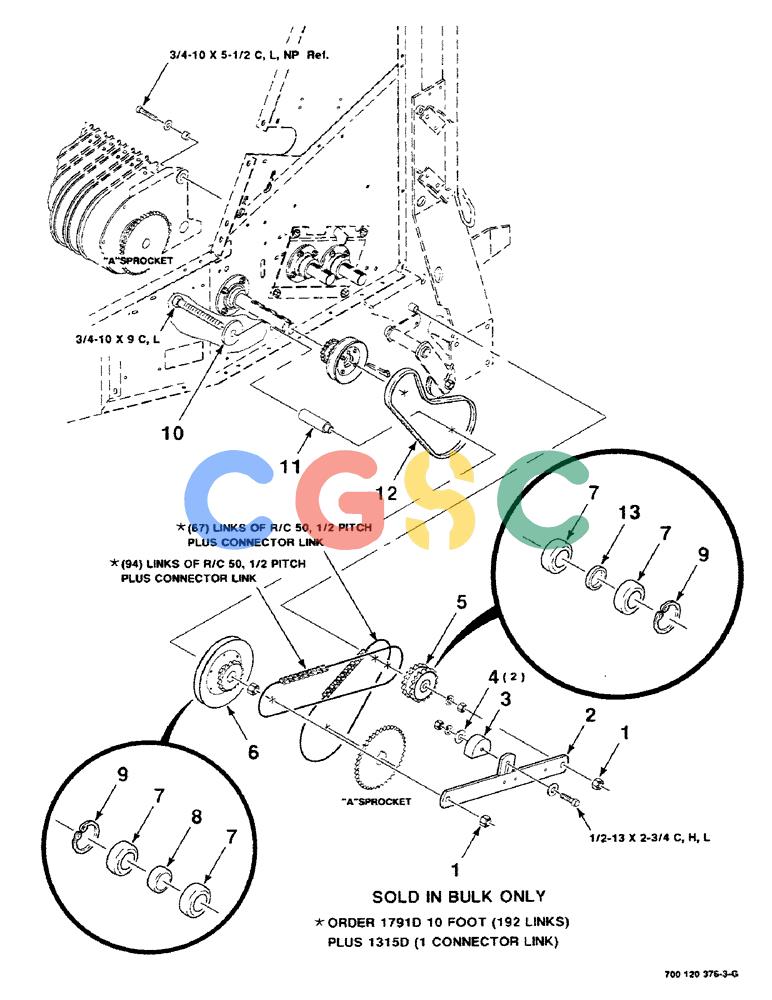

凯斯零件查询(8430) - CASE IH ROUND BALER (1/88-12/00) (2-18) - DRIVE ASSEMBLY (PICKUP) Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
810 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
704569
|
[2] |
NUT
|
CAS
3/4-10 HEX JAM NUT Superseded by part number: 86632557
|
| 2. |
700120458
|
[1] |
SUPPORT
|
HFI
WA Superseded by part number: 700131815
|
| 3. |
760728
|
[1] |
BLOCK ASSY.
|
L
BLOCK - wood
|
| 4. |
705541
|
[2] |
WASHER,0.53" ID x 1.06" OD x 0.14" Thk
|
CAS
1/2 HARDENED PLAIN WASHER
|
| 5. |
700119908
|
[1] |
SPROCKET ASSY.
|
HFI
SPROCKET - double, 25 tooth (includes items 7, 9 and 13)
|
| 6. |
700120446
|
[1] |
SHEAVE
|
HFI
AND SPROCKET ASSEMBLY (includes items 7, 8 and 9)
|
| 7. |
712604
|
[4] |
BALL BEARING,0.7505" ID x 1.7805" OD x 0.61"
|
CAS
BEARING - cylindrical Superseded by part number: 87029275
|
| 8. |
700120450
|
[1] |
SPACER
|
HFI
|
| 9. |
740712
|
[2] |
OIL SEAL
|
CAS
RING - retaining Superseded by part number: 66967
|
| 10. |
6579106
|
[1] |
LARGE PLATE
|
CAS
WASHER - reinforcement Superseded by part number: 706579106
|
| 11. |
700120457
|
[1] |
SPACER
|
HFI
|
| 12. |
57604
|
[1] |
V-BELT
|
L
|
| 13. |
700119911
|
[1] |
SPACER
|
HFI
|
| . . |
703736
|
[1] |
BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5
|
CAS
1/2-13 x 2-3/4 C
|
| . . |
703389
|
[1] |
|
HFI
3/4-10 x 9 C Superseded by part number: 413-12144
|
| . . |
86516876
|
[1] |
1/2-13 H
|
COVER
|
| . . |
80679
|
[1] |
LOCK WASHER,1/20.507 CST ZND
|
NH
WASHER, LOCK, 1/2"
|
| . . |
705111
|
[1] |
LOCK WASHER,3/4"
|
CAS
3/4" Superseded by part number: 87340
|
