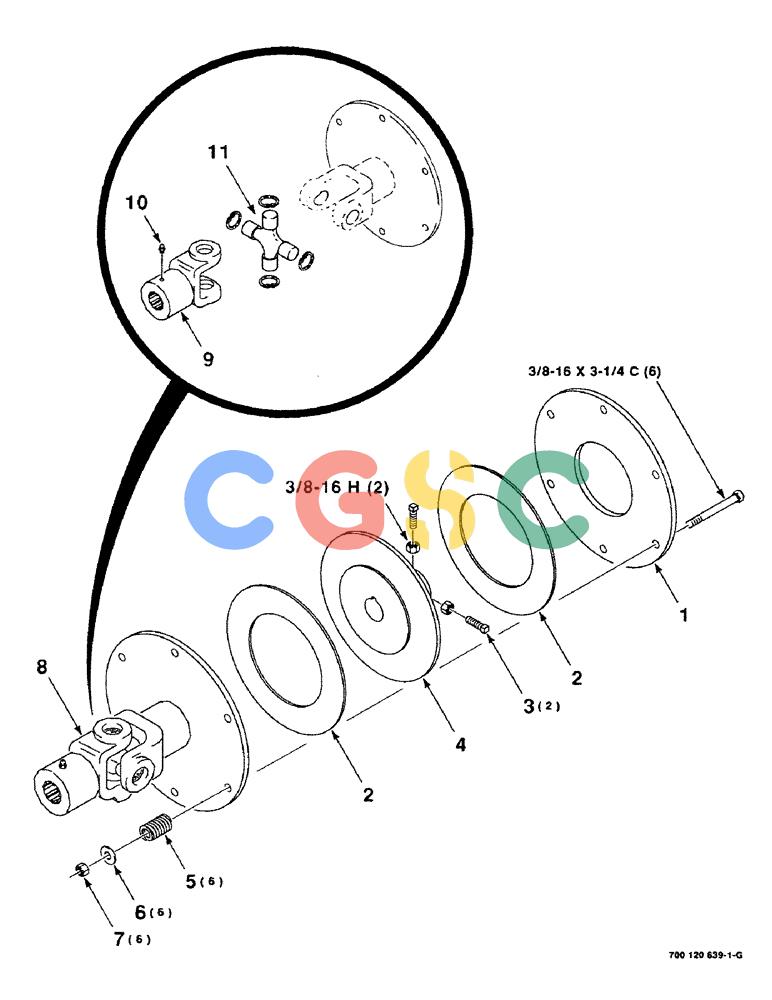

凯斯零件查询(8430) - CASE IH ROUND BALER (1/88-12/00) (2-16) - SLIP CLUTCH ASSEMBLY, (700120639 SLIP CLUTCH ASSEMBLY Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
882 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
6248173
|
[1] |
LARGE PLATE
|
IH
PLATE - pressure
|
| 2. |
700710945
|
[2] |
CLUTCH PLATE,126.75mm ID x 203.2mm OD x 3.18mm Thk
|
L
DISC - clutch
|
| 3. |
69211
|
[2] |
SET SCREW,Sq Hd, 3/8"-16 x 1"
|
CAS
3/8-16 x 1 CPSQHSS Superseded by part number: 84983
|
| 4. |
700120640
|
[1] |
DISC
|
HFI
WA
|
| 5. |
58107
|
[6] |
SPRING
|
IH
- compression
|
| 6. |
700709603
|
[6] |
WASHER,3/8"
|
CAS
3/8 WIDE PLAIN WASHER Superseded by part number: 80702
|
| 7. |
704122
|
[6] |
NUT
|
CAS
3/8-16 HHSN Superseded by part number: 131-463
|
| 8. |
700709259
|
[1] |
YOKE
|
CAS
U-JOINT ASSEMBLY (Includes Plate) Superseded by part number: 700724460
|
| 9. |
810812
|
[1] |
YOKE
|
CAS
- splined
|
| 10. |
77032
|
[1] |
FITTING
|
CAS
1/4-28 ZERK Superseded by part number: 88775
|
| 11. |
845198
|
[1] |
KIT
|
CAS
- journal repair Superseded by part number: 84355326
|
| . . |
873174
|
[6] |
BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5
|
CAS
3/8-16 x 3-1/4 C
|
| . . |
704023
|
[2] |
NUT,3/8"-16, G5
|
CAS
3/8-16 H Superseded by part number: 280136
|
