神钢零件查询(6D14) - MITSUBISHI DIESEL ENGINE - K904C, K907B, K907C & YS750-2 (1/77-12/06) (01-011) - CAMSHAFT Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
173 次

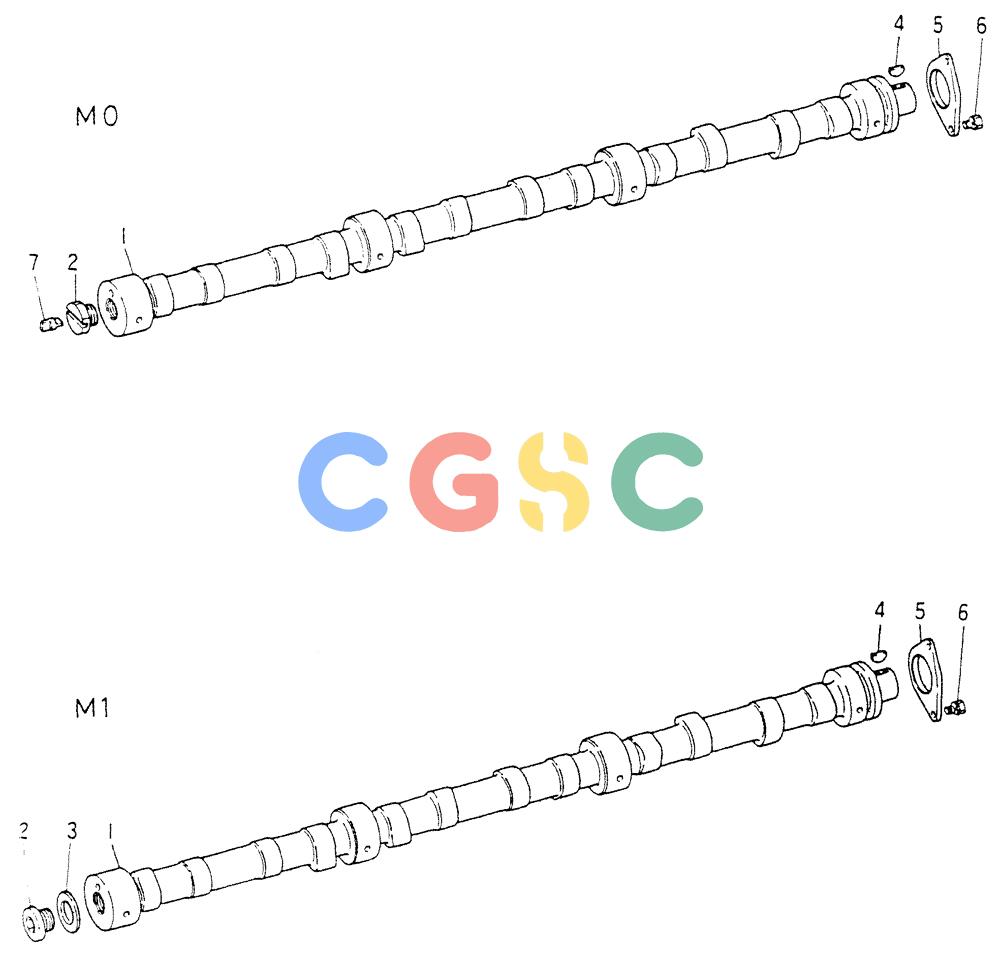

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME031591 | [1] | CAM CAMSHAFT | CAM CAMSHAFT |
| 2. | VAME038069 | [1] | COUPLING | KOBCONNECTOR, FOR M0 ONLY |
| . . | VAMH037137 | [1] | PLUG | KOBPLUG, FOR M1 ONLY |
| 3. | VAMF660068 | [1] | PACKING | KOBGASKET 20, FOR M1 ONLY Superseded by part number: VAF420220000 |
| 4. | VAMS476135 | [1] | KEY | KOBKEY, WOODRUFF 5X19 Superseded by part number: 132499A1 |
| 5. | VAME031768 | [1] | THRUST PLATE | KOBPLATE,THRUST Superseded by part number: VAME071319 |
| 6. | VAMF241252 | [2] | BOLT | KOBBOLT, W/WSR 8X18 |
| 7. | VAME038071 | [1] | FASTENER COUPLING,TACHO DRIVE, FOR M0 ONLY | FASTENER COUPLING,TACHO DRIVE, FOR M0 ONLY |
