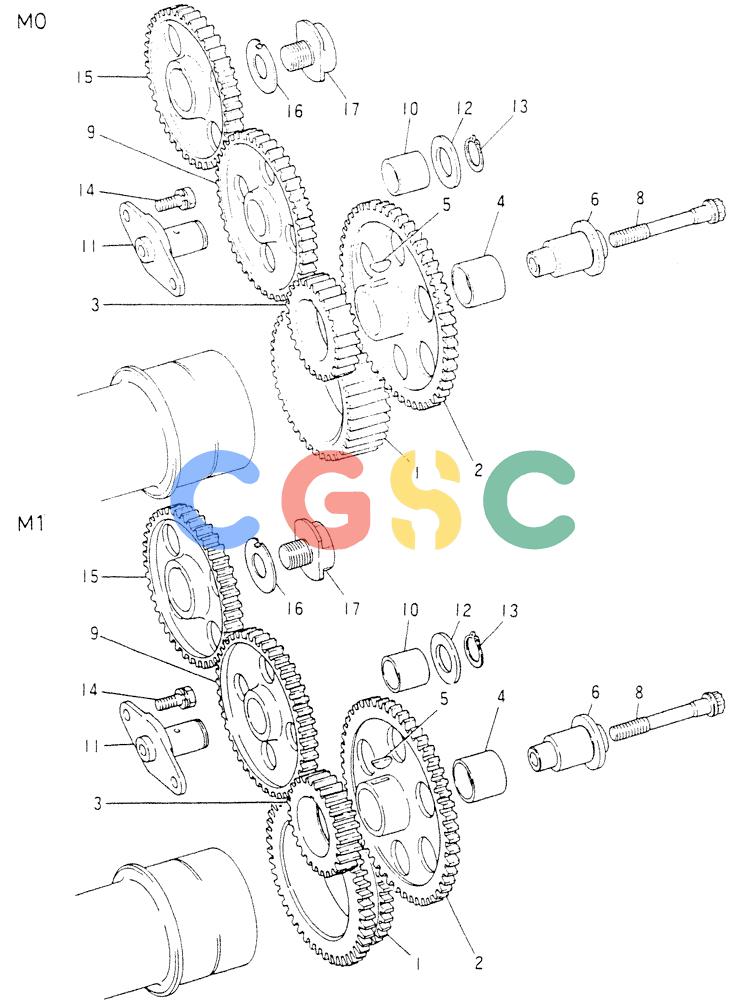

神钢零件查询(6D14) - MITSUBISHI DIESEL ENGINE - K904C, K907B, K907C & YS750-2 (1/77-12/06) (01-012[01]) - TIMING GEAR Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
758 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME032652 | [1] | DRIVING GEAR | KOBGEAR,CRANKSHAFT Z=42, (FOR M0 ONLY), Start Year: 01-DEC-82 |
| 1. | VAME032031 | [1] | DRIVING GEAR | KOBGEAR,CRANKSHAFT Z=42, (FOR M0 ONLY), Years: -01-NOV-82 Superseded by part number: VAME032652 |
| 1. | VAME032653 | [1] | GEAR,CRANKSHAFT Z=42, Z=48, (FOR M1 ONLY), Start Year: 01-DEC-82 | |
| 1. | VAME032029 | [1] | GEAR,CRANKSHAFT Z=42, Z=48, (FOR M1 ONLY), Years: -01-NOV-82 | |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONGEAR,CRANKSHAFT Z = 42, (FOR M2 ONLY) |
| 2-5. | VAME032650 | [1] | RING GEAR | KOBIDLER ASSY, N0.1(FOR M0, M1), Start Year: 01-MAR-83 |
| 2-5. | VAME032428 | [1] | GEAR ASSY, IDLER IDLER ASSY, N0.1 (FOR M0&M1) | GEAR ASSY, IDLER IDLER ASSY, N0.1 (FOR M0&M1) |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONIDLER,A N0.1 Z=52, FOR M0&M1 |
| 3. | NSS | [1] | NOT SOLD SEPARAT | CONIDLER,B NO.1 Z=26, FOR M0, M1 |
| 4. | VAME032146 | [1] | BUSHING | KOBBUSHING, FOR M0&M1 |
| 5. | VAMS476135 | [1] | KEY | KOBKEY,WOODRUFF 5X19, FOR M0 & M1 Superseded by part number: 132499A1 |
| 6. | VAME032145 | [1] | SHAFT | KOBSHAFT,IDLER NO.1, FOR M0 & M1 |
| 8. | VAMH000315 | [1] | SCREW | KOBBOLT 12X85, FOR M0&M1 |
| 9-10. | VAME032100 | [1] | IDLER | KOBIDLER ASSY NO.2 |
| 9. | NSS | [1] | NOT SOLD SEPARAT | CONIDLER, NO.2 Z=45 |
| 10. | VAME032035 | [1] | BUSHING | KOBBUSHING |
| 11. | VAME032039 | [1] | SHAFT SHAFT,IDLER NO.2 | SHAFT SHAFT,IDLER NO.2 |
| 12. | VAME032044 | [1] | WASHER WASHER,THRUST | WASHER WASHER,THRUST |
| 13. | VAMF522015 | [1] | SNAP RING | KOBRING,SNAP 25 |
| 14. | VAMF300842 | [2] | BOLT BOLT, W/WSR 10X22 | BOLT BOLT, W/WSR 10X22 |
| 15. | VAME032032 | [1] | GEAR | KOBGEAR, CAMSHAFT Z = 42 |
| 16. | VAME032046 | [1] | WASHER WASHER, CLAW | WASHER WASHER, CLAW |
| 17. | VAME032045 | [1] | BOLT BOLT | BOLT BOLT |
