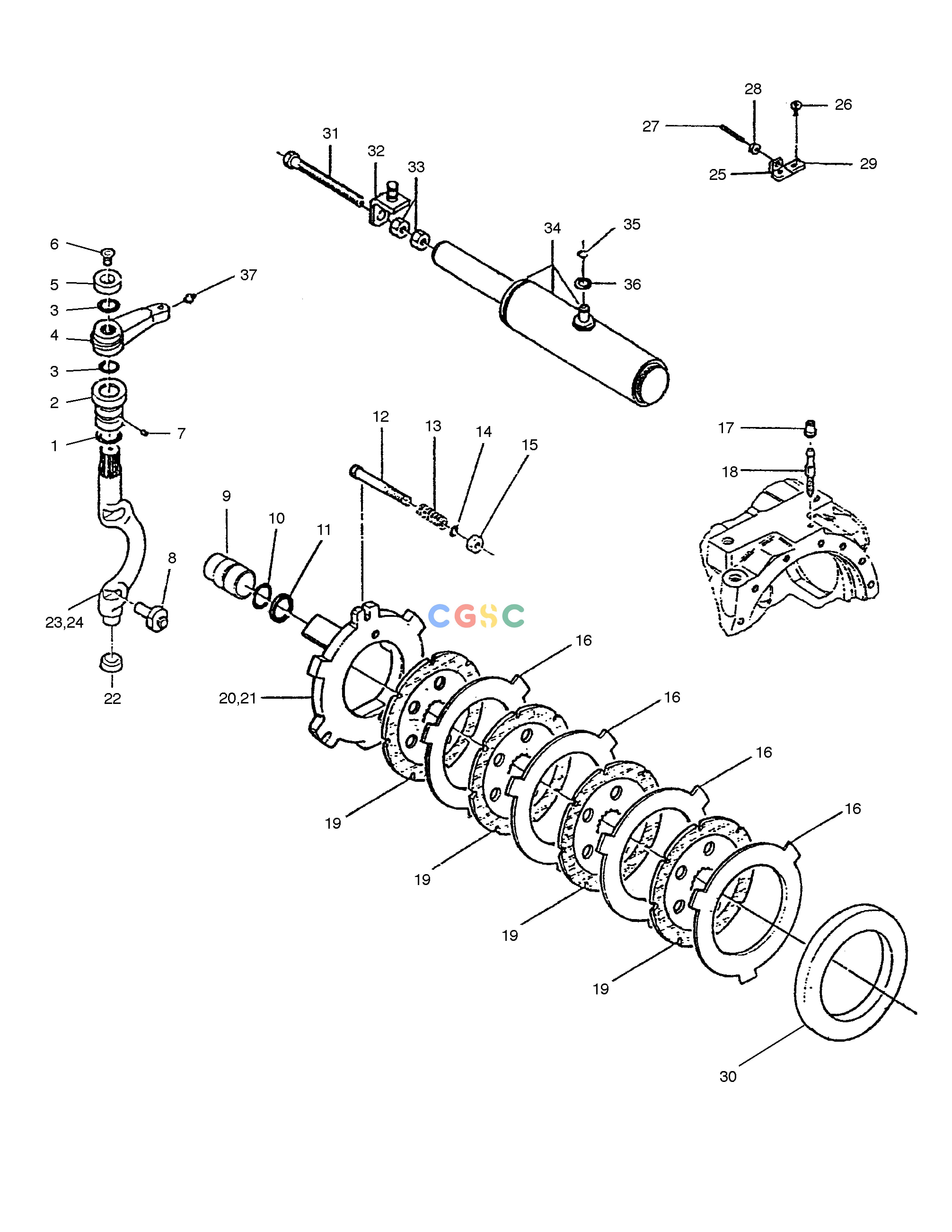

斗山零件查询REAR AXLE(4) B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
709 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
001.05.1125
|
[2] |
O-RING
|
|
| 10. |
738.07.009.01
|
[6] |
O-RING
|
|
| 11. |
738.07.010.01
|
[6] |
RING;BACK UP
|
|
| 12. |
171.07.009.02
|
[6] |
BOLT;ADJUSTING
|
|
| 13. |
171.07.010.01
|
[6] |
SPRING
|
|
| 14. |
001.05.1357
|
[6] |
O-RING
|
|
| 15. |
006.02.0193
|
[6] |
NUT
|
|
| 16. |
171.07.002.03
|
[8] |
DISC;INTERMEDIATE BRAKE
|
|
| 17. |
734.07.015.01
|
[2] |
PLUG
|
|
| 18. |
734.07.014.01
|
[2] |
BOLT;BLEEDING
|
|
| 19. |
171.07.610.03
|
[8] |
DISC;BRAKE
|
|
| 2. |
171.07.008.01
|
[2] |
BUSHING;REDUCTION
|
|
| 20. |
171.07.004.03
|
[1] |
DISC;BRAKE(LEFT)
|
|
| 21. |
171.07.004.04
|
[1] |
DISC;BRAKE(RIGHT)
|
|
| 22. |
015.01.0361
|
[2] |
PLUG
|
|
| 23. |
171.07.707.01
|
[1] |
LEVER(RIGHT)
|
|
| 24. |
171.07.706.01
|
[1] |
LEVER(LEFT)
|
|
| 25. |
171.07.036.01
|
[1] |
STOP(RIGHT)
|
|
| 26. |
016.06.2600
|
[4] |
BOLT
|
|
| 27. |
016.12.0454
|
[2] |
BOLT;GRUB
|
|
| 28. |
006.03.0195
|
[2] |
NUT
|
|
| 29. |
171.07.036.02
|
[1] |
STOP(LEFT)
|
|
| 3. |
001.05.1358
|
[4] |
O-RING
|
|
| 30. |
171.07.011.01
|
[2] |
SPACER
|
|
| 31. |
016.01.2758
|
[1] |
BOLT
|
|
| 32. |
171.07.703.01
|
[1] |
SUPPORT
|
|
| 33. |
006.03.1196
|
[2] |
NUT
|
|
| 34. |
171.07.620.03
|
[1] |
CYLINDER;WHEEL
|
|
| 35. |
002.01.0502
|
[2] |
CIRCLIP
|
|
| 36. |
734.07.031.01
|
[2] |
SPACER
|
|
| 37. |
008.01.0212
|
[2] |
FITTING;GREASE
|
|
| 4. |
738.07.026.07
|
[2] |
LEVER
|
|
| 5. |
171.07.007.01
|
[2] |
WASHER
|
|
| 6. |
016.06.0439
|
[2] |
BOLT;COUNTERSUNK
|
|
| 7. |
016.13.0488
|
[2] |
BOLT;GRUB
|
|
| 8. |
738.07.018.02
|
[4] |
PUSHER
|
|
| 9. |
171.07.003.02
|
[6] |
PISTON
|
|
