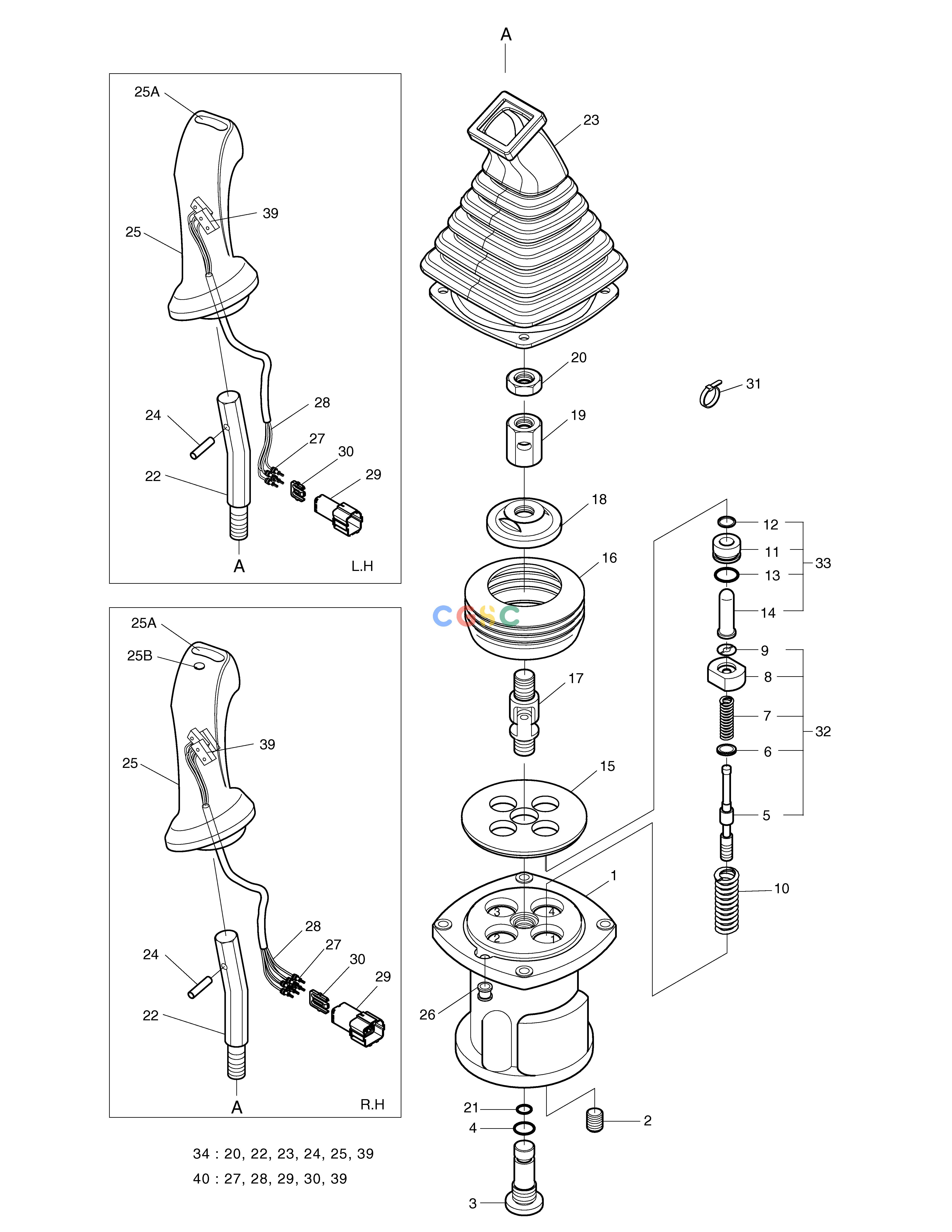

斗山零件查询REMOTE CONTROL VALVE B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
415 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420-00408
|
[1] |
VALVE;JOYSTICK(L)
|
420-00408A
|
| -. |
420-00408A
|
[1] |
REMOTE CONTROL VALVE(L.H)
|
|
| -. |
420-00431
|
[1] |
REMOTE CONTROL VALVE(R.H)
|
420-00431A
|
| -. |
420-00431A
|
[1] |
REMOTE CONTROL VALVE(R.H)
|
|
| 1. |
JA1G1001
|
[1] |
CASE
|
|
| 1. |
J95C1001
|
[1] |
CASE
|
|
| 10. |
J98K3001
|
[4] |
SPRING
|
|
| 11. |
J95C1008
|
[4] |
PLUG
|
|
| 12. |
RSY10
|
[4] |
SEAL;ROD
|
|
| 13. |
P0020
|
[4] |
O-RING
|
|
| 14. |
J95C1009
|
[4] |
ROD;PUSH
|
|
| 15. |
JA1G1002
|
[1] |
PLATE
|
|
| 16. |
J97A5018
|
[1] |
BOOT
|
|
| 17. |
J95C1012
|
[1] |
JOINT ASS`Y
|
|
| 18. |
JA1G1004
|
[1] |
PLATE;SWASH
|
1.412-00131
|
| 18. |
1.412-00131
|
[1] |
PLATE;SWASH
|
|
| 19. |
J95C1014
|
[1] |
NUT;HEX.
|
|
| 2. |
WPT18
|
[4] |
PLUG
|
|
| 20. |
HNM14-1
|
[1] |
NUT
|
|
| 21. |
P0010A
|
[1] |
O-RING
|
|
| 22. |
JA1D2001
|
[1] |
BAR;HANDLE
|
|
| 23. |
JA1D2002
|
[1] |
BOOT
|
|
| 24. |
SP0528
|
[1] |
PIN;SPRING
|
|
| 25. |
JA0E3026
|
[1] |
HANDLE ASS'Y
|
|
| 25. |
K9001224
|
[1] |
HANDLE ASS'Y(L.H)
|
|
| 25. |
J99K1011
|
[1] |
HANDLE ASS'Y
|
|
| 25. |
K9001131
|
[1] |
HANDLE ASS'Y(R.H)
|
|
| 25A. |
1.161-00021
|
[1] |
CAP;PEANUT
|
|
| 25A. |
1.161-00021
|
[1] |
CAP;PEANUT
|
|
| 25B. |
1.161-00017
|
[1] |
CAP;ROUND
|
|
| 26. |
JA1G1003
|
[1] |
BUSHING
|
|
| 27. |
NA01264
|
[5] |
TERMINAL
|
|
| 28. |
NA01345
|
[5] |
WIRE;SEAL
|
|
| 29. |
NA00528
|
[1] |
CARTER
|
|
| 3. |
J95C1002
|
[1] |
PLUG
|
|
| 30. |
NA00519
|
[1] |
|
|
| 31. |
J97A1003
|
[10] |
BOOT(L.H)
|
|
| 32. |
JA1J2001
|
[1] |
SPOOL KIT
|
K9001226
|
| 32. |
K9001226
|
[1] |
SPOOL KIT
|
|
| 33. |
JA1G3002
|
[4] |
PLUG KIT
|
1.181-00085
|
| 33. |
1.181-00085
|
[4] |
PLUG KIT
|
|
| 34. |
JA2E1001
|
[1] |
HANDLE KIT
|
|
| 34. |
K9001228
|
[1] |
HANDLE KIT(L.H)
|
|
| 34. |
JA2L2001
|
[1] |
KIT;HANDLE (R.H)
|
|
| 34. |
K9001140
|
[1] |
KIT;HANDLE(L.H)
|
|
| 39. |
NA01260
|
[2] |
|
|
| 39. |
NA01261
|
[3] |
|
|
| 4. |
P0014
|
[1] |
O-RING
|
|
| 40. |
K9001001
|
[1] |
SWITCH ASS'Y
|
|
| 40. |
K9001002
|
[1] |
SWITCH ASS'Y
|
|
| 5. |
J95C1003
|
[4] |
SPOOL
|
|
| 6. |
J95C1004
|
[4] |
SHIM
|
|
| 7. |
J95C1005
|
[4] |
SPRING
|
|
| 8. |
J95C1006
|
[4] |
SEAT;SPRING
|
|
| 9. |
J24D2011
|
[4] |
STOPPER
|
|
