斗山零件查询ROTARY GROUP - HYDR. SECTION B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
994 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
09603779
|
[1] |

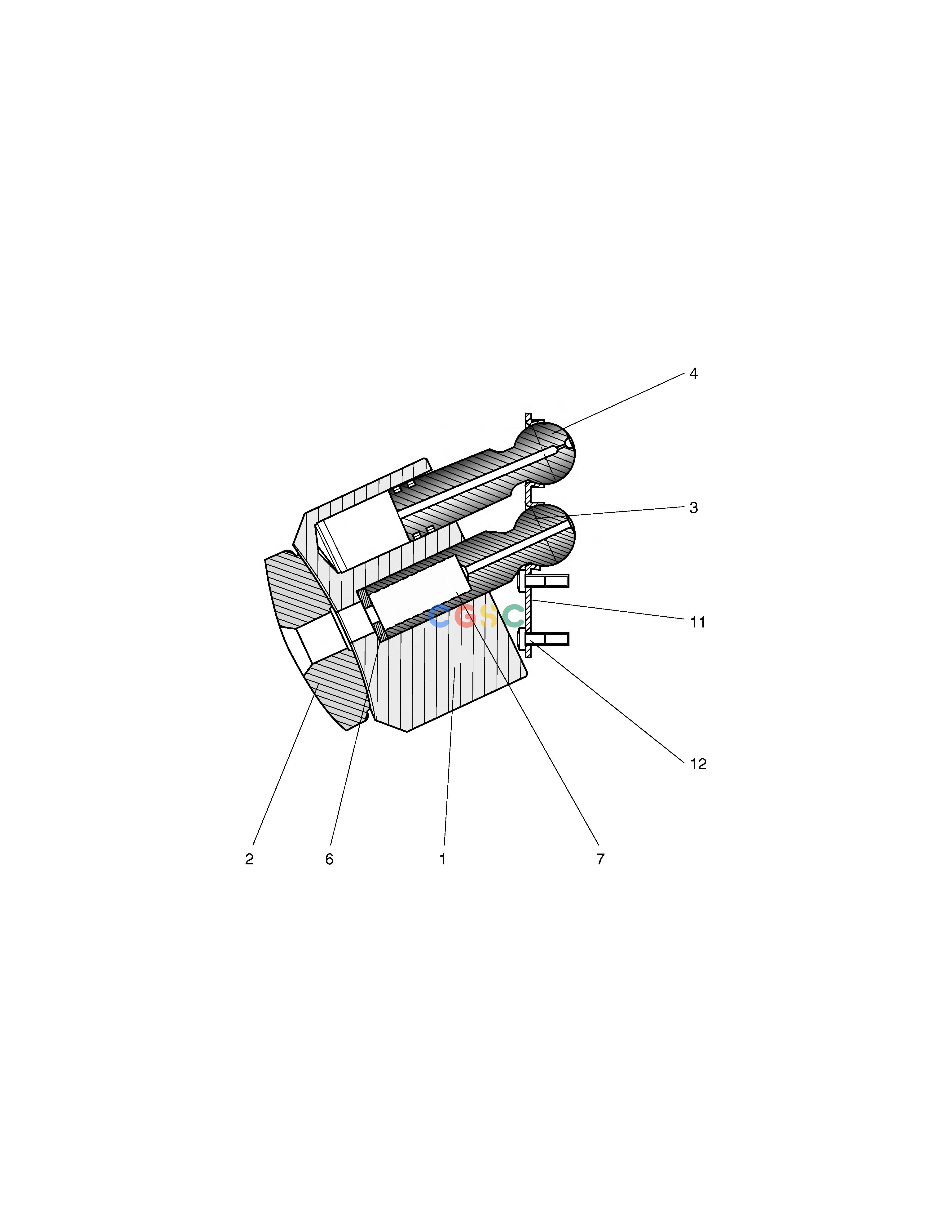

ROTARY GROUP
|
|
| 1. |
09421289
|
[1] |
CYLINDER
|
|
| 11. |
09062847
|
[1] |
PLATE;RETAINING
|
|
| 12. |
09831106
|
[14] |
SCREW;PAN HEAD
|
|
| 2. |
09921787
|
[1] |
LENS;CONTROL
|
|
| 3. |
09921508
|
[1] |
PIN;CENTER
|
|
| 4. |
02021902
|
[7] |
PISTON(WITH PISTON RINGS)
|
|
| 6. |
09921526
|
[1] |
SHIM;ADJUSTMENT
|
|
| 6. |
09921527
|
[1] |
SHIM;ADJUSTMENT
|
|
| 6. |
09921528
|
[1] |
SHIM;ADJUSTMENT
|
|
| 6. |
09921529
|
[1] |
SHIM;ADJUSTMENT
|
|
| 6. |
09921530
|
[1] |
SHIM;ADJUSTMENT
|
|
| 6. |
09921534
|
[1] |
SHIM;ADJUSTMENT
|
|
| 7. |
09921507
|
[1] |
SPRING;PRESSURE
|
|
