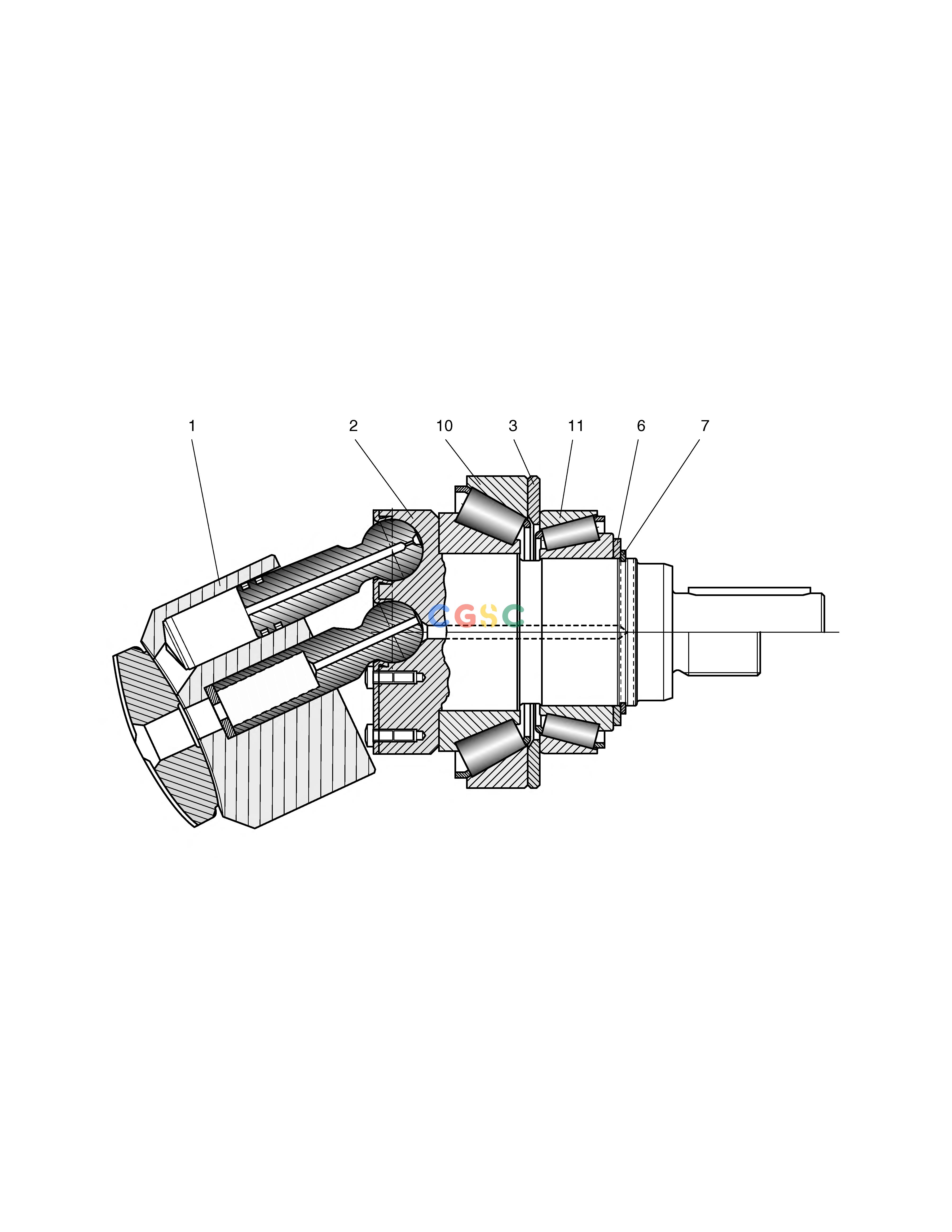

斗山零件查询ROTARY GROUP B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
478 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
09604145
|
[1] |
ROTARY GROUP
|
|
| 1. |
09603779
|
[1] |
ROTARY GROUP
|
|
| 10. |
09154382
|
[1] |
BEARING;TAPERED ROLLER
|
|
| 11. |
09154293
|
[1] |
BEARING;TAPERED ROLLER
|
|
| 2. |
09921893
|
[1] |
SHAFT;DRIVE
|
|
| 3. |
09651516
|
[1] |
SHIM
|
|
| 6. |
09921488
|
[1] |
PLATE;BACK-UP
|
|
| 6. |
09921489
|
[1] |
PLATE;BACK-UP
|
|
| 6. |
09921490
|
[1] |
PLATE;BACK-UP
|
|
| 6. |
09921491
|
[1] |
PLATE;BACK-UP
|
|
| 6. |
09921492
|
[1] |
PLATE;BACK-UP
|
|
| 6. |
09921493
|
[1] |
PLATE;BACK-UP
|
|
| 6. |
09921494
|
[1] |
PLATE;BACK-UP
|
|
| 6. |
09921495
|
[1] |
PLATE;BACK-UP
|
|
| 7. |
09083365
|
[1] |
RING;RETAINING
|
|
