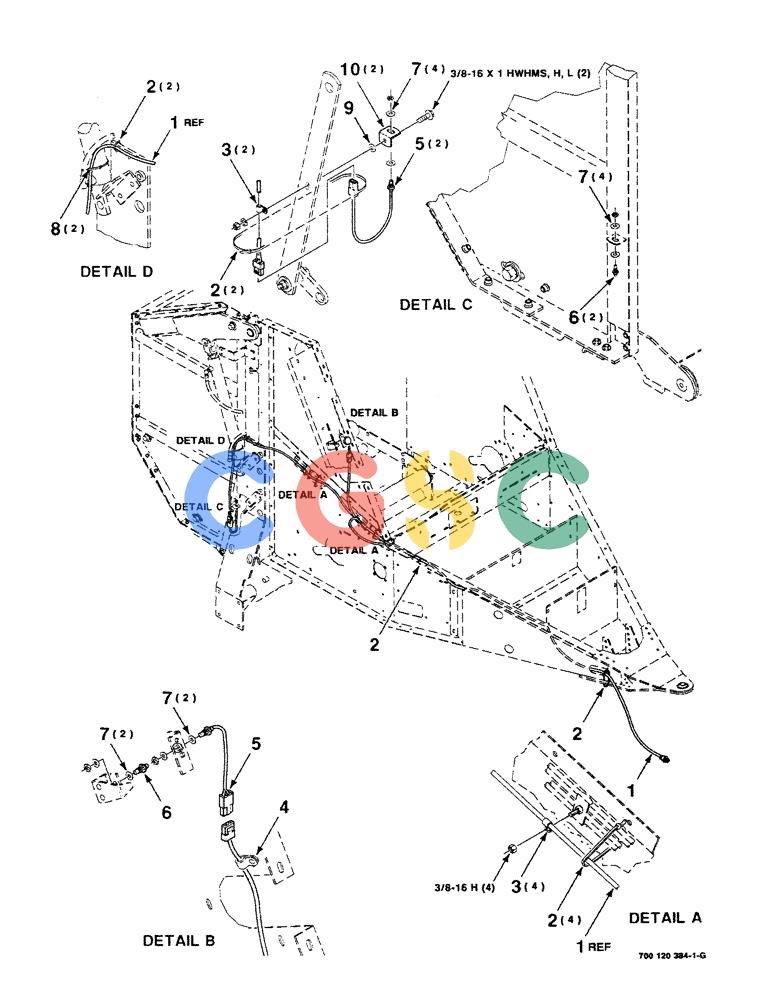

凯斯零件查询(8430) - CASE IH ROUND BALER (1/88-12/00) (4-02) - ELECTRICAL ASSEMBLY Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
411 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700709236
|
[1] |
HARNESS
|
CAS
- wiring
|
| 2. |
722470
|
[10] |
MOUNTING CLIP
|
CAS
TIE - cable Superseded by part number: 529070
|
| 3. |
751628
|
[6] |
CLAMP
|
CAS
Superseded by part number: 675162
|
| 4. |
700707010
|
[1] |
CLAMP
|
CAS
Superseded by part number: 86572009
|
| 5. |
700119161
|
[3] |
SWITCH
|
L
ASSEMBLY
|
| 6. |
700710211
|
[3] |
ACTUATOR
|
IH
|
| 7. |
700710190
|
[12] |
WASHER
|
CAS
|
| 8. |
529070
|
[2] |
CABLE TIE,368.3mm L
|
NH
TIE - cable
|
| 9. |
705533
|
[1] |
WASHER
|
NNA
3/8 HARDENED PLAIN WASHER Superseded by part number: 496-11041, 496-11041, 80702
|
| 10. |
700120649
|
[2] |
ANGLE
|
HFI
|
| . . |
7883382
|
[2] |
BOLT,Hex, 3/8" - 16 x 1", Gr 120M
|
CAS
3/8-16 x 1 HWHMS Superseded by part number: 87034804
|
| . . |
704023
|
[6] |
NUT,3/8"-16, G5
|
CAS
3/8-16 H Superseded by part number: 280136
|
| . . |
705038
|
[2] |
CONTROL VALVE
|
CAS
3/8" Superseded by part number: 492-11038
|
