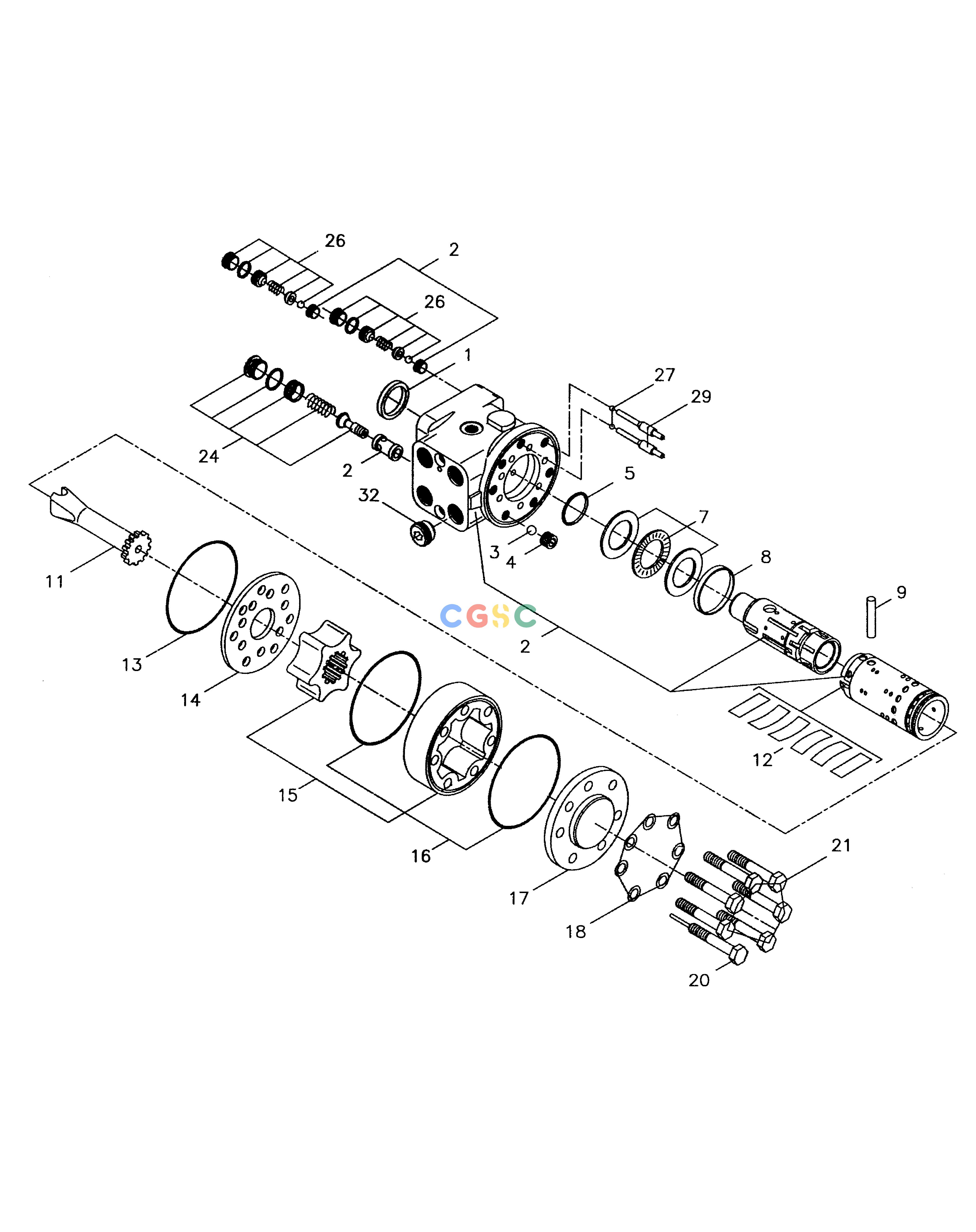

斗山零件查询STEERING VALVE B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
235 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
150N4038
|
[1] |
SEAL KIT(1.5.13.16.18)
|
|
| -. |
2420-9579
|
[1] |
STEERING VALVE
|
|
| 1. |
633B9002
|
[1] |
RING;DUST SEAL
|
|
| 11. |
150-0844
|
[1] |
SHAFT;CARDON
|
|
| 12. |
150-4265
|
[1] |
SET OF SPRINGS
|
|
| 13. |
633B1202
|
[1] |
O-RING
|
|
| 14. |
150N0610
|
[1] |
PLATE;DISTRIBUTOR
|
|
| 15. |
150-4175
|
[1] |
GEAR;WHEEL SET
|
|
| 16. |
633B1173
|
[2] |
O-RING
|
|
| 17. |
150-0328
|
[1] |
COVER;END
|
|
| 18. |
648X2481
|
[7] |
WASHER
|
|
| 2. |
NA00532
|
[1] |
|
|
| 20. |
150-0323
|
[1] |
SCREW(WITH PIN)
|
|
| 21. |
681X1580
|
[6] |
SCREW
|
|
| 24. |
150-4281
|
[1] |
COMPLETE RELIEF VALVE
|
|
| 26. |
150-4268
|
[2] |
SHOCK VALVE
|
|
| 27. |
689X1005
|
[2] |
BALL
|
|
| 29. |
150-4080
|
[2] |
PIN;ROLLED
|
|
| 3. |
689X1031
|
[1] |
BALL
|
|
| 32. |
150N4093
|
[1] |
VALVE;CHECK
|
|
| 4. |
150-0304
|
[1] |
BUSHING;THREAD
|
|
| 5. |
150N4014
|
[1] |
O-RING
|
|
| 7. |
150-4262
|
[1] |
BEARING ASS'Y
|
|
| 8. |
150-0310
|
[1] |
RING
|
|
| 9. |
150-0305
|
[1] |
PIN;CROSS
|
|
