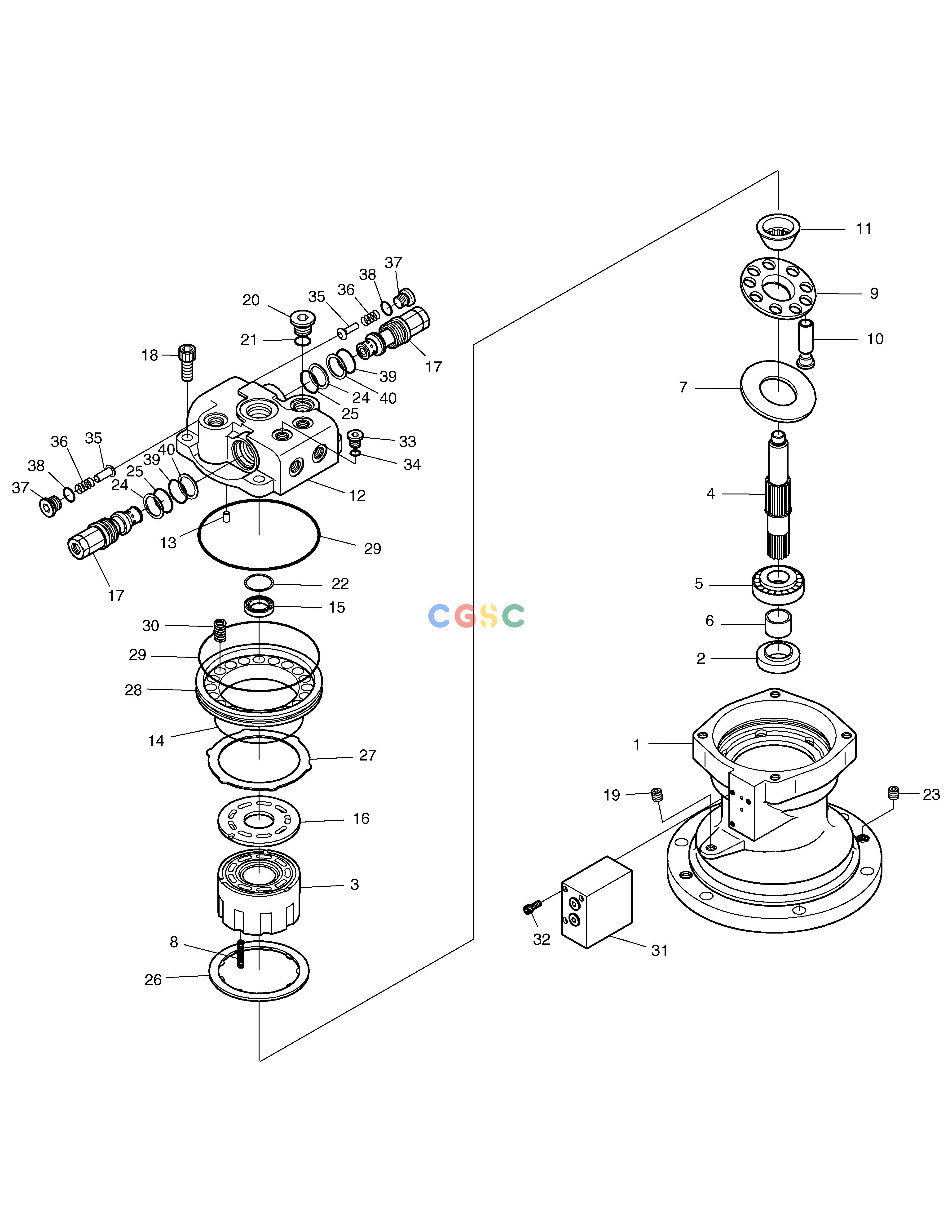

斗山零件查询SWING MOTOR B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
522 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
2401-6250K
|
[1] |
SEAL KIT
|
|
| -. |
401-00307B
|
[1] |
MOTOR;SWING
|
|
| 1. |
JA0F1001
|
[1] |
BODY
|
|
| 10. |
J43A108
|
[9] |
PISTON SHOE ASS'Y
|
|
| 11. |
MS50D106
|
[1] |
GUIDE;BALL
|
|
| 12. |
JA0F1002A
|
[1] |
COVER;REAR
|
|
| 13. |
J43A110
|
[2] |
PIN
|
|
| 14. |
AS568-252
|
[1] |
O-RING
|
|
| 15. |
TB30202
|
[1] |
BEARING;TAPER
|
|
| 16. |
MS50D108
|
[1] |
PLATE;VALVE
|
|
| 17. |
JA0F1003
|
[2] |
RELIEF VALVE ASS'Y
|
|
| 18. |
WBM1230
|
[4] |
BOLT;SOCKET M12X30
|
|
| 19. |
WPT12
|
[1] |
PLUG
|
|
| 2. |
0SAP1709
|
[1] |
SEAL;OIL
|
|
| 20. |
MS50D110
|
[1] |
PLUG
|
|
| 21. |
P0014
|
[1] |
O-RING
|
|
| 22. |
S343000-5
|
[1] |
SHIM D34XD30X0.5T
|
|
| 23. |
WPT14
|
[3] |
PLUG PT1/4
|
|
| 24. |
BURP026
|
[2] |
RING;BACK UP P26
|
|
| 25. |
P0026
|
[2] |
O-RING
|
|
| 26. |
MS50S204
|
[1] |
PLATE;FRICTION
|
|
| 27. |
MS50S205
|
[1] |
PLATE
|
|
| 28. |
MS50S206
|
[1] |
PISTON;PARKING
|
|
| 29. |
AS568-254
|
[2] |
O-RING
|
|
| 3. |
MS50S202
|
[1] |
BLOCK;CYLINDER
|
|
| 30. |
MS50S207
|
[18] |
SPRING
|
|
| 31. |
MS50S208
|
[1] |
VALVE;TIME DELAY
|
|
| 32. |
WBM0675
|
[3] |
BOLT;WRENCH
|
|
| 33. |
MS50S209
|
[2] |
PLUG
|
|
| 34. |
P0011
|
[2] |
O-RING
|
|
| 35. |
JA0F1004
|
[2] |
VALVE
|
|
| 36. |
JA0F1005
|
[2] |
SPRING
|
|
| 37. |
JA0F1006
|
[2] |
PLUG
|
|
| 38. |
P0018
|
[2] |
O-RING
|
|
| 39. |
A0118
|
[2] |
O-RING
|
|
| 4. |
MS50D103
|
[1] |
SHAFT
|
|
| 40. |
BURP118
|
[2] |
RING;BACK UP
|
|
| 5. |
TB30305C
|
[1] |
BEARING;TAPER
|
|
| 6. |
BU302520
|
[1] |
BUSH D30XD20X201
|
|
| 7. |
J43A102
|
[1] |
PLATE;SHOE
|
|
| 8. |
MS50D104
|
[9] |
SPRING
|
|
| 9. |
MS50D105
|
[1] |
PLATE;SET
|
|
