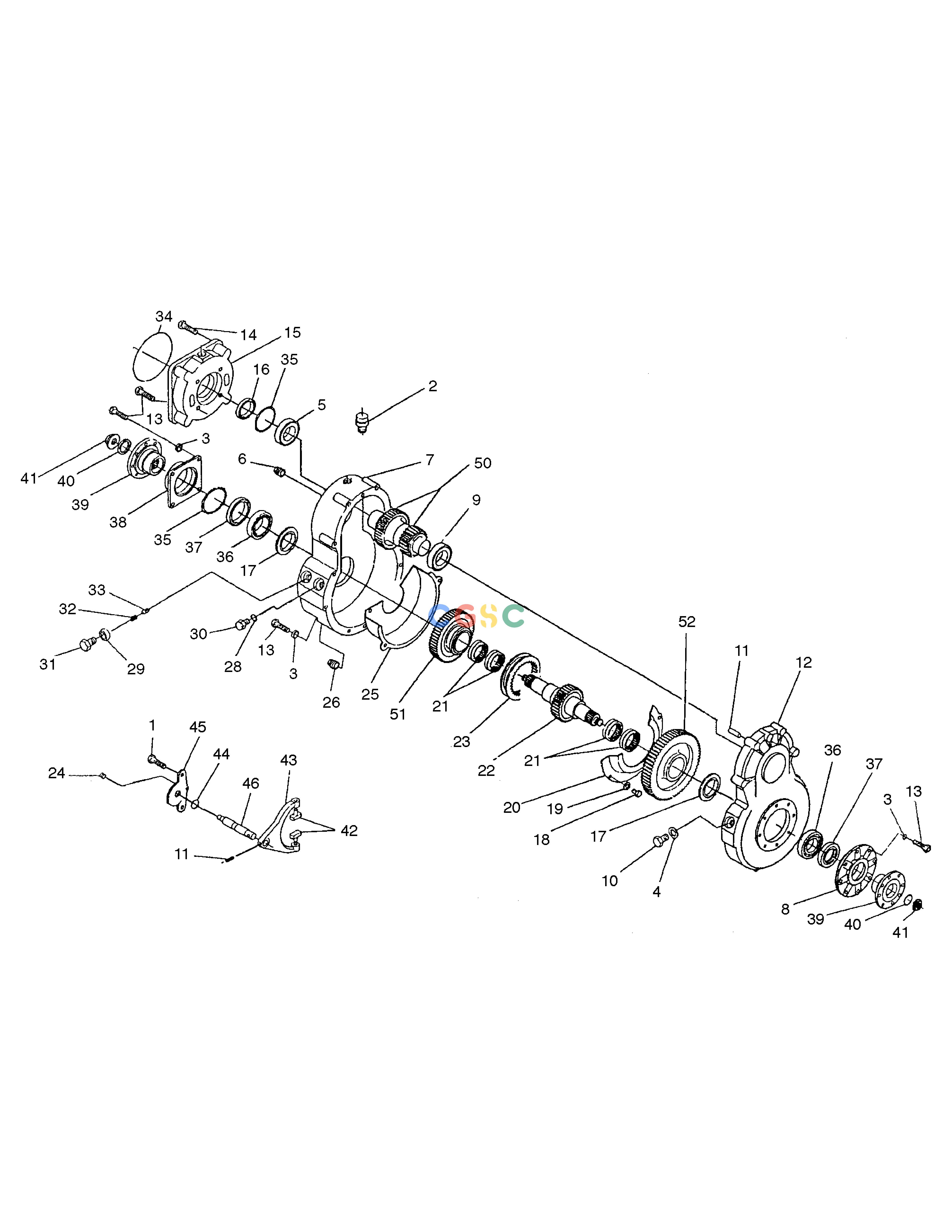

斗山零件查询TRANSMISSION B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
658 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
016.01.1002
|
[2] |
BOLT
|
|
| 10. |
016.10.2629
|
[1] |
BOLT
|
|
| 11. |
014.02.2988
|
[2] |
DOWEL
|
|
| 12. |
357.14.100.15
|
[1] |
HOUSING
|
|
| 13. |
016.01.0376
|
[12] |
BOLT;HEX.
|
|
| 14. |
016.01.0378
|
[4] |
BOLT;HEX.
|
|
| 15. |
357.14.102.03
|
[1] |
COVER
|
|
| 16. |
001.01.0018
|
[1] |
SEAL
|
|
| 17. |
357.14.111.03
|
[2] |
SPACER
|
|
| 18. |
016.01.0369
|
[2] |
BOLT;HEX.
|
|
| 19. |
011.01.0221
|
[2] |
WASHER;SPRING
|
|
| 2. |
357.14.022.01
|
[1] |
VELT
|
|
| 20. |
357.14.133.01
|
[1] |
SHEET
|
|
| 21. |
005.13.2906
|
[4] |
BEARING;NEEDLE
|
|
| 22. |
357.14.124.01
|
[1] |
SHAFT;OUTPUT
|
|
| 23. |
355.14.101.02
|
[1] |
SELECTOR;CHANGE
|
|
| 24. |
016.08.1406
|
[1] |
BOLT
|
|
| 25. |
357.14.132.01
|
[1] |
SHEET
|
|
| 26. |
819.01.610.01
|
[1] |
PLUG;MAGNET
|
|
| 28. |
011.07.1478
|
[1] |
WASHER;SEAL
|
|
| 29. |
717.14.047.01
|
[1] |
SPACER
|
|
| 3. |
011.04.1318
|
[12] |
WASHER;SPRING
|
|
| 30. |
932.03.019.01
|
[1] |
PLUG
|
|
| 31. |
717.14.052.01
|
[1] |
BOLT
|
|
| 32. |
819.03.042.01
|
[1] |
SPRING
|
|
| 33. |
932.08.033.01
|
[1] |
PUSHER
|
|
| 34. |
001.05.2918
|
[1] |
O-RING
|
|
| 35. |
013.01.0311
|
[1] |
SHIM
|
|
| 35. |
013.01.0311
|
[1] |
SHIM
|
|
| 35. |
013.01.0313
|
[1] |
SHIM
|
|
| 35. |
013.01.0314
|
[1] |
SHIM
|
|
| 35. |
013.01.1241
|
[1] |
SHIM
|
|
| 35. |
013.01.3177
|
[1] |
SHIM
|
|
| 36. |
005.01.0118
|
[2] |
BEARING;BALL
|
|
| 37. |
001.03.0621
|
[2] |
SEAL
|
|
| 38. |
357.14.103.03
|
[1] |
COVER
|
|
| 39. |
357.14.141.03
|
[2] |
FLANGE
|
|
| 4. |
011.07.2763
|
[1] |
WASHER
|
|
| 40. |
001.05.0044
|
[2] |
O-RING
|
|
| 41. |
357.14.139.01
|
[2] |
NUT
|
|
| 42. |
355.14.056.01
|
[2] |
PIN;SLIDING
|
|
| 43. |
357.14.115.01
|
[1] |
FORK;SELECTOR
|
|
| 44. |
001.09.3070
|
[1] |
SEAL
|
|
| 45. |
357.14.118.02
|
[1] |
PLATE;COVER
|
|
| 46. |
357.14.116.03
|
[1] |
SHAFT;SELCTOR
|
|
| 5. |
005.01.0121
|
[1] |
BEARING;BALL
|
|
| 50. |
357.14.705.17
|
[1] |
SHAFT;INPUT
|
|
| 51. |
357.14.109.05
|
[1] |
GEAR
|
|
| 52. |
357.14.107.01
|
[1] |
GEAR
|
|
| 6. |
808.01.017.01
|
[1] |
PLUG
|
|
| 7. |
357.14.101.14
|
[1] |
COVER
|
|
| 8. |
357.14.125.01
|
[1] |
COVER
|
|
| 9. |
005.01.0119
|
[1] |
BEARING;BALL
|
|
