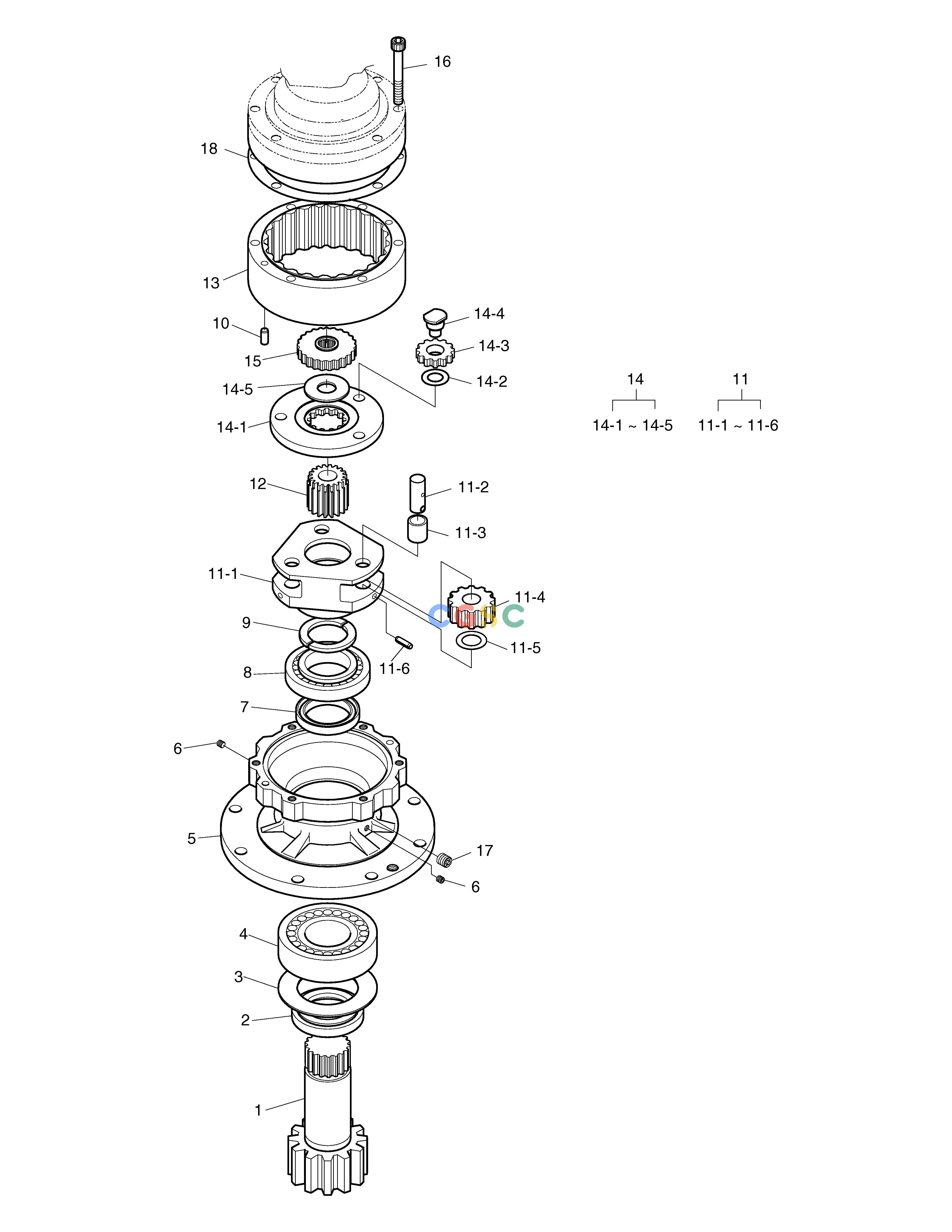

斗山零件查询SWING REDUCTION GEAR B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
748 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
404-00084
|
[1] |
REDUCTION GEAR ASS'Y
|
|
| 1. |
2405-1009
|
[1] |
SHAFT
|
|
| 10. |
2123-1778
|
[1] |
PIN
|
|
| 11. |
2432-1014
|
[1] |
CARRIER ASS'Y 2
|
|
| 11-1. |
2514-1010
|
[1] |
CARRIER(NO.2)
|
|
| 11-2. |
2112-1205
|
[3] |
SHAFT 2
|
|
| 11-3. |
2110-1204
|
[3] |
BUSH
|
|
| 11-4. |
2404-1044
|
[3] |
PLANETARY(NO.2)
|
|
| 11-5. |
2412-1029
|
[3] |
PLATE;THRUST
|
|
| 11-6. |
S5741162
|
[3] |
PIN;SPRING
|
|
| 12. |
2404-1040
|
[1] |
GEAR;SUN 2
|
|
| 13. |
2404-1041
|
[1] |
GEAR;RING
|
|
| 14. |
2232-1015
|
[1] |
CARRIER ASS'Y 1
|
|
| 14-1. |
2230-6004
|
[1] |
CARRIER 1
|
|
| 14-2. |
2101-6021
|
[3] |
PLANETARY 1
|
|
| 14-3. |
2112-1203
|
[3] |
SHAFT 1
|
|
| 14-4. |
2412-1028
|
[3] |
PLATE;THRUST
|
|
| 14-5. |
2412-1027
|
[1] |
PLATE;THRUST
|
|
| 15. |
2101-6019
|
[1] |
GEAR;SUN 1
|
|
| 16. |
2120-1445
|
[6] |
BOLT;SOCKET M12X1.75X95
|
|
| 17. |
2181-1116D6
|
[1] |
PLUG PT3/8
|
|
| 18. |
2180-1220
|
[1] |
GASKET
|
|
| 2. |
2114-1632
|
[1] |
COLLAR
|
|
| 3. |
2412-1026
|
[1] |
PLATE
|
|
| 4. |
2109-9041
|
[1] |
BEARING;TAPER
|
|
| 5. |
2402-1033B
|
[1] |
CASE;GEAR
|
|
| 6. |
2181-1116D1
|
[1] |
PLUG
|
|
| 7. |
2180-9154
|
[2] |
SEAL;OIL D90XD65
|
|
| 8. |
2109-9042
|
[1] |
BEARING;TAPER
|
|
| 9. |
2114-1633
|
[1] |
COLLAR
|
|
