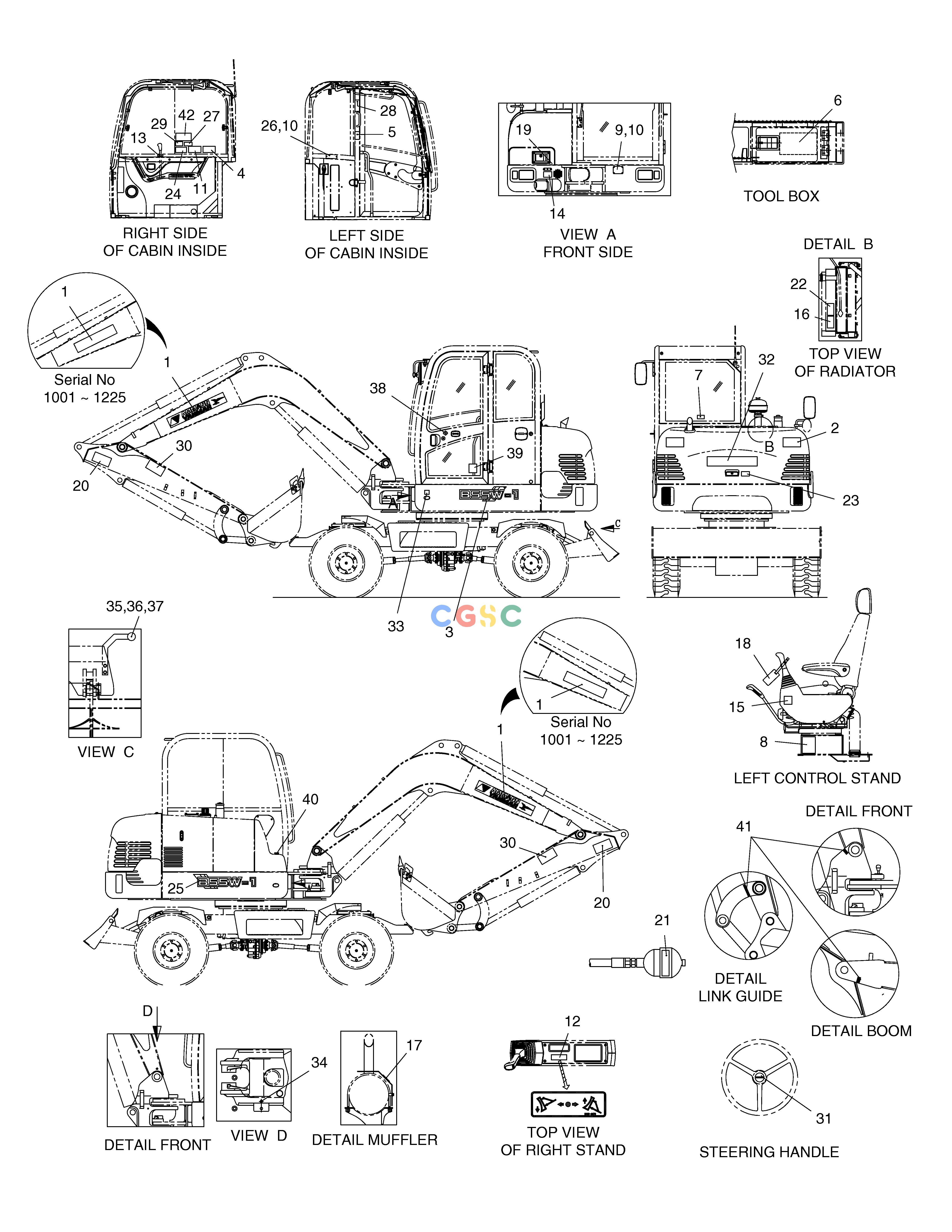

斗山零件查询NAME PLATE B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
856 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
190-01045G
|
[-] |
NAME PLATE ASS'Y
|
|
| 1. |
190-00152
|
[2] |
PLATE;NAME
|
K1025620
|
| 1. |
K1025620
|
[2] |
PLATE;NAME
|
|
| 10. |
2122-1002D2
|
[6] |
RIVET
|
|
| 11. |
190-00092
|
[1] |
PLATE;NAME
|
|
| 12. |
2190-2878
|
[1] |
PLATE;NAME
|
|
| 13. |
190-00001B
|
[1] |
PLATE;NAME
|
|
| 14. |
190-01081
|
[1] |
PLATE;NAME
|
|
| 15. |
2190-3309
|
[1] |
PLATE;NAME(LEVER LOCK)
|
|
| 16. |
190-00557
|
[1] |
PLATE;NAME
|
|
| 17. |
190-00161
|
[1] |
PLATE;NAME
|
|
| 18. |
190-00098
|
[1] |
PLATE;NAME
|
|
| 19. |
190-00100
|
[1] |
PLATE;NAME(BATTERY)
|
|
| 2. |
190-00163
|
[2] |
PLATE;NAME
|
|
| 20. |
190-00155
|
[2] |
PLATE;NAME
|
|
| 21. |
190-00099
|
[4] |
PLATE;NAME
|
|
| 22. |
190-00097
|
[1] |
NAME PLATE
|
|
| 23. |
190-00095
|
[1] |
PLATE;NAME
|
|
| 24. |
190-01083
|
[1] |
PLATE;NAME
|
|
| 25. |
190-01047
|
[1] |
PLATE;NAME
|
|
| 26. |
190-01051
|
[1] |
PLATE;NAME
|
K1002394
|
| 26. |
K1002394
|
[1] |
PLATE;NAME
|
K1012599
|
| 26. |
K1012599
|
[1] |
PLATE;NAME
|
K1012599A
|
| 26. |
K1012599A
|
[1] |
PLATE;NAME
|
K1012599B
|
| 26. |
K1012599B
|
[1] |
PLATE;NAME
|
|
| 27. |
190-01079
|
[1] |
PLATE;NAME
|
190-01140
|
| 27. |
190-01140
|
[1] |
PLATE;NAME
|
|
| 28. |
190-01082
|
[1] |
PLATE;NAME
|
|
| 29. |
190-00156
|
[1] |
PLATE;NAME
|
|
| 3. |
190-01046
|
[1] |
PLATE;NAME
|
|
| 30. |
2190-2555A
|
[2] |
PLATE;NAME(SWING AREA)
|
|
| 31. |
190-01052
|
[1] |
PLATE;NAME
|
|
| 32. |
190-00153
|
[1] |
PLATE;NAME
|
|
| 33. |
190-00159
|
[1] |
PLATE;NAME
|
|
| 34. |
190-00367
|
[2] |
PLATE;NAME
|
|
| 35. |
S5102203
|
[2] |
WASHER
|
|
| 36. |
S3450823
|
[2] |
SCREW
|
|
| 37. |
190-00078
|
[2] |
REFLECTOR
|
|
| 38. |
2116-9003
|
[1] |
PLATE
|
|
| 39. |
190-01059D12
|
[1] |
PLATE;NAME
|
|
| 39. |
190-01059D11
|
[1] |
PLATE;NAME(SOUND POWER)
|
190-01059D9
|
| 39. |
190-01059D9
|
[1] |
PLATE;NAME
|
|
| 4. |
190-00096
|
[1] |
PLATE;NAME(ELEC. LINE)
|
|
| 40. |
190-01141
|
[1] |
PLATE;NAME
|
|
| 41. |
190-01191
|
[1] |
PLATE;NAME
|
|
| 42. |
190-01187
|
[1] |
PLATE;NAME
|
|
| 5. |
190-00094
|
[1] |
PLATE;NAME(CAUTION)
|
|
| 6. |
190-01048A
|
[1] |
PLATE;NAME
|
|
| 7. |
190-00101
|
[1] |
PLATE;NAME(HAMMER)
|
|
| 8. |
190-01049
|
[1] |
PLATE;NAME
|
|
| 9. |
2190-2850A
|
[1] |
PLATE;NAME(SERIAL)
|
K1005854A
|
| 9. |
K1005854A
|
[1] |
PLATE;NAME
|
K1011647A
|
| 9. |
K1011647A
|
[1] |
PLATE;NAME
|
K1011647B
|
| 9. |
K1011647B
|
[1] |
PLATE;NAME
|
|
