斗山零件查询SPARE PARTS B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
605 次

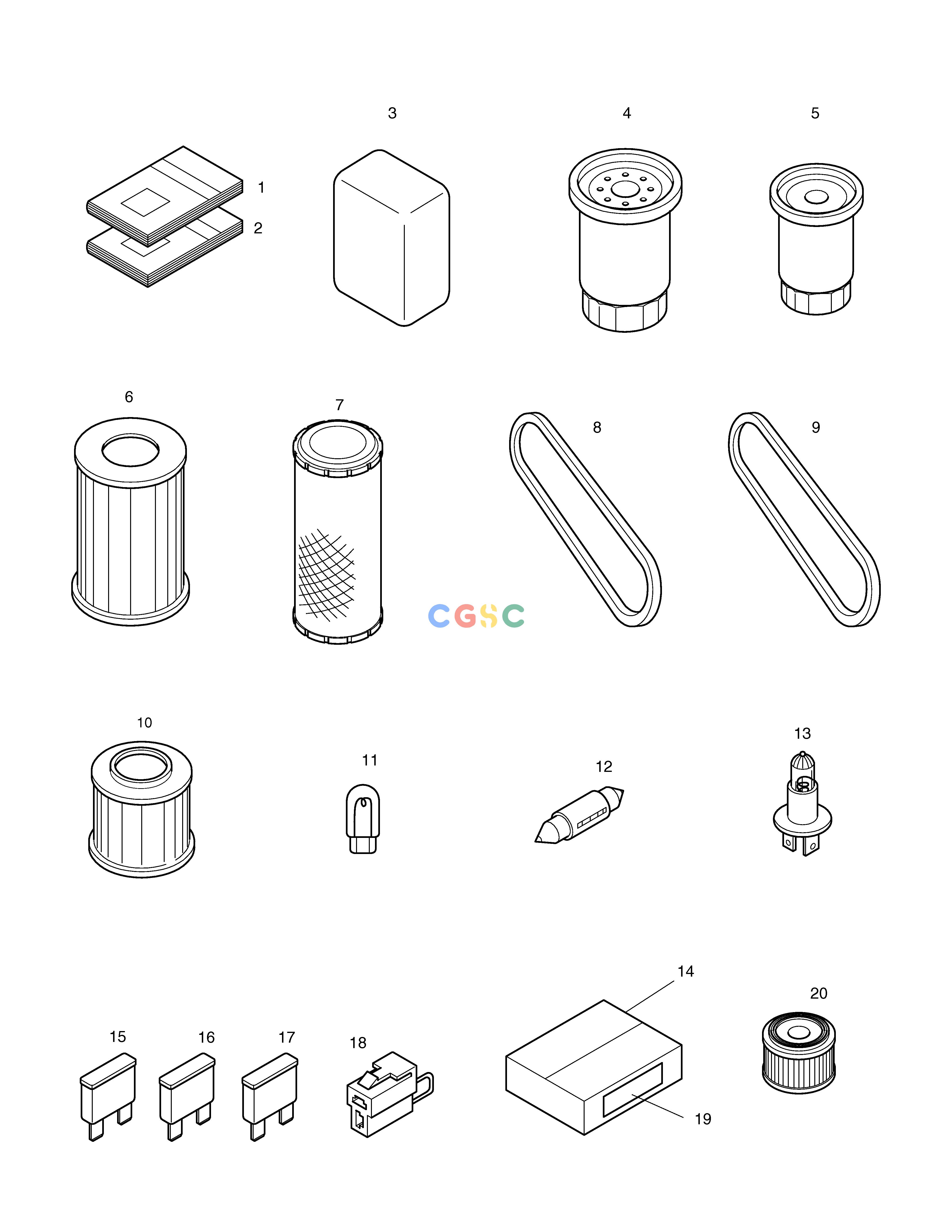

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
918-00190
|
[-] |
SPARE PARTS
|
|
| 1. |
021-00035EF
|
[1] |
PARTS LIST
|
|
| 10. |
2471-1154
|
[1] |
ELEMENT;PILOT FILTER
|
|
| 11. |
S862103H
|
[2] |
BULB 12V 3.4W
|
|
| 12. |
2515-1021D6
|
[1] |
BULB
|
|
| 13. |
2515-1016D2
|
[1] |
BULB
|
|
| 14. |
2512-1095D2
|
[1] |
BOX;SPARE PARTS
|
|
| 15. |
2527-1016
|
[2] |
FUSE,BLADE 10A
|
|
| 16. |
2527-1017
|
[2] |
FUSE,BLADE 15A
|
|
| 17. |
2527-1018
|
[1] |
FUSE,BLADE 20A
|
|
| 18. |
2527-1023A
|
[1] |
LINK,FUSIBLE
|
|
| 19. |
190-00846
|
[1] |
PLATE;NAME
|
|
| 2. |
022-00035E
|
[1] |
MANUAL;OPERATION
|
|
| 20. |
K1029257
|
[1] |
ELEMENT;AIR BREATHER
|
|
| 3. |
2910-9001
|
[3] |
OIL;ENGINE
|
|
| 4. |
471-00043A
|
[1] |
FILTER;ENGINE OIL
|
|
| 5. |
471-00122
|
[1] |
FILTER;FUEL
|
|
| 6. |
2474-1003A
|
[1] |
FILTER;RETURN
|
|
| 7. |
474-00024
|
[1] |
. ELEMENT;OUTER
|
|
| 8. |
2106-1021D19
|
[1] |
BELT;V AIR COMP
|
|
| 9. |
2106-1021D21
|
[1] |
V-BELT;FAN
|
|
