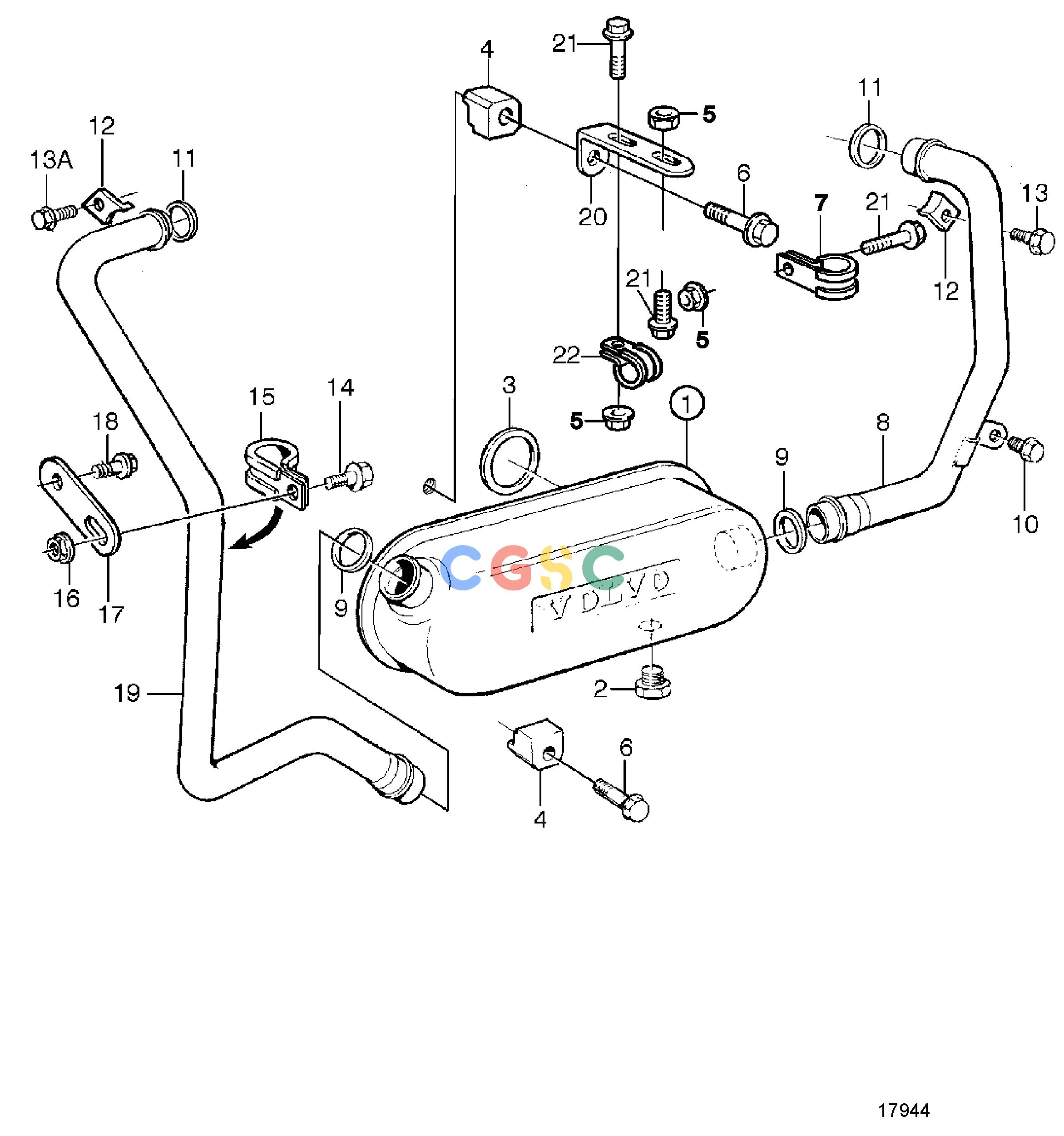

沃尔沃零件查询4400 Oil cooler 998564400 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
454 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE13943474
|
[0008] |
Hose clamp
|
|
| 6. |
VOE4854922
|
[0002] |
Tube
|
|
| 7. |
VOE927660
|
[REQ] |
Rubber hose
|
|
| 8. |
VOE927661
|
[REQ] |
Rubber hose
|
L=500
|
| 9. |
VOE13943474
|
[0004] |
Hose clamp
|
|
| 1. |
VOE4779068
|
[0002] |
Oil cooler
|
|
| 10. |
VOE4854983
|
[0001] |
Pipe elbow
|
|
| 11. |
VOE4854985
|
[0001] |
Pipe elbow
|
|
| 12. |
VOE4881231
|
[0001] |
Non-return valve
|
|
| 13. |
|
[0001] |
Anchorage
|
V
|
| |
|
[0001] |
Anchorage
|
H
|
| 14. |
VOE13970947
|
[0002] |
Hexagon screw
|
|
| 15. |
VOE13960143
|
[0002] |
Washer
|
|
| 16. |
VOE961388
|
[0002] |
Disc spring
|
|
| 17. |
VOE910383
|
[0002] |
Spacer ring
|
|
| 18. |
VOE976945
|
[0002] |
Washer
|
|
| 2. |
VOE13944303
|
[0004] |
Nipple
|
|
| 19. |
VOE971071
|
[0002] |
Hexagon nut
|
|
| 20. |
|
[0002] |
Retainer
|
|
| 21. |
|
[0002] |
Flat bar
|
|
| 22. |
VOE13955295
|
[0008] |
Screw
|
|
| 23. |
VOE13941907
|
[0008] |
Washer
|
|
| 24. |
VOE13955894
|
[0008] |
Washer
|
|
| 25. |
|
[0002] |
Attaching plate
|
|
| 26. |
VOE4881001
|
[0008] |
Expander
|
|
| 27. |
VOE4854930
|
[0001] |
Anchorage
|
H
|
| |
VOE4854936
|
[0001] |
Anchorage
|
V
|
| 3. |
VOE4854473
|
[0004] |
Tube
|
|
| 28. |
|
[0001] |
Retainer
|
H
|
| |
|
[0001] |
Retainer
|
V
|
| 29. |
|
[0001] |
Rubber seal
|
H
|
| |
|
[0001] |
Rubber seal
|
V
|
| 30. |
|
[0001] |
Attaching plate
|
|
| 31. |
VOE13955271
|
[0003] |
Screw
|
|
| 32. |
VOE13955781
|
[0003] |
Nut
|
|
| 33. |
VOE955892
|
[0001] |
Plain washer
|
|
| 34. |
VOE952638
|
[0002] |
Clamp
|
|
| 4. |
VOE14016472
|
[REQ] |
Oil hose
|
|
