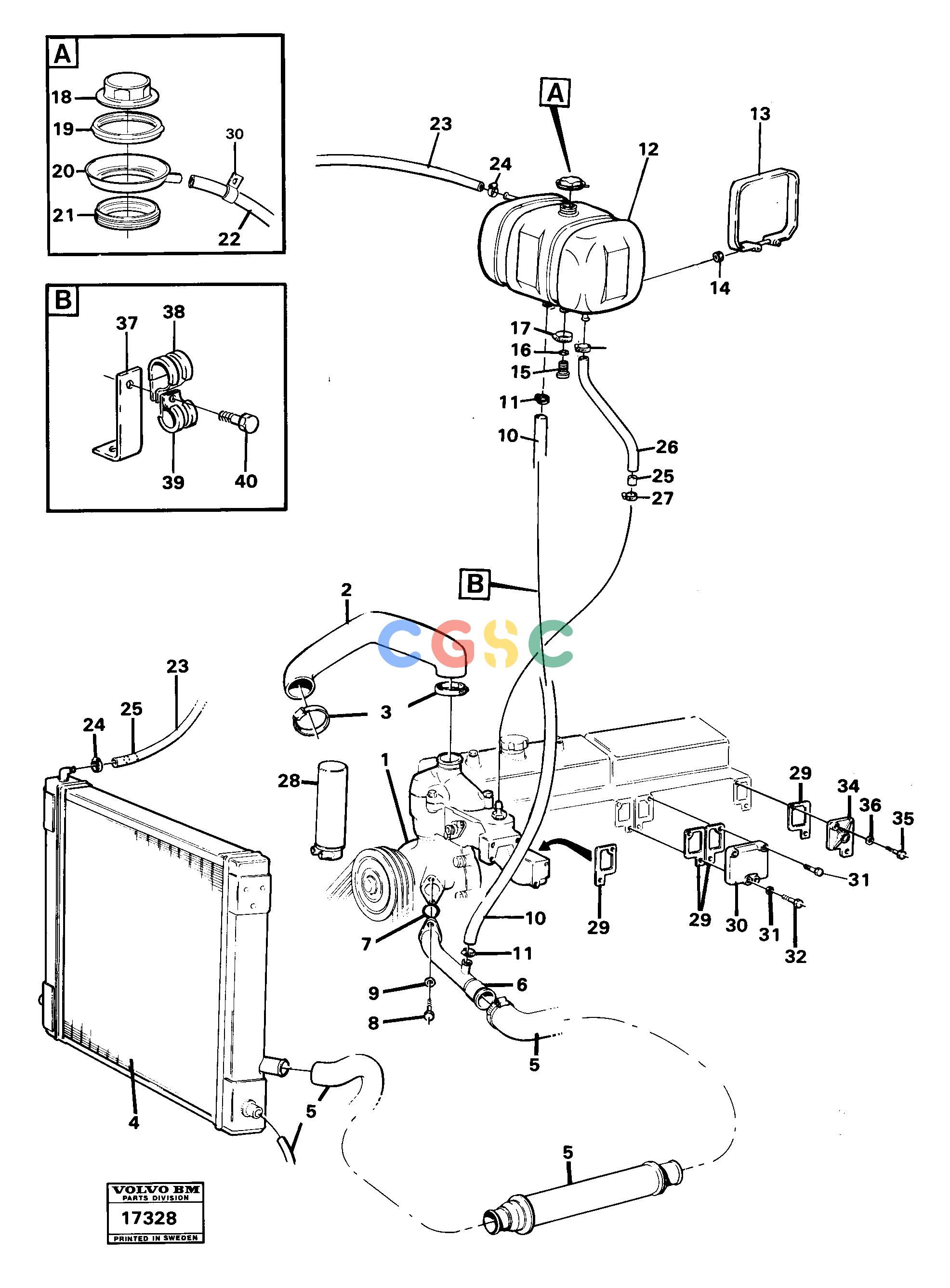

沃尔沃零件查询4400 Cooling system tillv nr 3729-4400 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
785 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
|
[0001] |
Oil cooler
|
|
| 6. |
VOE4773708
|
[0001] |
Tube
|
|
| 7. |
VOE13960179
|
[0001] |
O-ring
|
|
| 8. |
VOE13940135
|
[0002] |
Screw
|
|
| 9. |
VOE13941907
|
[0002] |
Washer
|
|
| 1. |
|
[0001] |
Water pump
|
|
| 10. |
VOE4856263
|
[REQ] |
Radiator hose
|
L=1200
|
| 11. |
VOE943475
|
[0002] |
Hose clamp
|
|
| 12. |
VOE11110211
|
[1] |
Expansion tank
|
|
| 13. |
VOE4804563
|
[2] |
Tensioning band
|
|
| 14. |
VOE955780
|
[2] |
Hexagon nut
|
|
| 15. |
VOE4804282
|
[1] |
Plug
|
|
| 16. |
VOE13960164
|
[1] |
O-ring
|
|
| 17. |
|
[1] |
Clip
|
|
| 18. |
VOE1542591
|
[1] |
Cap
|
|
| 19. |
VOE4804409
|
[1] |
Sealing ring
|
|
| 2. |
VOE4773758
|
[0001] |
Hose
|
SER NO - 4226
|
| 20. |
VOE11431708
|
[1] |
Collar
|
|
| 21. |
VOE4804410
|
[1] |
Sealing ring
|
|
| 22. |
VOE941363
|
[REQ] |
Hose
|
L=1600
|
| 23. |
VOE943367
|
[REQ] |
Hose
|
L=800
|
| 24. |
VOE943471
|
[2] |
Hose clamp
|
|
| |
VOE4774926
|
[0001] |
Radiator hose
|
SER NO 4227 -
|
| 25. |
VOE11033572
|
[2] |
Restrictor
|
|
| 26. |
VOE943367
|
[REQ] |
Hose
|
L=800
|
| 27. |
VOE943471
|
[0002] |
Hose clamp
|
|
| 28. |
|
[0001] |
Oil cooler
|
|
| 29. |
VOE420160
|
[0004] |
Gasket
|
|
| 3. |
VOE943479
|
[0002] |
Hose clamp
|
SER NO - 4226
|
| 30. |
VOE421159
|
[0001] |
Water pipe
|
|
| 31. |
VOE955537
|
[0002] |
Hexagon screw
|
|
| 32. |
VOE955539
|
[0002] |
Hexagon screw
|
|
| 33. |
VOE13942336
|
[0004] |
Spring washer
|
|
| 34. |
VOE421161
|
[0001] |
Cap
|
|
| |
VOE4881440
|
[0002] |
Cable tie
|
SER NO 4227 -
|
| 35. |
VOE955535
|
[0002] |
Hexagon screw
|
|
| 36. |
VOE13942336
|
[0002] |
Spring washer
|
|
| 37. |
|
[0001] |
Anchorage
|
|
| 38. |
VOE952641
|
[0001] |
Clamp
|
|
| 39. |
VOE952630
|
[0001] |
Clamp
|
|
| 4. |
|
[0001] |
Radiator
|
|
| 40. |
VOE955269
|
[0001] |
Hexagon screw
|
|
