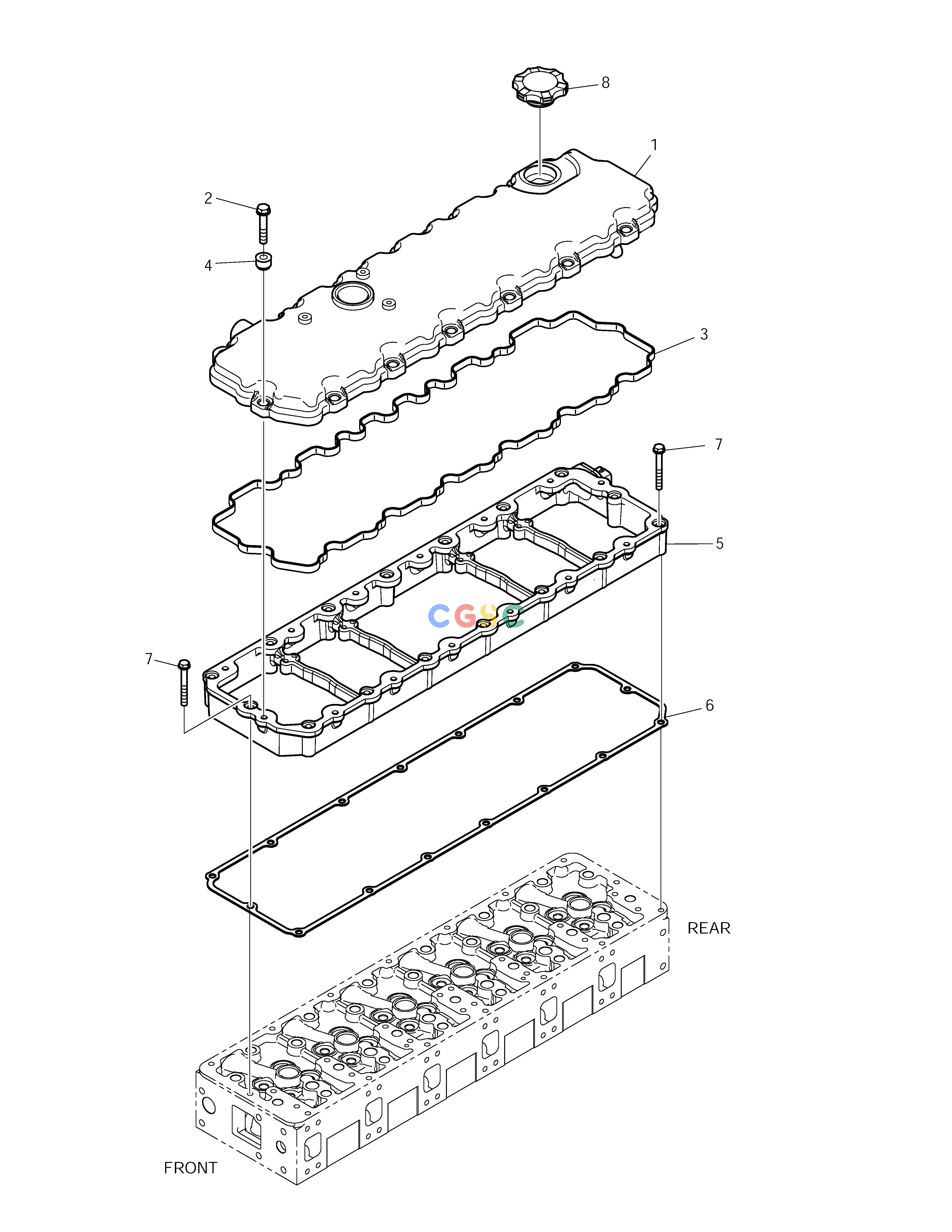

斗山零件查询CYLINDER HEAD COVER DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
459 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.03401-5010
|
[1] |
COVER;CYLINDER HEAD
|
|
| 2. |
65.90020-0109
|
[14] |
BOLT;COLLARED HEX
|
|
| 3. |
65.03905-0037A
|
[1] |
GASKET;HEAD COVER
|
|
| 4. |
65.03905-5002
|
[14] |
PACKING;HEAD COVER
|
|
| 5. |
65.03402-0008A
|
[1] |
COVER;INTERMEDIATE
|
|
| 6. |
65.03905-0041
|
[1] |
GASKET;CYL. HEAD COVER
|
400603-00050
|
| 6. |
400603-00050
|
[1] |
GASKET;INTERMEDIATE
|
|
| 7. |
65.90020-0138
|
[16] |
BOLT;COLLARED HEX
|
|
| 8. |
65.01810-5011
|
[1] |
CAP;OIL FILLER
|
|
