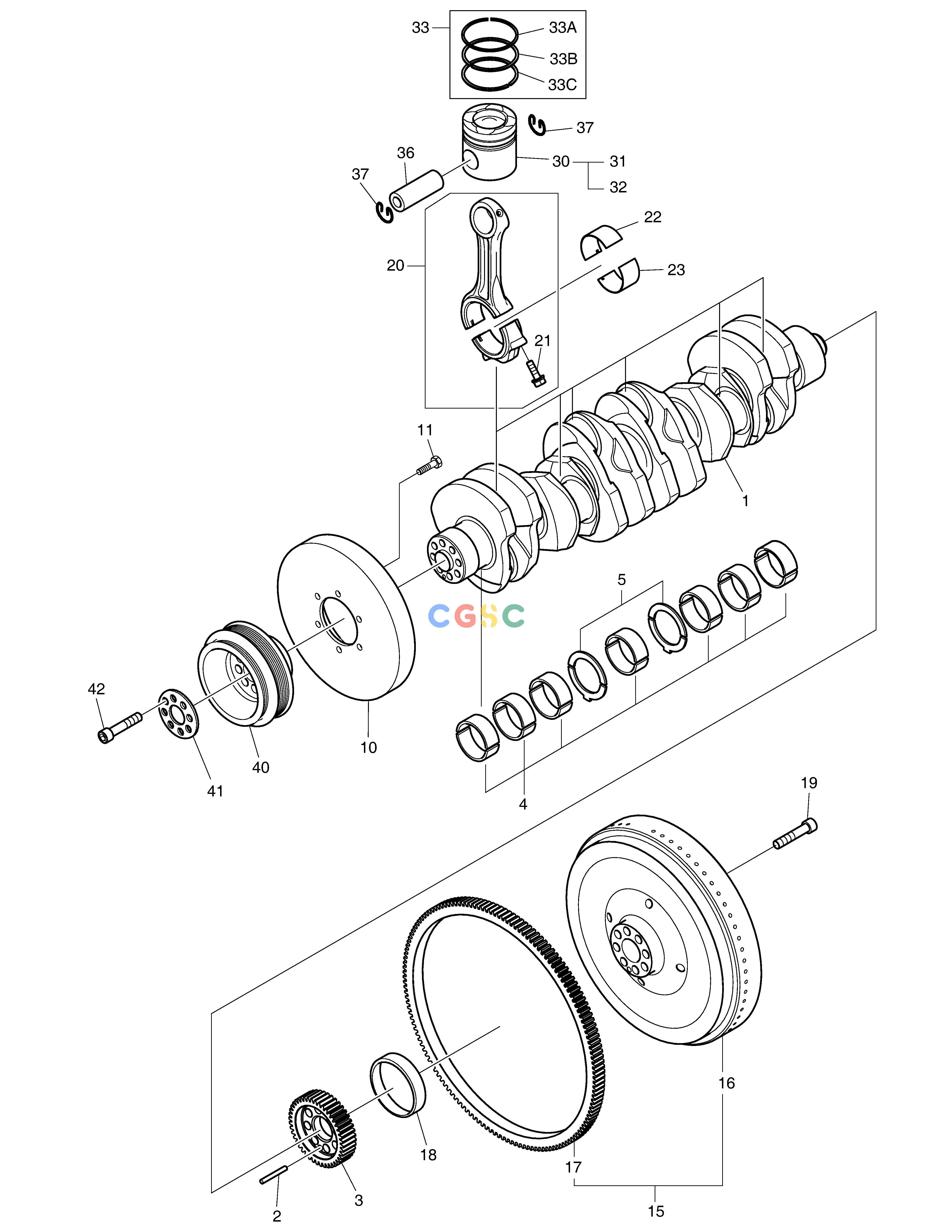

斗山零件查询DRIVING SYSTEM DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
734 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.02101-0069A
|
[1] |
CRANK SHAFT
|
|
| 10. |
65.02201-0002
|
[1] |
DAMPER;VIBRATION
|
|
| 11. |
65.90020-0062B
|
[6] |
BOLT;HEX M10X20
|
|
| 15. |
65.02301-5148A
|
[1] |
FLYWHEEL ASS'Y
|
|
| 16. |
65.02301-0291A
|
[1] |
FLYWHEEL
|
|
| 17. |
65.02310-0006
|
[1] |
. GEAR;RING
|
|
| 18. |
65.02130-0004
|
[1] |
. BUSH;DRIVING
|
|
| 19. |
65.90020-0123
|
[8] |
BOLT;COLLARED HEX.
|
|
| 2. |
06.22022-1018
|
[1] |
PIN;DOWEL
|
|
| 20. |
65.02401-6032B
|
[6] |
CONNECTING ROD ASS`Y
|
150121-00267
|
| 20. |
150121-00267
|
[6] |
ROD ASSY,CONNECTING
|
150121-00267A
|
| 20. |
150121-00267A
|
[6] |
ROD ASSY,CONNECTING
|
|
| 21. |
65.02411-0009
|
[2] |
. BOLT;CONNECTING ROD
|
|
| 22. |
65.02410-0040
|
[6] |
METAL;CON-ROD(STD)
|
|
| 22. |
65.02410-0041
|
[6] |
METAL;CON-ROD(0.25)
|
|
| 22. |
65.02410-0042
|
[6] |
METAL;CON-ROD(0.50)
|
|
| 23. |
65.02410-0050
|
[6] |
METAL;CON-ROD(STD)
|
|
| 23. |
65.02410-0051
|
[6] |
METAL;CON-ROD(0.25)
|
|
| 23. |
65.02410-0052
|
[6] |
METAL;CON-ROD(0.50)
|
|
| 3. |
65.02115-0016
|
[1] |
GEAR;CRANKSHAFT
|
|
| 30. |
65.02501-0476
|
[6] |
PISTON - GRADE
|
|
| 31. |
65.02501-0477
|
[6] |
PISTON;A GRADE
|
|
| 32. |
65.02501-0478
|
[6] |
PISTON;B GRADE
|
|
| 33. |
65.02503-8047
|
[1] |
PISTON RING KIT
|
|
| 33A. |
65.02503-0132A
|
[6] |
RING;PISTON
|
|
| 33B. |
65.02503-0133A
|
[6] |
RING;PISTON
|
|
| 33C. |
65.02503-0134
|
[6] |
RING;PISTON
|
|
| 36. |
65.02502-0017A
|
[6] |
PIN;PISTON
|
|
| 37. |
06.29020-0125
|
[12] |
RING;LOCK
|
|
| 4. |
65.01110-6140
|
[7] |
METAL;MAIN
|
|
| 40. |
65.02601-0225B
|
[1] |
PULLEY;V-BELT
|
|
| 41. |
65.90701-0099
|
[1] |
WASHER
|
|
| 42. |
06.02106-0723
|
[8] |
BOLT;SOCKET
|
|
| 5. |
65.01150-6008
|
[2] |
WASHER;THRUST
|
|
