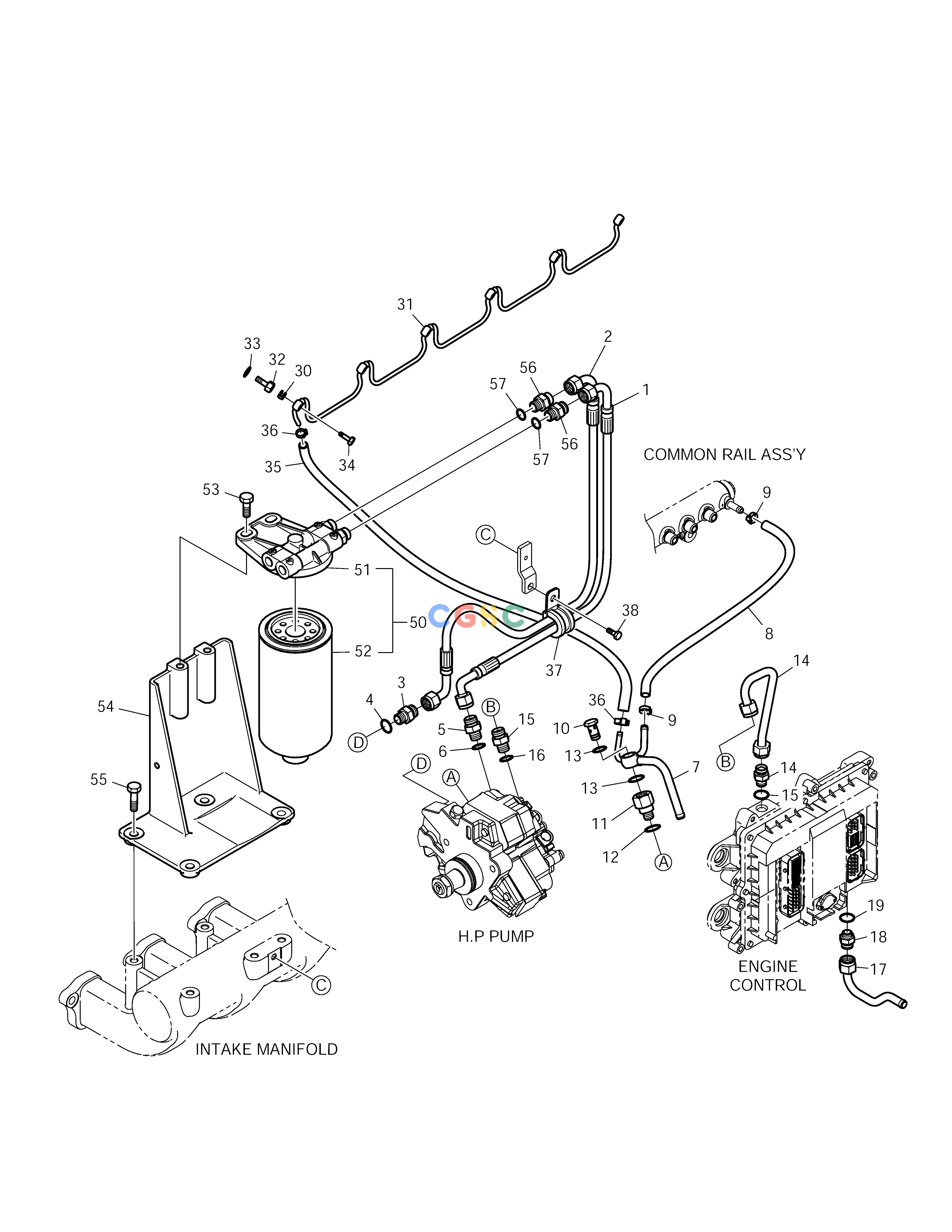

斗山零件查询FUEL SYSTEM DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
522 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.96340-5079
|
[1] |
HOSE
|
|
| 10. |
06.78144-2204
|
[1] |
SCREW;HOLLOW
|
|
| 11. |
65.98130-0159A
|
[1] |
ADAPTER
|
|
| 12. |
06.56190-0704
|
[1] |
. RING;SEAL
|
|
| 13. |
06.56190-0706
|
[2] |
SEAL RING
|
|
| 14. |
65.12301-5289
|
[1] |
PIPE;FUEL
|
|
| 15. |
65.98130-0229
|
[2] |
ADAPTER
|
|
| 16. |
06.56190-0706
|
[2] |
SEAL RING
|
|
| 17. |
65.12301-5268
|
[1] |
PIPE;FUEL
|
|
| 18. |
65.98130-0229
|
[1] |
ADAPTER
|
|
| 19. |
06.56190-0706
|
[1] |
SEAL RING
|
|
| 2. |
65.96340-5080
|
[1] |
HOSE
|
|
| 3. |
65.98130-0211
|
[1] |
ADAPTER
|
|
| 30. |
65.96507-0055
|
[6] |
RING;SEAL
|
|
| 31. |
65.12301-5288A
|
[1] |
PIPE;FUEL
|
|
| 32. |
65.98130-0154
|
[6] |
ADAPTER
|
|
| 33. |
06.56180-0712
|
[6] |
RING;SEAL
|
|
| 34. |
65.98150-0042A
|
[6] |
SCREW;HOLLOW
|
|
| 35. |
65.96301-0462
|
[1] |
HOSE;RUBBER
|
|
| 36. |
65.97440-0045
|
[2] |
CLAMP
|
|
| 37. |
65.97401-5019
|
[1] |
CLIP;PIPE
|
|
| 38. |
06.01923-3111
|
[1] |
BOLT, M8X16
|
|
| 4. |
06.56190-0704
|
[1] |
. RING;SEAL
|
|
| 5. |
65.98130-0229
|
[1] |
ADAPTER
|
|
| 50. |
65.12501-7042A
|
[1] |
FUEL FILTER ASS'Y
|
|
| 51. |
65.12504-5027
|
[1] |
COVER;FUEL FILTER
|
|
| 52. |
65.12503-5026
|
[1] |
FILTER;E/G FUEL
|
|
| 53. |
06.01923-3217
|
[2] |
BOLT ASS`Y M10X30
|
|
| 54. |
65.12540-0057C
|
[1] |
BRACKET;FUEL FILTER
|
|
| 55. |
06.01913-3216
|
[4] |
BOLT M10X28
|
|
| 56. |
65.98130-0229
|
[2] |
ADAPTER
|
|
| 57. |
06.56190-0706
|
[2] |
SEAL RING
|
|
| 6. |
06.56190-0706
|
[1] |
SEAL RING
|
|
| 7. |
65.12301-5291
|
[1] |
. PIPE;FUEL
|
|
| 8. |
65.96330-0018
|
[1] |
HOSE;RUBBER;RING JOINT
|
|
| 9. |
65.97440-0045
|
[2] |
CLAMP
|
|
