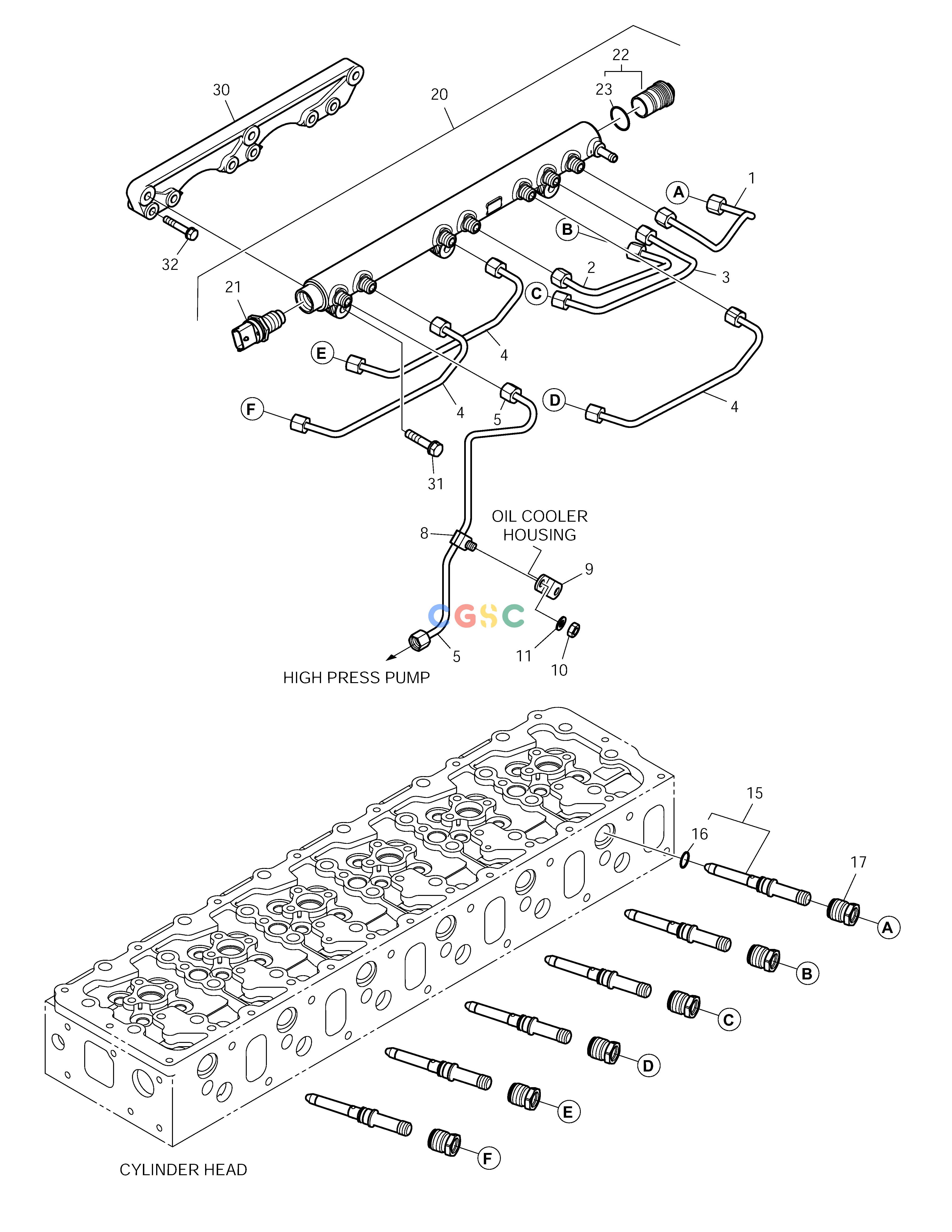

斗山零件查询INJECTION PIPE DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
278 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.10301-6191
|
[1] |
PIPE;INJECTION
|
|
| 10. |
06.11063-8214
|
[1] |
. NUT
|
|
| 11. |
06.16731-2107
|
[1] |
WASHER
|
|
| 15. |
65.10410-6003A
|
[6] |
H.P.CONNECTOR
|
|
| 16. |
65.96501-0438
|
[1] |
. O-RING
|
|
| 17. |
65.10415-0001
|
[6] |
NUT
|
|
| 2. |
65.10301-6192
|
[1] |
PIPE;INJECTION
|
|
| 20. |
65.10601-6004A
|
[1] |
. COMMON RAIL ASS`Y
|
|
| 21. |
65.27114-5002
|
[1] |
.. SENSOR;RAIL PRESSURE
|
|
| 22. |
65.52122-6002
|
[1] |
.. VALVE;PRESSURE LIMITING
|
|
| 23. |
65.96501-0431
|
[1] |
... O-RING
|
|
| 3. |
65.10301-6193
|
[1] |
PIPE;INJECTION
|
|
| 30. |
65.10610-0003
|
[1] |
. BRACKET;MOUNTING
|
|
| 31. |
06.01913-3118
|
[3] |
. BOLT ASS`Y M8X35
|
|
| 32. |
06.01913-3119
|
[6] |
BOLT ASS`Y M8X40
|
|
| 4. |
65.10301-6194
|
[3] |
PIPE;INJECTION
|
|
| 5. |
65.10301-6195
|
[1] |
. PIPE;INJECTION
|
|
| 8. |
65.97401-6039
|
[1] |
. CLIP;PIPE
|
|
| 9. |
65.97480-0220
|
[1] |
. HOLDER
|
|
