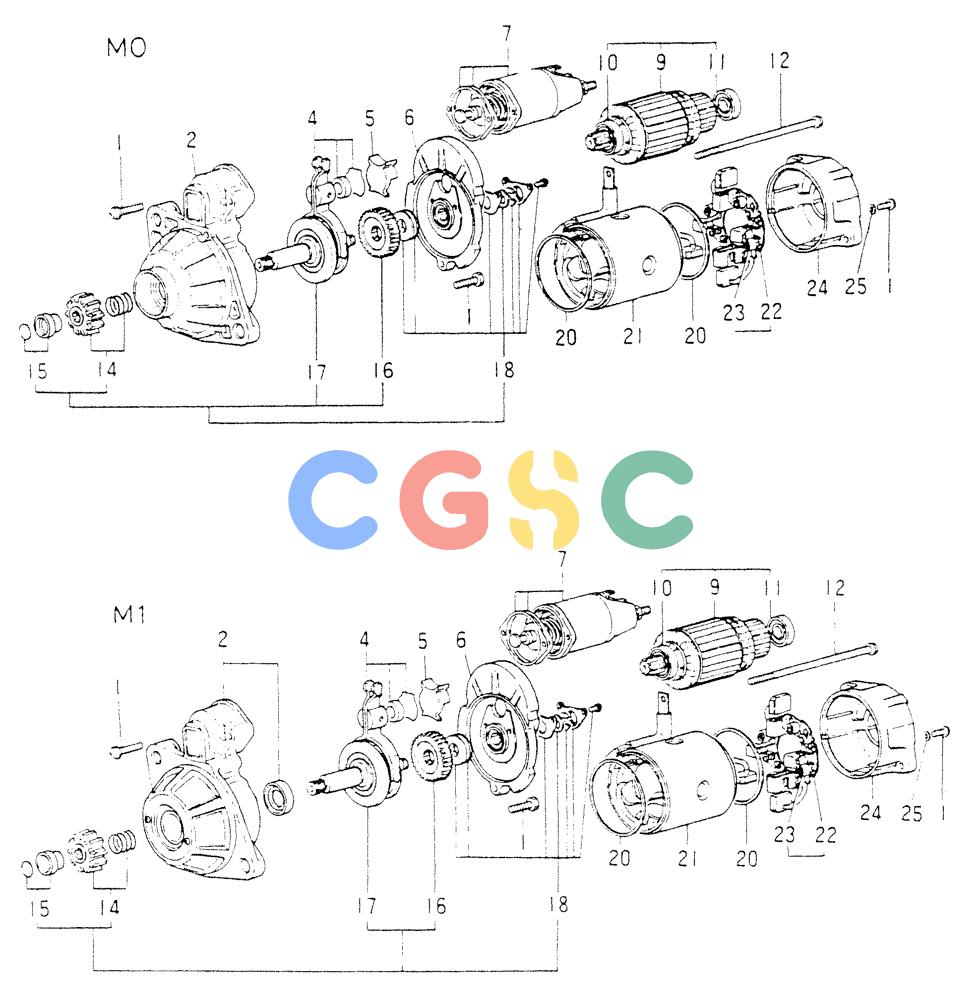

神钢零件查询(6D14) - MITSUBISHI DIESEL ENGINE - K904C, K907B, K907C & YS750-2 (1/77-12/06) (04-003) - STARTER (INNER PARTS) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
290 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-25. | VAME037465 | [1] | STARTER STARTER ASSY 24V-4.5KW (FOR M0 ONLY), (MEC M003T56071) | STARTER STARTER ASSY 24V-4.5KW (FOR M0 ONLY), (MEC M003T56071) |
| 1-25. | VAME049182 | [1] | STARTER ASSY 24V-5.0KW (FOR M1 ONLY), (MEC M003T56076) | |
| 1. | VAM414X05171 | [1] | SCREW SET SCREWSET | SCREW SET SCREWSET |
| 2. | VAM641X59571 | [1] | BRACKET BRACKET ASSY FR (FOR M0 ONLY) | BRACKET BRACKET ASSY FR (FOR M0 ONLY) |
| 2. | VAM641X63071 | [1] | BRACKET ASSY FR (FOR M1 ONLY) | |
| 4. | VAM863C05671 | [1] | LEVER | KOBLEVER ASSY (FOR M0 ONLY) |
| 4. | VAM863C06571 | [1] | LEVER ASSY (FOR M1 ONLY) | |
| 5. | VAM578D20501 | [1] | PACKING | KOBPACKING |
| 6. | VAM640B26171 | [1] | BRACKET | KOBBRACKET ASSY CTR (M0 ONLY) |
| 6. | VAM640B26971 | [1] | BRACKET ASSY BRACKET ASSY CTR (M1 ONLY) | BRACKET ASSY BRACKET ASSY CTR (M1 ONLY) |
| 7. | VAM371X20571 | [1] | SWITCH | KOBSWITCH ASSY Superseded by part number: VAM371X20572 |
| 9-11. | VAM106X29171 | [1] | ARMATURE | KOBARMATURE ASSY |
| 9. | NSS | [1] | NOT SOLD SEPARAT | CONARMATURE |
| 10. | VA5930P12301 | [1] | BEARING | |
| 11. | VA5930P28001 | [1] | BEARING | |
| 12. | VAM901X01771 | [1] | BOLT | KOBBOLT SET |
| 14-18. | VAM357X84571 | [1] | SHAFT | KOBCLUTCH SET SHAFT ASSY (FOR M0 ONLY) Superseded by part number: VAME700040 |
| 14-18. | VAM357X85071 | [1] | CLUTCH SET SHAFT ASSY (FOR M1 ONLY) | |
| 14-17. | VAM231X00684 | [1] | CLUTCH | KOBGEAR SET (FOR M0 ONLY) |
| 14-15. | VAM605X64571 | [1] | PINION SET PINION SET (FOR M0 ONLY) | PINION SET PINION SET (FOR M0 ONLY) |
| 14-16. | VAM605X64671 | [1] | PINION SET (FOR M1 ONLY) | |
| 14. | NSS | [1] | NOT SOLD SEPARAT | CONPINION |
| 15. | VAM385X03771 | [1] | STOP | KOBSTOPPER SET |
| 16-17. | VAM231X00688 | [1] | GEAR SET (FOR M1 ONLY) | |
| 16. | VAM231C00601 | [1] | GEAR | KOBGEAR |
| 17. | VAM357C73571 | [1] | SHAFT | KOBPINION SHAFT ASSY (FOR M0 ONLY) |
| 17. | VAM357X73671 | [1] | PINION SHAFT ASSY (FOR M1 ONLY) | |
| 18. | VAM212X11571 | [1] | COVER | KOBCOVER SET |
| 20. | VAM578D14501 | [2] | PACKING PACKING | PACKING PACKING |
| 21. | VAM800T43171 | [1] | YOKE | KOBYOKE ASSY (FOR M0 ONLY) Superseded by part number: VAME700046 |
| 21. | VAM800X43176 | [1] | YOKE ASSY (FOR M1 ONLY) | |
| 22-23. | VAM649T04973 | [1] | BRUSH HOLDER BRUSH HOLDER ASSY | BRUSH HOLDER BRUSH HOLDER ASSY |
| 22. | NSS | [1] | NOT SOLD SEPARAT | CONHOLDER, BRUSH |
| 23. | VAM391C02201 | [4] | SPRING | KOBSPRING, BRUSH |
| 24. | VAM644B20701 | [1] | U-BRACKET | KOBBRACKET, RE Superseded by part number: 135050A1 |
| 25. | VAM816D00701 | [2] | SEAL RETAINER | KOBRING, RUBBER Superseded by part number: 135064A1 |
