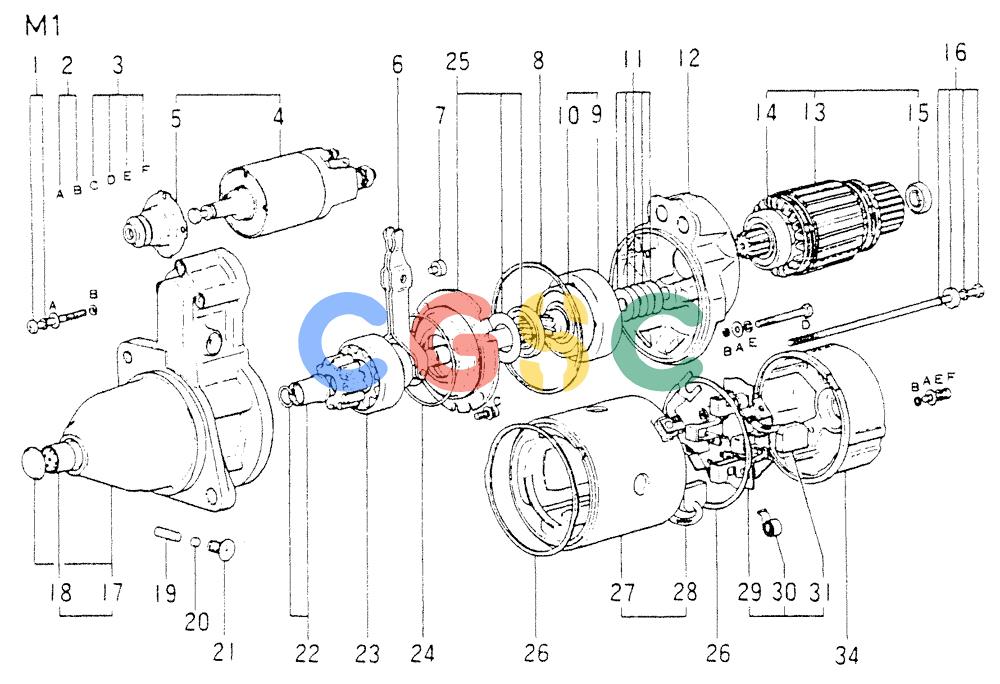

神钢零件查询(6D14) - MITSUBISHI DIESEL ENGINE - K904C, K907B, K907C & YS750-2 (1/77-12/06) (04-004) - STARTER (INNER PARTS) (P/N-ME039950) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
794 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-34. | VAME039950 | [1] | STARTER MOTOR | KOBSTARTER ASSY STARTER ASSY 24V-6.0KW, (MEC M005T50176) Superseded by part number: VAME049184 |
| 1. | VAM414X03071 | [1] | SET OF SCREWS | KOBSCREW SET |
| 2. | VAM578X13574 | [1] | SET | KOBPACKING SET |
| 3. | VAM414X03871 | [1] | SET OF SCREWS | KOBSCREW SET |
| 4-5. | VAM373X04771 | [1] | THERMOSTAT | KOBSWITCH ASSY Superseded by part number: 136133A1 |
| 4. | NSS | [1] | NOT SOLD SEPARAT | CONSWITCH |
| 5. | VAM212C09201 | [1] | COVER | KOBCOVER |
| 6. | VAM864D06771 | [1] | LEVER | KOBLEVER Superseded by part number: 240351A1 |
| 7. | VAM200D01101 | [1] | GUIDE | |
| 8. | VAM578D18901 | [1] | PACKING | KOBPACKING Superseded by part number: 136118A1 |
| 9-10. | VAM357X60671 | [1] | SHAFT GEAR SHAFT ASSY | SHAFT GEAR SHAFT ASSY |
| 9. | NSS | [1] | NOT SOLD SEPARAT | CONSHAFT,GEAR |
| 10. | VAS930P28801 | [1] | BEARING | KOBBEARING Superseded by part number: 136094A1 |
| 11. | VAM900X02171 | [1] | COTTER PIN WASHER SET | COTTER PIN WASHER SET |
| 12. | VAM646B21701 | [1] | BRACKET,CTR BRACKET, CTR | BRACKET,CTR BRACKET, CTR |
| 13-15. | VAM106X27671 | [1] | SHAFT ARMATURE SET | SHAFT ARMATURE SET |
| 13. | NSS | [1] | NOT SOLD SEPARAT | CONARMATURE |
| 14. | VAS930P28301 | [1] | BEARING | KOBBEARING, CTR |
| 15. | VAS930P36301 | [1] | BEARING | KOBBEARING, RE |
| 16. | VAM981X73871 | [2] | BOLT | KOBBOLT SET |
| 17-18. | VAM641X56671 | [1] | BRACKET ASSY FR | |
| 17. | NSS | [1] | NOT SOLD SEPARAT | CONBRACKET, FR |
| 18. | VAM410D12271 | [1] | SLEEVE BEARING, SLEEVE | SLEEVE BEARING, SLEEVE |
| 19. | VAM984D00501 | [1] | PIN | KOBPIN Superseded by part number: 136140A1 |
| 20. | VAM578D04901 | [1] | PACKING | KOBPACKING Superseded by part number: 136114A1 |
| 21. | VAS060S10014 | [1] | SCREW SCREW | SCREW SCREW |
| 22. | VAM385X02971 | [1] | STOP LOCK | KOBSTOPPER SET Superseded by part number: 136132A1 |
| 23. | VAM191T72671 | [1] | CLUTCH | KOBCLUTCH, OVER RUNNING |
| 24. | VAS809P33201 | [1] | O-RING | KOB0-RING Superseded by part number: 136128A1 |
| 25. | VAM646X70571 | [1] | GEAR | KOBBRACKET, GEAR |
| 26. | VAM578D18001 | [2] | PACKING | KOBPACKING Q Superseded by part number: 136115A1 |
| 27-28. | VAM800X41878 | [1] | YOKE ASSY YOKE ASSY | YOKE ASSY YOKE ASSY |
| 27. | NSS | [1] | NOT SOLD SEPARAT | CONYOKE |
| 28. | VAM648C25071 | [2] | BRUSH BRUSH | BRUSH BRUSH |
| 29-31. | VAM649T05571 | [1] | BRUSH HOLDER | KOBBRUSH HOLDER ASSY Superseded by part number: 240350A1 |
| 29. | NSS | [1] | NOT SOLD SEPARAT | CONHOLDER, BRUSH |
| 30. | VAM391C02001 | [4] | SPRING, BRUSH | |
| 31. | VAM648C25071 | [2] | BRUSH BRUSH | BRUSH BRUSH |
| 34. | VAM644X20371 | [1] | U-BRACKET | KOBBRACKET, RE Superseded by part number: 136101A1 |
