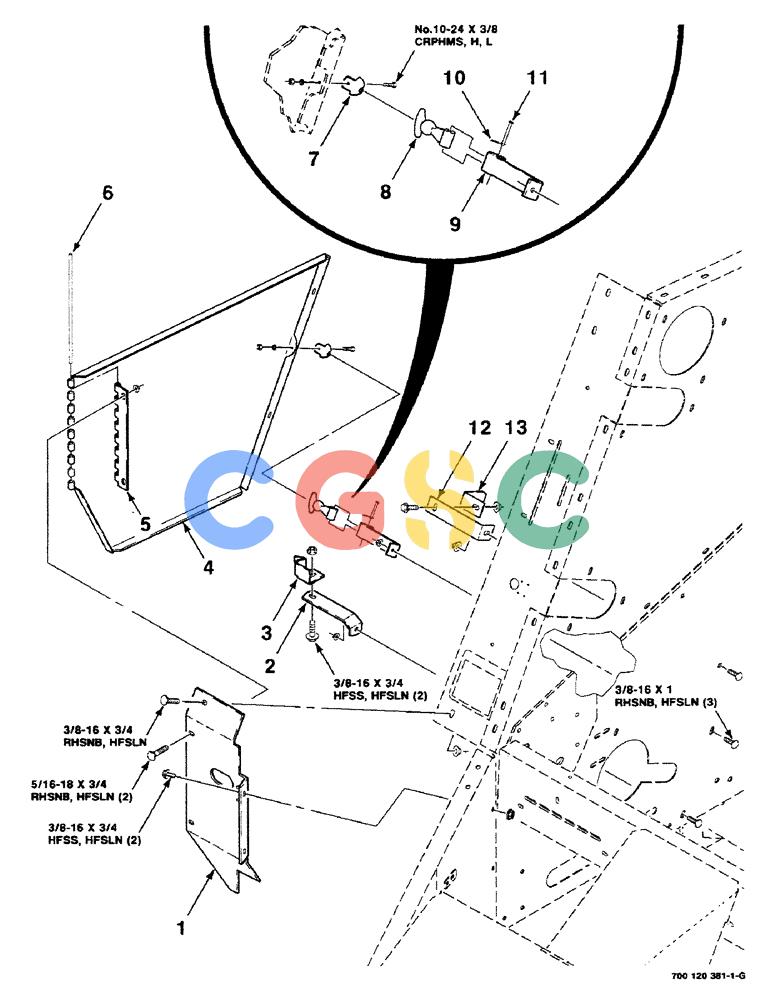

凯斯零件查询(8430) - CASE IH ROUND BALER (1/88-12/00) (7-14) - SHIELDS ASSEMBLY (LOWER-RIGHT) Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
383 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700120566
|
[1] |
SUPPORT
|
HFI
- shield, front Superseded by part number: 700131851
|
| 2. |
700120560
|
[1] |
STRAP
|
HFI
- support
|
| 3. |
700120564
|
[1] |
SUPPORT
|
HFI
- shield
|
| 4. |
700120562
|
[1] |
SHIELD
|
HFI
- lower, right
|
| 5. |
700117193
|
[1] |
HINGE
|
CAS
|
| 6. |
6556518
|
[1] |
PIN
|
HFI
|
| 7. |
8722910
|
[1] |
BRACKET
|
CAS
- latch
|
| 8. |
776682
|
[1] |
HOOK
|
CAS
- rubber Superseded by part number: 86975220
|
| 9. |
700120555
|
[1] |
SUPPORT
|
HFI
- latch
|
| 10. |
62034
|
[1] |
BATTERY
|
IH
3/32 x 3/4 COTTER PIN
|
| 11. |
863126
|
[1] |
PIN
|
CAS
1/4 x 1-3/4 CLEVIS PIN Superseded by part number: Q1329
|
| 12. |
700117201
|
[1] |
SUPPORT
|
HFI
- shield
|
| 13. |
700120552
|
[1] |
SUPPORT
|
HFI
- shield
|
| . . |
700013
|
[2] |
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5
|
CAS
5/16-18 x 3/4 RHSNB
|
| . . |
7700065
|
[1] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5
|
CAS
3/8-16 x 3/4 RHSNB Superseded by part number: 280430
|
| . . |
700047
|
[3] |
BOLT
|
CAS
3/8-16 x 1 RHSNB Superseded by part number: 80280503
|
| . . |
7703432
|
[4] |
BOLT,Hex, Serr, 3/8" - 16 x 3/4"
|
CAS
3/8-16 x 3/4 HFSS Superseded by part number: 255918
|
| . . |
700704837
|
[1] |
SCREW,Cross Pan Hd, #10-24 x 3/8"
|
CAS
NO. 10-24 x 3/8 CRPHMS Superseded by part number: 72181877
|
| . . |
704072
|
[1] |
NUT
|
CAS
NO. 10-24 H Superseded by part number: 225-14110, 225-14110, NLS
|
| . . |
704239
|
[2] |
FRONT AXLE
|
NNA
5/16-18 HFSLN Superseded by part number: 231-5145, 231-5145, NLS
|
| . . |
704247
|
[8] |
NUT
|
CAS
3/8-16 HFSLN Superseded by part number: 231-5146, 231-5146, 280736, 231-5146, 280736, 692965, 231-5146, 280736, 692965, 87362
|
| . . |
705004
|
[1] |
LOCK WASHER
|
CAS
NO. 10 L Superseded by part number: 80684
|
