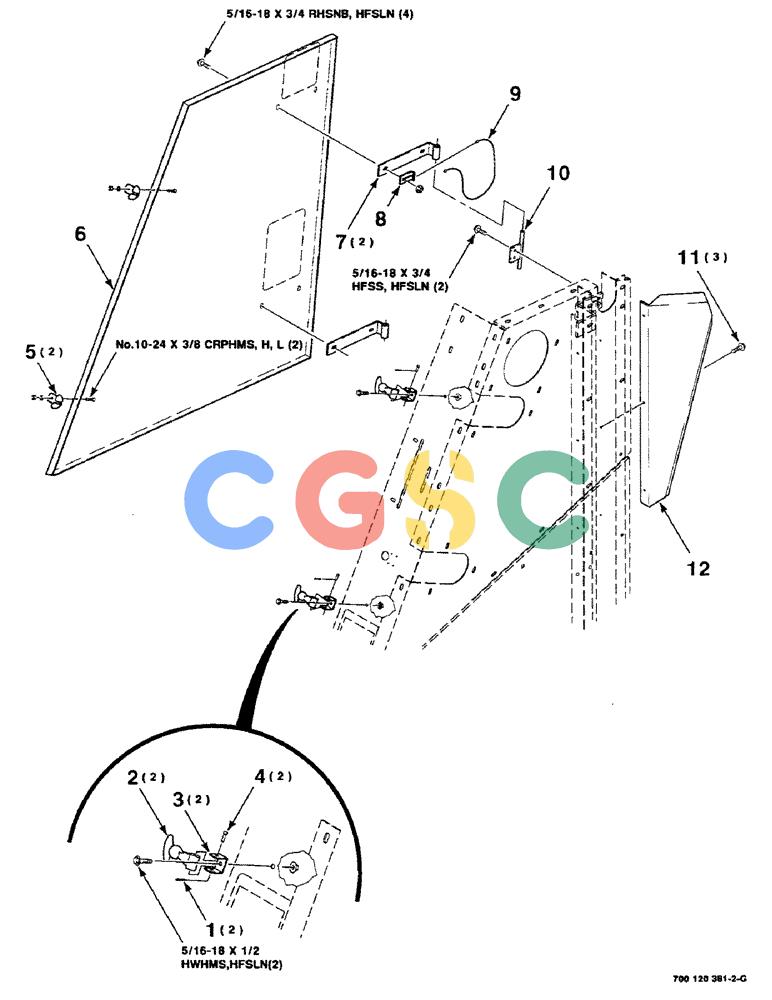

凯斯零件查询(8430) - CASE IH ROUND BALER (1/88-12/00) (7-12) - SHIELDS ASSEMBLY (UPPER-RIGHT) Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
826 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
62034
|
[2] |
BATTERY
|
IH
3/32 x 3/4 COTTER PIN
|
| 2. |
776682
|
[2] |
HOOK
|
CAS
- rubber Superseded by part number: 86975220
|
| 3. |
776674
|
[2] |
SUPPORT
|
L
ANCHOR
|
| 4. |
63784
|
[2] |
CLEVIS PIN
|
IH
1/4 x 1-1/2 CLEVIS PIN Superseded by part number: 141-13
|
| 5. |
8722910
|
[2] |
BRACKET
|
CAS
- catch
|
| 6. |
700120563
|
[1] |
SHIELD
|
HFI
- right
|
| 7. |
700117203
|
[2] |
HINGE
|
CAS
WA - shield
|
| 8. |
700114675
|
[1] |
ANCHOR
|
CAS
- cable
|
| 9. |
700706805
|
[1] |
CABLE
|
CAS
ASSEMBLY
|
| 10. |
700117198
|
[1] |
ROD
|
CAS
WA
|
| 11. |
280-5488
|
[3] |
SELF-TAP SCREW,Hex Wash Hd, 5/16" x 1/2"
|
CAS
5/16-18 x 1/2 HWHTCTS
|
| 12. |
700120557
|
[1] |
SHIELD
|
HFI
- rear, right
|
| . . |
700013
|
[4] |
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5
|
CAS
5/16-18 x 3/4 RHSNB
|
| . . |
7883317
|
[2] |
SCREW,Hex Washer, 5/16" - 18 x 1/2"
|
CAS
5/16-18 x 1/2 HWHMS Superseded by part number: 256873
|
| . . |
703132
|
[2] |
SERRATED SCREW
|
CAS
5/16-18 x 3/4 HFSS Superseded by part number: 145913
|
| . . |
700704837
|
[2] |
SCREW,Cross Pan Hd, #10-24 x 3/8"
|
CAS
NO. 10-24 x 3/8 CRPHMS Superseded by part number: 72181877
|
| . . |
NLS
|
[2] |
NO LONGER SERVICED
|
BAS
NO. 10-24 H
|
| . . |
231-5145
|
[8] |
SERRATED NUT,Flg, USR, 5/16"-18
|
CAS
5/16-18 HFSLN Superseded by part number: 72187067, 145458
|
| . . |
705004
|
[2] |
LOCK WASHER
|
CAS
NO. 10 L Superseded by part number: 80684
|
