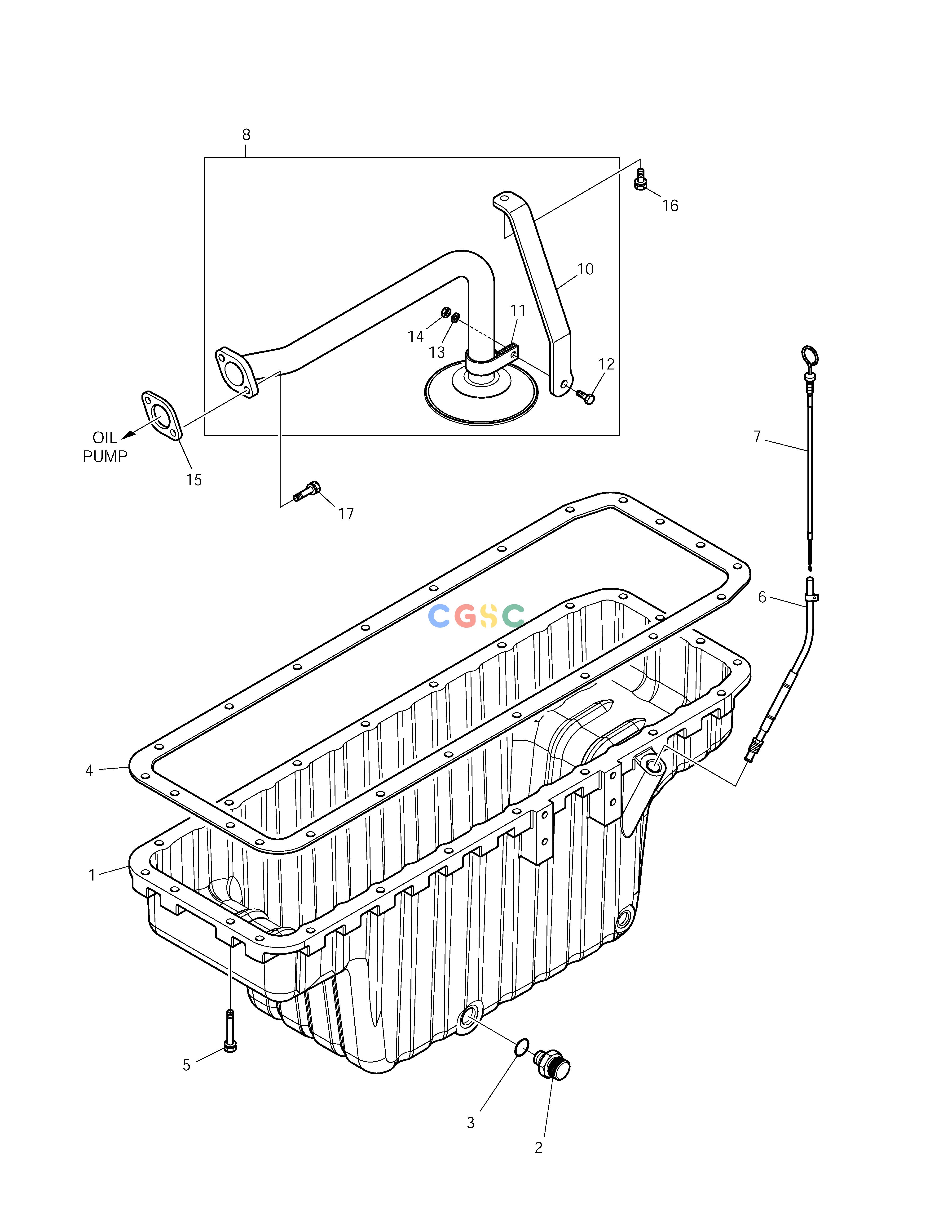

斗山零件查询OIL PAN DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
668 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.05801-5245
|
[1] |
PAN;OIL
|
|
| 10. |
65.05740-0222
|
[1] |
BRACKET;OIL SUCT.PIPE
|
|
| 11. |
65.97401-0137
|
[1] |
CLIP;PIPE
|
|
| 12. |
06.01283-7115
|
[1] |
BOLT M8X25
|
|
| 13. |
06.15010-2311
|
[1] |
WASHER
|
|
| 14. |
65.90510-0012
|
[1] |
NUT
|
|
| 15. |
65.05901-0032
|
[1] |
GASKET
|
|
| 16. |
06.01913-3115
|
[1] |
BOLT ASS`Y M8X25
|
|
| 17. |
06.01913-3119
|
[2] |
BOLT ASS`Y M8X40
|
|
| 2. |
65.98125-5022A
|
[1] |
JOINT;DRAIN
|
|
| 3. |
06.56190-0732
|
[1] |
SEAL;RING
|
|
| 4. |
65.05904-0035
|
[1] |
GASKET;OIL PAN
|
400604-00026
|
| 4. |
400604-00026
|
[1] |
|
|
| 5. |
06.01923-3120
|
[22] |
. BOLT ASS`Y M8X45
|
|
| 6. |
65.05806-5116A
|
[1] |
GUIDE TUBE;OIL LEVEL GAUGE
|
|
| 7. |
65.05805-5236
|
[1] |
OIL LEVEL GAUGE
|
|
| 8. |
65.05701-6122
|
[1] |
OIL PIPE ASS'Y
|
|
