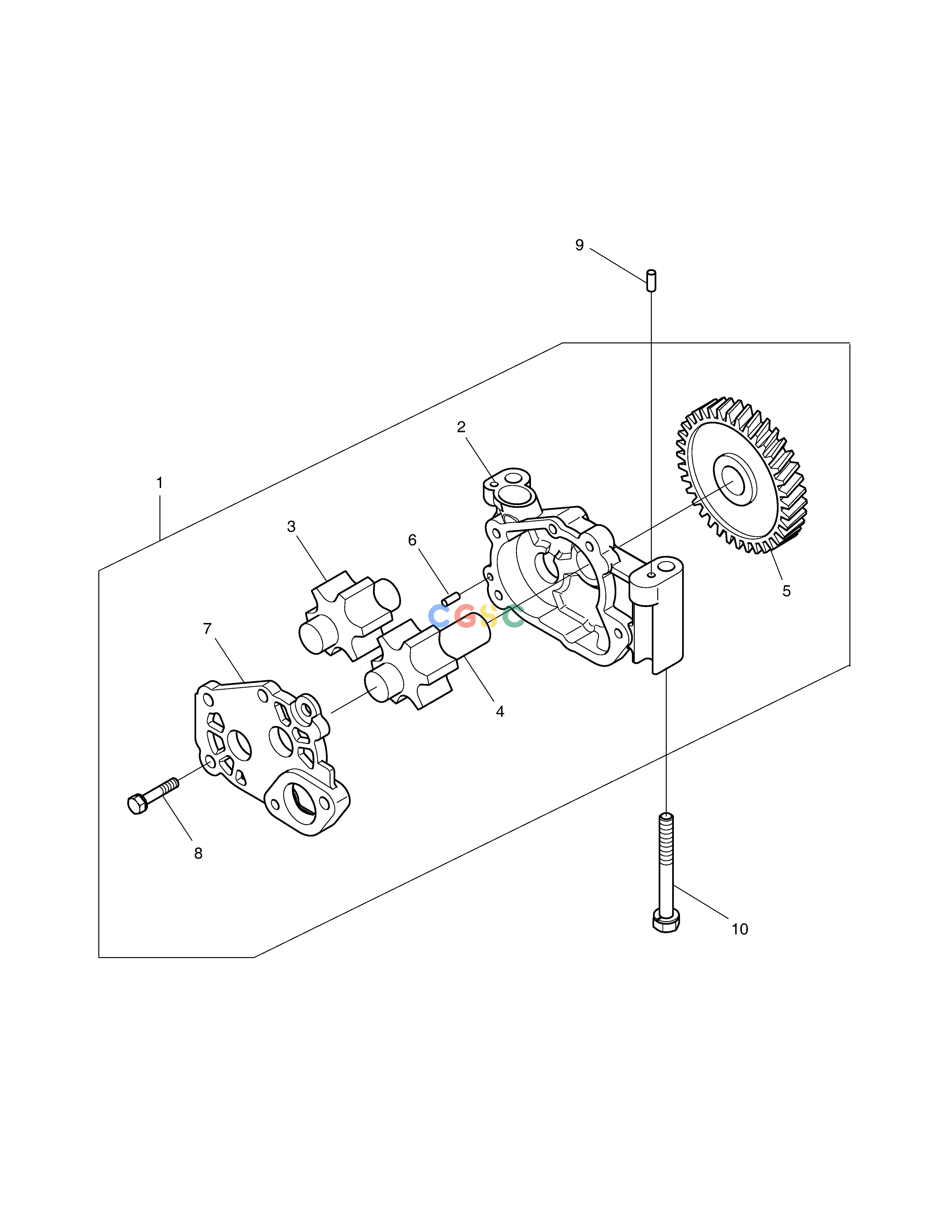

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 65.05100-6063 | [1] | OIL PUMP ASS'Y | |
| 10. | 65.90020-0085 | [2] | BOLT;COLLARED HEX | |
| 2. | 65.05102-0030 | [1] | . HOUSING;OIL PUMP | |
| 3. | 65.05104-5014 | [1] | GEAR;OIL PUMP | |
| 4. | 65.05104-5015 | [1] | GEAR;OIL PUMP | |
| 5. | 65.05201-0016 | [1] | . GEAR;DRIVE;OIL PUMP | |
| 6. | 06.22022-0907 | [1] | . PIN;DOWEL | |
| 7. | 65.05103-0034 | [1] | . COVER;OIL PUMP | |
| 8. | 06.01913-3114 | [4] | BOLT ASS`Y M8X22 | |
| 9. | 06.22022-0909 | [2] | PIN;DOWEL 6M6X14 |
