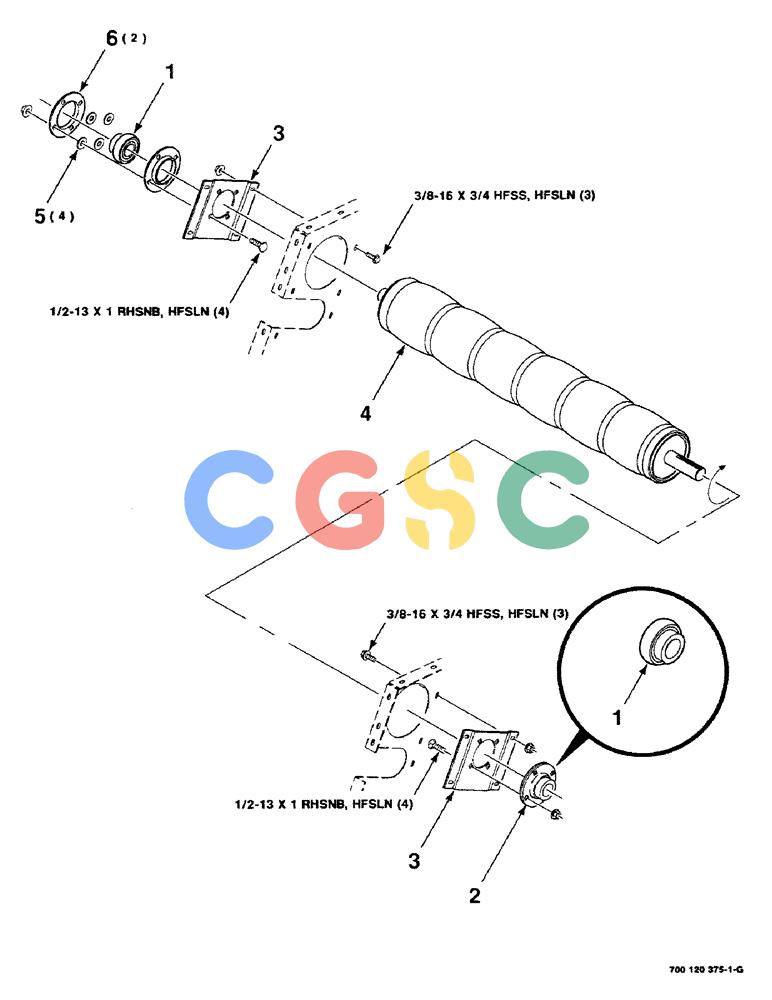

凯斯零件查询(8430) - CASE IH ROUND BALER (1/88-12/00) (6-12) - DRIVE ROLLER ASSEMBLY (UPPER-RUBBER) Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
783 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
51318
|
[2] |
BEARING
|
IH
- spherical Superseded by part number: 668718R92, 47577169
|
| 2. |
700110467
|
[1] |
BEARING ASSY,44.45 mm ID x 92.44 mm OD x 29 mm
|
L
BEARING ASSEMBLY (includes item 1)
|
| 3. |
700120478
|
[2] |
SUPPORT
|
HFI
MOUNT - bearing
|
| 4. |
700120470
|
[1] |
ROLLER
|
HFI
- upper, rubber
|
| 5. |
7852213
|
[4] |
SHIM
|
HFI
WASHER - shim
|
| 6. |
50583
|
[2] |
FLANGED BEARING
|
IH
- bearing Superseded by part number: 86979948
|
| . . |
433-816
|
[8] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5
|
CAS
1/2-13 x 1 RHSNB Superseded by part number: 280486
|
| . . |
7703432
|
[6] |
BOLT,Hex, Serr, 3/8" - 16 x 3/4"
|
CAS
3/8-16 x 3/4 HFSS Superseded by part number: 255918
|
| . . |
704247
|
[6] |
NUT
|
CAS
3/8-16 HFSLN Superseded by part number: 231-5146, 231-5146, 280736, 231-5146, 280736, 692965, 231-5146, 280736, 692965, 87362
|
| . . |
704254
|
[8] |
NUT,Flg, USR, 1/2"-13
|
CAS
1/2-13 HFSLN Superseded by part number: 86512371
|
