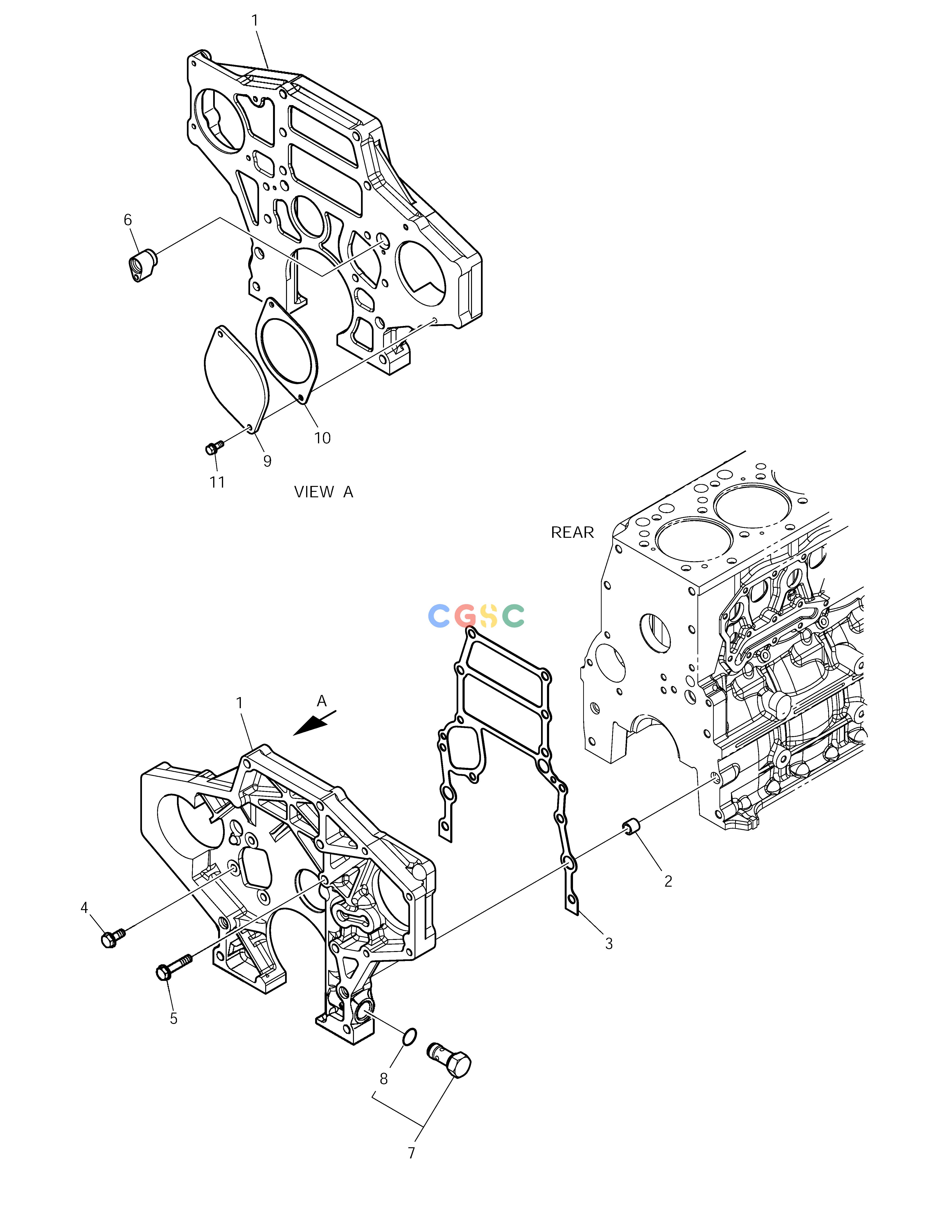

斗山零件查询TIMING GEAR CASE DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
441 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.01304-0029
|
[1] |
CASE;TIMING GEAR
|
|
| 10. |
65.38901-0018A
|
[1] |
GASKET;PTO
|
|
| 11. |
06.01943-3318
|
[2] |
BOLT ASS`Y M12X1.5X35
|
|
| 2. |
65.91710-0016
|
[2] |
RING;STOPPER
|
|
| 3. |
65.01903-0034
|
[1] |
GASKET
|
|
| 4. |
65.90020-0063B
|
[3] |
BOLT;HEX M10X25
|
|
| 5. |
65.90020-0080
|
[1] |
BOLT;COLLARED HEX
|
|
| 6. |
65.98130-0241
|
[1] |
ADAPTER
|
|
| 7. |
65.05401-5032
|
[1] |
RELIEF VALVE ASS'Y
|
410127-00040
|
| 7. |
410127-00040
|
[1] |
RELIEF VALVE ASS`Y
|
|
| 8. |
65.96501-0074
|
[1] |
. O-RING
|
|
| 9. |
65.91601-0011
|
[1] |
COVER
|
|
