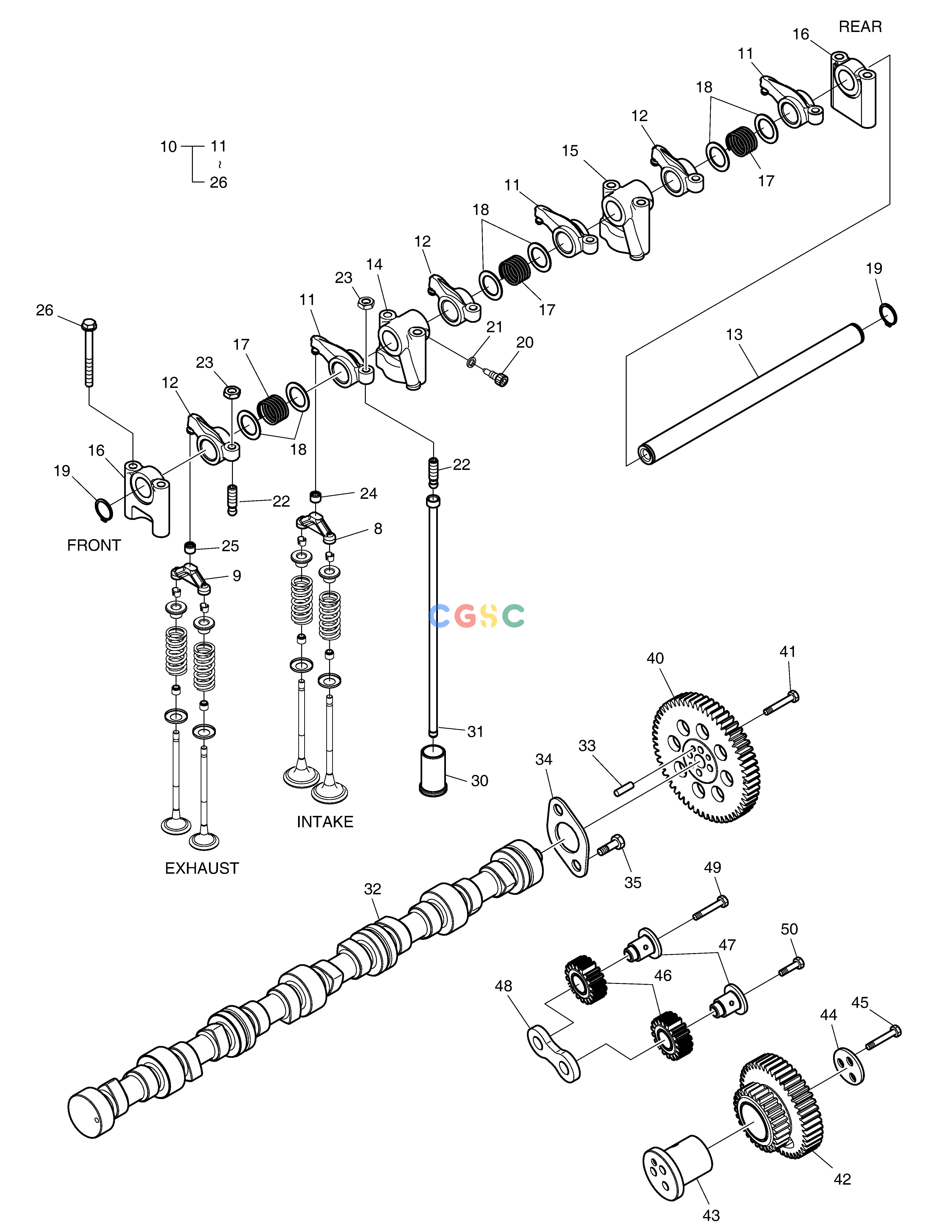

斗山零件查询TIMING SYSTEM DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
845 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 10. |
65.04200-6038B
|
[2] |
ROCKER ARM S/F ASS'Y
|
|
| 11. |
65.04201-5042B
|
[3] |
ROCKER ARM;INTAKE
|
|
| 12. |
65.04201-5043A
|
[3] |
ROCKER ARM;EXHAUST
|
|
| 13. |
65.04203-5020A
|
[1] |
. SHAFT;ROCKER ARM
|
|
| 14. |
65.04202-0033
|
[1] |
. BRACKET;ROCKER ARM
|
|
| 15. |
65.04202-0034
|
[1] |
. BRACKET;ROCKER ARM
|
|
| 16. |
65.04202-0035
|
[2] |
. BRACKET;ROCKER ARM
|
|
| 17. |
65.97601-0124
|
[3] |
. SPRING;COMPRESSION
|
|
| 18. |
65.90701-0136B
|
[6] |
. WASHER
|
|
| 19. |
06.29010-0120
|
[2] |
. RING;SNAP
|
|
| 20. |
65.90030-0018
|
[1] |
. BOLT;SOCKET
|
|
| 21. |
06.16110-0106
|
[1] |
. WASHER
|
|
| 22. |
65.04205-0014
|
[6] |
. SCREW;ADJUST
|
|
| 23. |
65.90501-0003
|
[6] |
. NUT
|
|
| 24. |
65.04209-0005
|
[3] |
CAP;ADJUST SCREW (INTAKE)
|
|
| 25. |
65.04209-0006
|
[3] |
. CAP;EXHAUST
|
|
| 26. |
65.90020-0120
|
[8] |
. BOLT;COLLARED HEX
|
|
| 30. |
65.04301-5003C
|
[12] |
TAPPET;VALVE
|
|
| 31. |
65.04302-5015
|
[12] |
ROD;PUSH
|
|
| 31. |
150123-00143
|
[12] |
PUSHROD
|
|
| 32. |
65.04401-0045A
|
[1] |
CAMSHAFT
|
|
| 33. |
06.22022-1016
|
[1] |
PIN;DOWEL
|
|
| 34. |
65.90720-0032
|
[1] |
WASHER;THRUST
|
|
| 35. |
06.01913-2911
|
[2] |
BOLT ASS`Y M6X16
|
|
| 40. |
65.04501-0017
|
[1] |
GEAR;CAM SHAFT
|
|
| 41. |
65.90020-0117
|
[4] |
BOLT;COLLARED HEX
|
|
| 42. |
65.04505-5018
|
[1] |
GEAR;IDLE
|
|
| 43. |
65.04506-0016
|
[1] |
PIN;IDLE GEAR
|
|
| 44. |
65.90720-0034B
|
[1] |
WASHER;THRUST
|
|
| 45. |
65.90020-0118
|
[3] |
BOLT;COLLARED HEX
|
|
| 46. |
65.11301-5002
|
[2] |
GEAR;DRIVE
|
|
| 47. |
65.04506-0015
|
[2] |
PIN;IDLE GEAR
|
|
| 48. |
65.90720-0033A
|
[1] |
WASHER;THRUST
|
|
| 49. |
65.90020-0118
|
[1] |
BOLT;COLLARED HEX
|
|
| 50. |
65.90020-0119
|
[1] |
BOLT;COLLARED HEX
|
|
| 8. |
65.04130-0009A
|
[6] |
CALIPER;INTAKE
|
|
| 9. |
65.04130-0011
|
[6] |
CALIPER;EXHAUST
|
|
