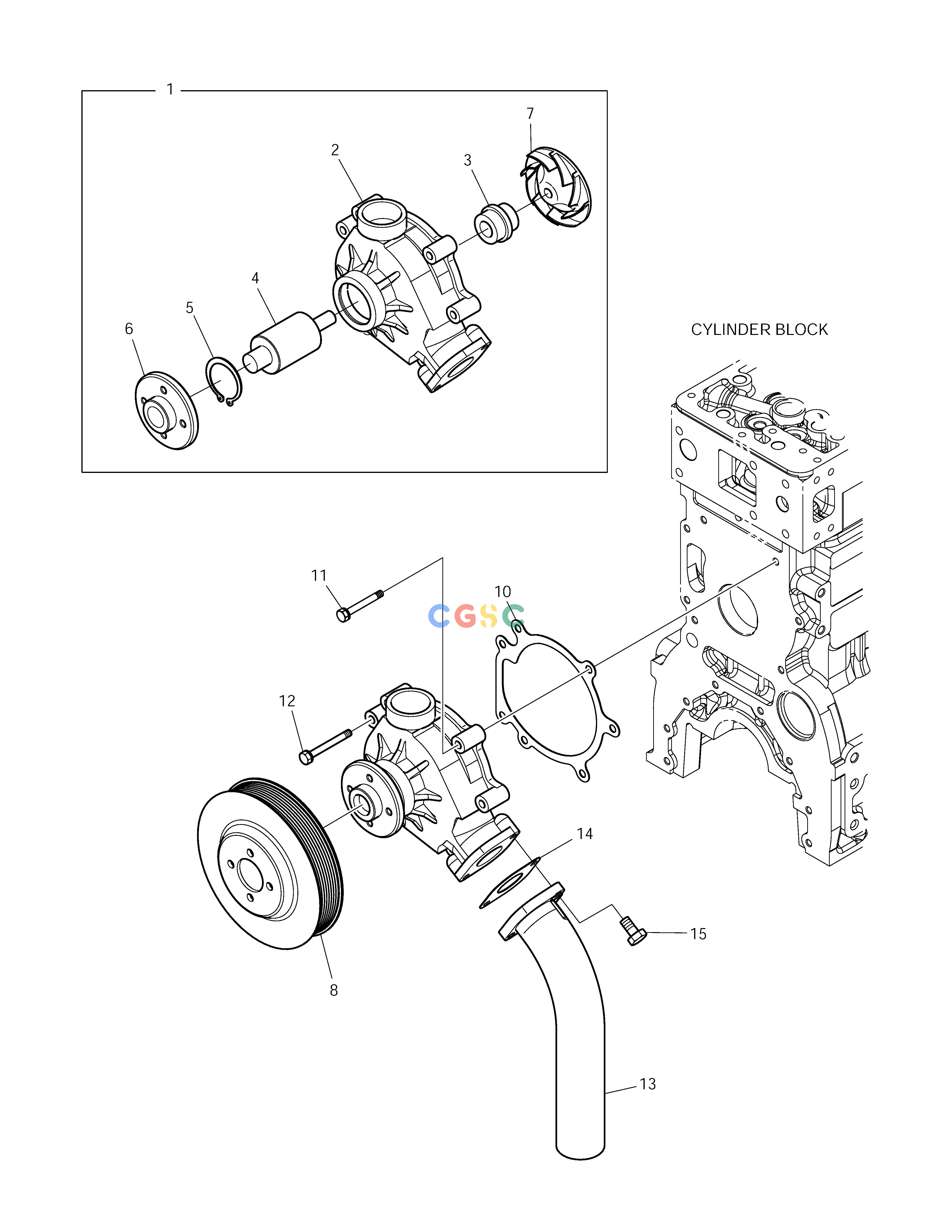

斗山零件查询WATER PUMP DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
427 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.06500-6271
|
[1] |
WATER PUMP ASS'Y
|
|
| 10. |
65.06901-0042
|
[1] |
GASKET;WATER PUMP
|
|
| 11. |
06.01913-3120
|
[5] |
BOLT ASS`Y M8X45
|
|
| 12. |
06.01913-3121
|
[2] |
BOLT ASS`Y M8X50
|
|
| 13. |
65.06301-0258A
|
[1] |
PIPE;COOLING WATER
|
|
| 14. |
65.06903-0029
|
[1] |
GASKET;WATER PIPE
|
|
| 15. |
06.01913-3117
|
[2] |
BOLT ASS`Y M8X30
|
|
| 2. |
65.06501-0300
|
[1] |
. HOUSING;WATER PUMP
|
|
| 3. |
65.06520-6007
|
[1] |
. SEAL;MECHANICAL
|
|
| 4. |
65.93410-0027
|
[1] |
BEARING
|
|
| 5. |
06.29020-0132
|
[1] |
. SNAP RING
|
|
| 6. |
65.06504-0033
|
[1] |
. HUB;V-BELT PULLEY
|
|
| 7. |
65.06506-0032
|
[1] |
IMPELLER;WATER PUMP
|
|
| 8. |
65.06503-0113
|
[1] |
PULLEY;V-BELT
|
|
