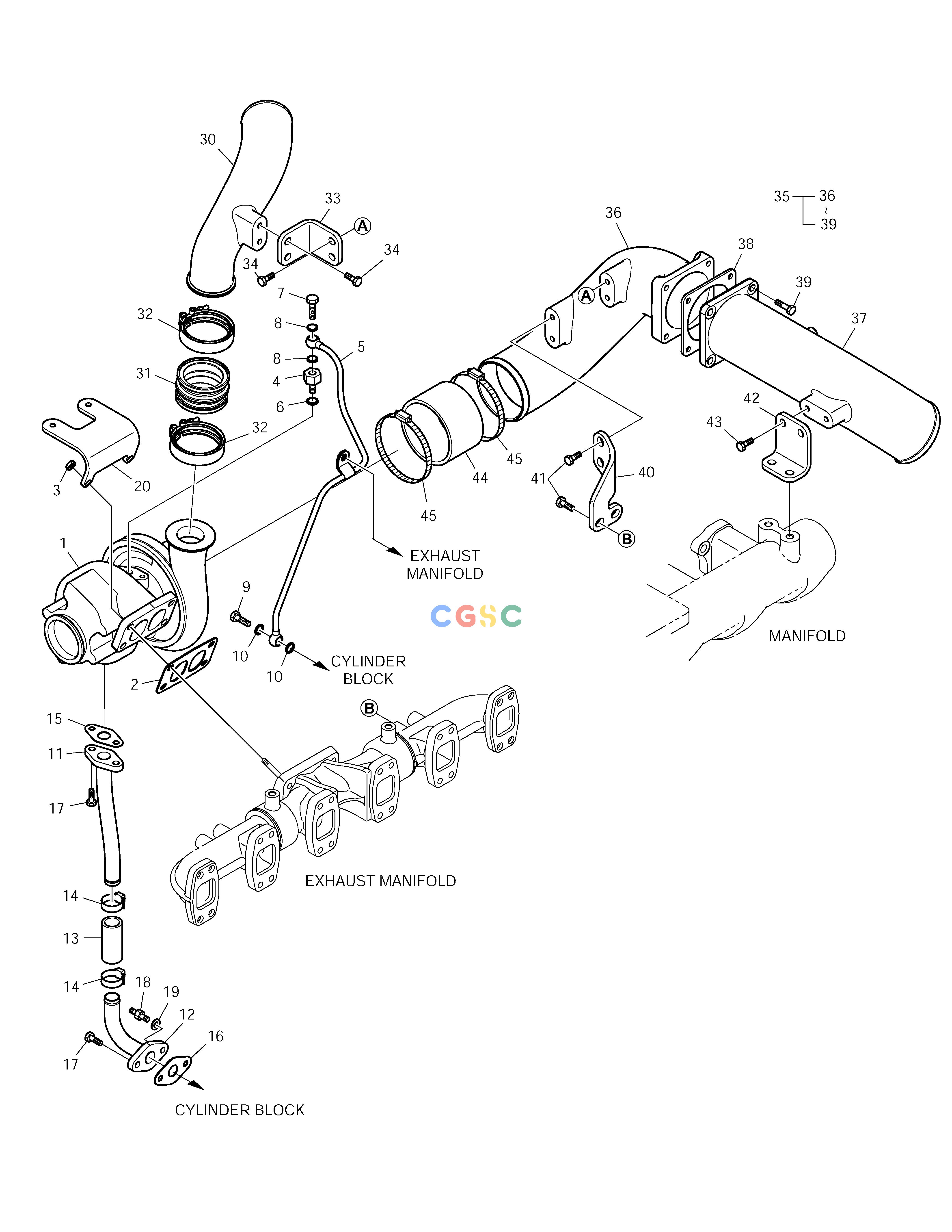

斗山零件查询TURBO CHARGER DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
471 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.09100-7110
|
[1] |
TURBOCHARGER ASS`Y
|
|
| 10. |
06.56190-0704
|
[2] |
. RING;SEAL
|
|
| 11. |
65.05701-5568
|
[1] |
PIPE;OIL
|
|
| 12. |
65.05701-5569
|
[1] |
PIPE;OIL
|
|
| 13. |
65.96301-0327A
|
[1] |
HOSE;RUBBER
|
|
| 14. |
06.67020-0104
|
[2] |
CLAMP;HOSE
|
|
| 15. |
65.96601-0067
|
[1] |
GASKET;T/C OIL RETURN
|
|
| 16. |
65.96601-0052
|
[1] |
GASKET
|
|
| 17. |
06.01913-3114
|
[3] |
BOLT ASS`Y M8X22
|
|
| 18. |
65.90201-0075
|
[1] |
BOLT;SPACER
|
|
| 19. |
06.16731-2107
|
[1] |
WASHER
|
|
| 2. |
65.09901-0018A
|
[1] |
GASKET
|
|
| 20. |
65.09140-0005
|
[1] |
BRACKET
|
|
| 3. |
65.90535-0001
|
[4] |
NUT
|
|
| 30. |
65.09411-5095
|
[1] |
PIPE;INLET
|
|
| 31. |
65.96301-6003
|
[1] |
HOSE;RUBBER
|
|
| 32. |
65.97450-5003
|
[2] |
CLAMP
|
|
| 33. |
65.09440-0058
|
[1] |
BRACKET
|
|
| 34. |
06.01923-3215
|
[4] |
BOLT ASS`Y M10X25
|
|
| 35. |
65.09411-7013
|
[1] |
INLET PIPE ASS'Y
|
|
| 36. |
65.09411-5104
|
[1] |
INLET
|
|
| 37. |
65.09411-5103
|
[1] |
INLET
|
|
| 38. |
65.09904-0009
|
[1] |
GASKET;AIR PIPE
|
|
| 39. |
06.01923-3218
|
[4] |
BOLT ASS`Y M10X35
|
|
| 4. |
65.98130-0200A
|
[1] |
ADAPTER
|
|
| 40. |
65.09440-0057
|
[1] |
BRACKET
|
|
| 41. |
06.01923-3215
|
[4] |
BOLT ASS`Y M10X25
|
|
| 42. |
65.09440-0056
|
[1] |
BRACKET
|
|
| 43. |
06.01923-3215
|
[4] |
BOLT ASS`Y M10X25
|
|
| 44. |
65.96301-0035
|
[1] |
HOSE;RUBBER
|
|
| 45. |
06.67020-0116
|
[2] |
CLAMP;HOSE
|
|
| 5. |
65.05701-5567
|
[1] |
PIPE;OIL
|
|
| 6. |
06.56190-0709
|
[1] |
SEAL;RING
|
|
| 7. |
06.78144-2403
|
[1] |
HOLLOW SCREW M12X1.5
|
|
| 8. |
06.56190-0704
|
[2] |
. RING;SEAL
|
|
| 9. |
06.78144-2403
|
[1] |
HOLLOW SCREW M12X1.5
|
|
