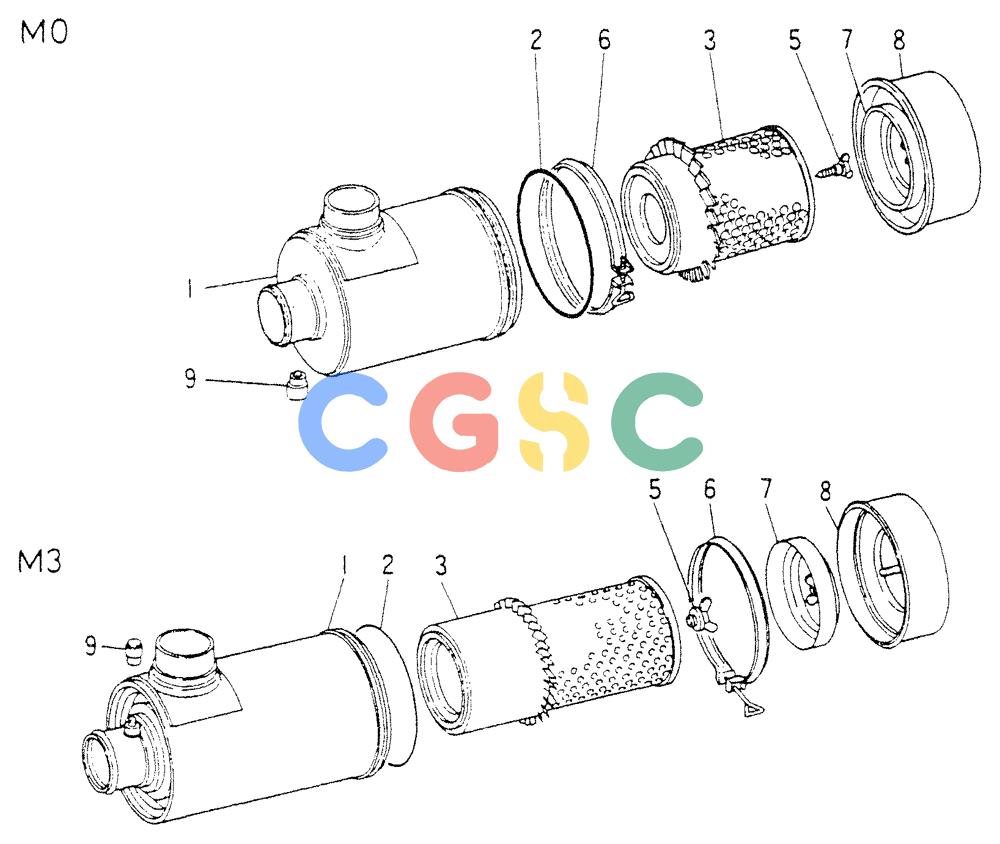

神钢零件查询(6D14) - MITSUBISHI DIESEL ENGINE - K904C, K907B, K907C & YS750-2 (1/77-12/06) (06-010) - AIR CLEANER (INNER PARTS) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
541 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-9. | VA3003070010 | [1] | AIR CLEANER | KOBAIR CLEANER ASSY (FOR M0) FF: PARTS |
| 1-9. | VA3093092030 | [1] | AIR CLEANER ASSY (FOR M3) : PARTS | |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONBODY,A/CLNR |
| 2. | VAMH035148 | [1] | O-RING | KOBO-RING |
| 3. | VAME060219 | [1] | AIR FILTER | KOBELEMENT,A/CLNR (FOR M0) Superseded by part number: EN11P00001S002 |
| 3. | VA3003084100 | [1] | ELEMENT,AIR CLEANER ELEMENT, A/CLNR OUTER (FOR M3) : PARTS | ELEMENT,AIR CLEANER ELEMENT, A/CLNR OUTER (FOR M3) : PARTS |
| 5. | VAME033350 | [1] | BOLT SCREW,WING (FOR M0) | BOLT SCREW,WING (FOR M0) |
| . . | VAME063304 | [1] | NUT | KOBNUT,WING (FOR M3) |
| 6. | VAME023605 | [1] | CLAMP CLAMP | CLAMP CLAMP |
| 7. | VA3113001314 | [1] | SCARF,BAFFLE | |
| 8. | VAME033347 | [1] | CUP DUST CUP,A/CLNR (FOR M0) | CUP DUST CUP,A/CLNR (FOR M0) |
| 8. | VA3113001315 | [1] | CUP,A/CLNR (FOR M3) : PARTS | |
| . . | VA3083030800 | [1] | PLATE,CAUTION : PARTS | |
| 9. | VA3123011300 | [1] | INDICATOR | KOBINDICATOR,DUST |
