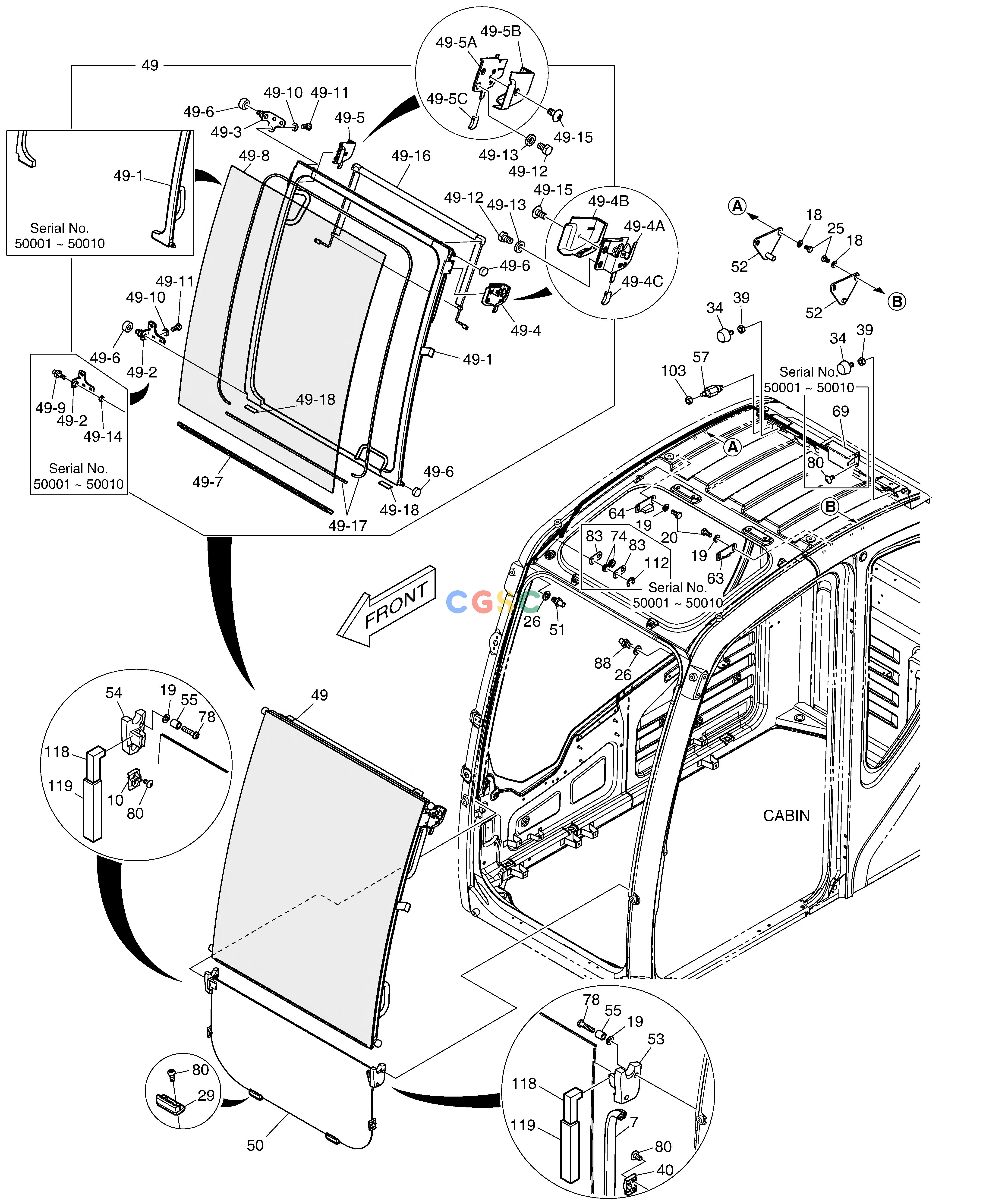

斗山零件查询CABIN(2) DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
728 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
622-00351J
|
[1] |
CABIN ASS'Y
|
622-00351K
|
| -. |
622-00351K
|
[1] |
CABIN ASS'Y
|
622-00351M
|
| -. |
622-00351M
|
[1] |
CABIN ASS'Y
|
|
| 10. |
416-00018A
|
[1] |
STOPPER;GLASS LOWER RH
|
|
| 103. |
S4034833
|
[1] |
NUT
|
|
| 112. |
S6540600
|
[2] |
RING;RETAINING
|
|
| 118. |
K1027768
|
[2] |
FOAM
|
|
| 119. |
K1027769
|
[2] |
FOAM
|
|
| 18. |
2114-1898D14
|
[4] |
WASHER
|
|
| 19. |
2114-1898D3
|
[8] |
WASHER
|
|
| 20. |
2120-2166D28
|
[4] |
. BOLT
|
|
| 25. |
2120-2166D12
|
[4] |
BOLT
|
|
| 26. |
2114-1898D6
|
[2] |
WASHER
|
|
| 29. |
416-00019B
|
[2] |
STOPPER;LOWER
|
|
| 34. |
161-00195
|
[2] |
STOPPER
|
|
| 39. |
2121-1311D4
|
[2] |
NUT
|
|
| 40. |
416-00020
|
[1] |
STOPPER;GLASS LOWER LH
|
|
| 49. |
622-00359J
|
[1] |
DOOR;SLIDE
|
|
| 49. |
622-00359K
|
[1] |
DOOR;SLIDE
|
|
| 49-1. |
622-00360H
|
[1] |
PANEL ASS'Y
|
|
| 49-1. |
K1033991
|
[1] |
PANEL ASS'Y
|
|
| 49-10. |
2114-1898D3
|
[6] |
WASHER
|
|
| 49-11. |
2120-2166D28
|
[6] |
. BOLT
|
|
| 49-12. |
2120-2166D12
|
[4] |
BOLT
|
|
| 49-13. |
2114-1898D2
|
[4] |
WASHER
|
|
| 49-14. |
2121-1311D2
|
[1] |
NUT
|
|
| 49-15. |
2120-2166D52
|
[2] |
. BOLT
|
|
| 49-16. |
474-00044A
|
[1] |
. SUN SCREEN,FRONT
|
|
| 49-17. |
K1002638A
|
[1] |
DAMPER
|
|
| 49-17. |
K1036967
|
[1] |
DAMPER
|
|
| 49-18. |
K1006368
|
[2] |
. RUBBER
|
|
| 49-2. |
195-02739B
|
[1] |
BRACKET;RH LOWER ROLLER
|
|
| 49-2. |
195-02739C
|
[1] |
. BRACKET
|
|
| 49-3. |
195-02740C
|
[1] |
BRACKET;RH ROLLER UPPER
|
|
| 49-3. |
195-02740E
|
[1] |
. BRACKET
|
|
| 49-4. |
125-00096A
|
[1] |
CATCH ASS'Y;SLIDE DOOR LH
|
|
| 49-4A. |
125-00073B
|
[1] |
.. CATCH;LH
|
|
| 49-4B. |
621-03724
|
[1] |
.. COVER,CATCH(L.H)
|
|
| 49-4C. |
133-00248
|
[1] |
.. KNOB,SLIDE DOOR CATCH
|
|
| 49-5. |
125-00097A
|
[1] |
CATCH ASM;SLIDE DOOR RH
|
|
| 49-5A. |
125-00074B
|
[1] |
.. CATCH;RH
|
|
| 49-5B. |
621-03725
|
[1] |
.. COVER,CATCH(R.H)
|
|
| 49-5C. |
133-00248
|
[1] |
.. KNOB,SLIDE DOOR CATCH
|
|
| 49-6. |
270-00054B
|
[4] |
ROLLER
|
|
| 49-7. |
505-00016B
|
[1] |
BAR
|
|
| 49-7. |
K1036331
|
[1] |
. BAR
|
|
| 49-8. |
903-00076B
|
[1] |
GLASS;FRONT UPPER
|
|
| 49-8. |
K1033880
|
[1] |
. GLASS;FRONT UPPER
|
|
| 49-9. |
123-00522B
|
[1] |
PIN;SLIDE ROLLER RH LOWER
|
|
| 50. |
903-00074A
|
[1] |
GLASS,FRONT LOWER
|
|
| 51. |
142-00128B
|
[1] |
STRIKER
|
|
| 52. |
142-00127C
|
[2] |
STRIKER
|
|
| 53. |
116-00089B
|
[1] |
STOPPER;RUBBER LH
|
|
| 54. |
116-00090B
|
[1] |
STOPPER;RUBBER RH
|
|
| 55. |
2140-1338
|
[4] |
PIPE,SPACER
|
|
| 57. |
549-00086
|
[1] |
SWITCH
|
|
| 63. |
161-00618B
|
[1] |
STOPPER
|
|
| 64. |
161-00619B
|
[1] |
STOPPER
|
|
| 69. |
129-00155
|
[1] |
SPRING;ASSIST
|
|
| 7. |
162-00034B
|
[1] |
STRIP,WEATHER
|
|
| 74. |
270-00062A
|
[2] |
ROLLER;ASSIST CABLE
|
|
| 78. |
S3450993
|
[4] |
SCREW
|
|
| 80. |
2120-2166D52
|
[10] |
. BOLT
|
|
| 80. |
2120-2166D52
|
[8] |
. BOLT
|
|
| 83. |
191-03734A
|
[2] |
PLATE;WASHER
|
|
| 88. |
K1003284
|
[1] |
STRIKER
|
|
