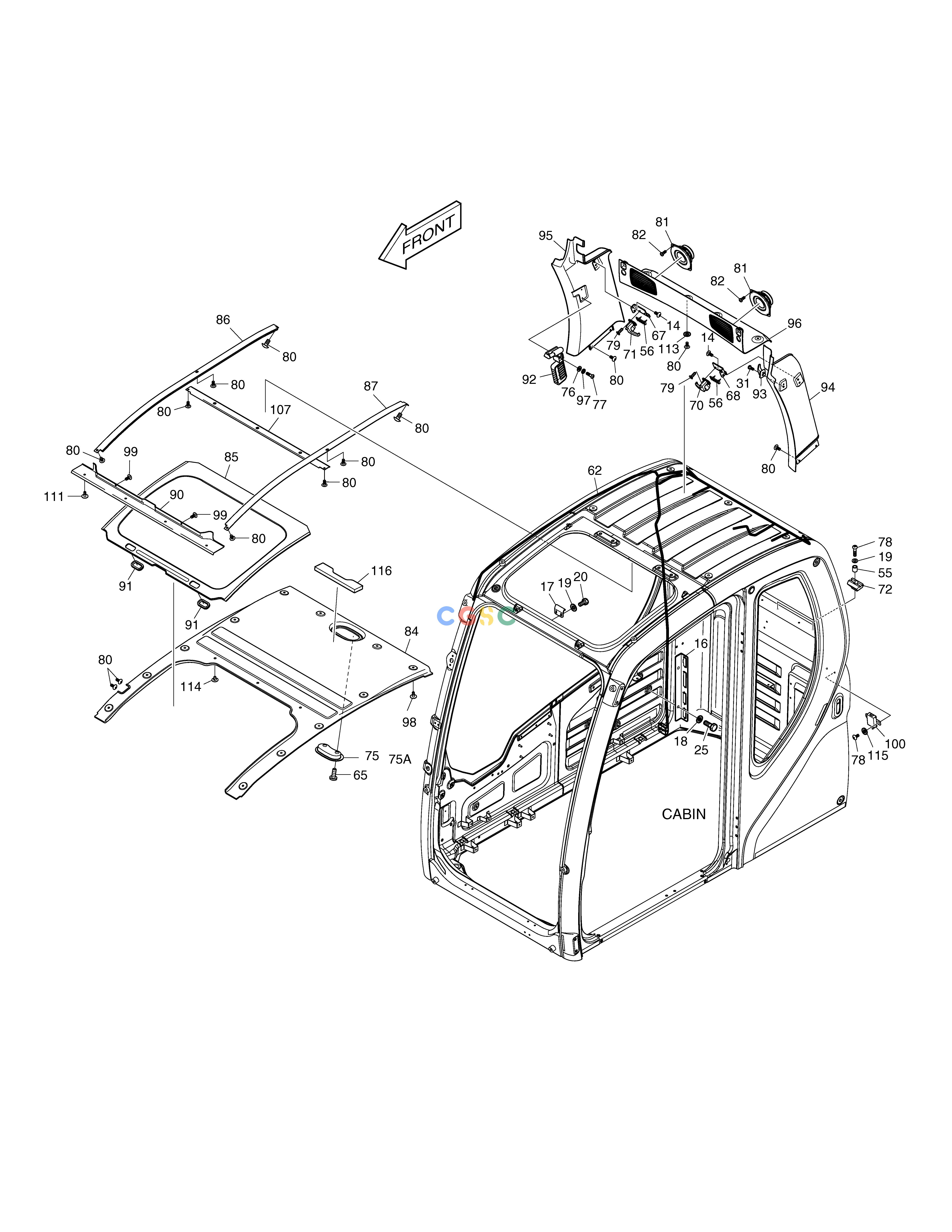

斗山零件查询CABIN(3) DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
300 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
622-00351J
|
[1] |
CABIN ASS'Y
|
622-00351K
|
| -. |
622-00351K
|
[1] |
CABIN ASS'Y
|
622-00351M
|
| -. |
622-00351M
|
[1] |
CABIN ASS'Y
|
|
| 100. |
K1002641
|
[1] |
MODULE ASS`Y
|
|
| 107. |
K1003676B
|
[1] |
PLATE
|
|
| 111. |
2120-2166D53
|
[4] |
. SCREW
|
|
| 113. |
2114-1898D5
|
[4] |
WASHER
|
|
| 114. |
K1006933
|
[3] |
SCRIVET
|
|
| 115. |
S5010313
|
[2] |
WASHER
|
|
| 116. |
K1010839
|
[1] |
FORM
|
|
| 14. |
2120-2166D10
|
[4] |
SCREW
|
|
| 16. |
191-03179A
|
[1] |
PLATE;CONNECTOR
|
|
| 17. |
191-03166C
|
[1] |
STRIKER PLATE ROOF
|
|
| 18. |
2114-1898D14
|
[2] |
WASHER
|
|
| 19. |
2114-1898D3
|
[4] |
WASHER
|
|
| 20. |
2120-2166D28
|
[2] |
. BOLT
|
|
| 25. |
2120-2166D12
|
[2] |
BOLT
|
|
| 31. |
2120-2166D7
|
[1] |
SCREW
|
|
| 55. |
2140-1338
|
[2] |
PIPE,SPACER
|
|
| 56. |
K1000794
|
[2] |
STOPPER,RUBBER
|
|
| 62. |
530-00417B
|
[1] |
HARNESS;CABIN
|
|
| 65. |
S3458843
|
[2] |
SCREW
|
|
| 67. |
621-03113B
|
[1] |
PLATE;STOPPER (R.H)
|
|
| 68. |
621-03114B
|
[1] |
PLATE;STOPPER (L.H)
|
|
| 70. |
125-00077
|
[1] |
LOCK,REAR GLASS (L.H)
|
|
| 71. |
125-00078
|
[1] |
LOCK,REAR GLASS (R.H)
|
|
| 72. |
2161-2212
|
[2] |
STOPPER,RUBBER
|
|
| 75. |
534-00079
|
[1] |
ROOM LAMP
|
|
| 75A. |
2515-1021D1
|
[1] |
. BULB
|
|
| 76. |
2114-1898D13
|
[2] |
WASHER
|
|
| 77. |
2120-2166D26
|
[2] |
SCREW
|
|
| 78. |
S3450993
|
[4] |
SCREW
|
|
| 79. |
S3452853
|
[4] |
SCREW
|
|
| 80. |
2120-2166D52
|
[20] |
. BOLT
|
|
| 81. |
2541-9020
|
[2] |
SPEAKER
|
|
| 82. |
S3450833
|
[8] |
BOLT
|
|
| 84. |
161-00609C
|
[1] |
PAD;ROOF REAR
|
|
| 84. |
161-00609E
|
[1] |
PAD;ROOF REAR
|
|
| 85. |
161-00610E
|
[1] |
PAD;ROOF CENTER
|
|
| 86. |
359-00022A
|
[1] |
RAIL,ROOF PANEL(R.H)
|
|
| 87. |
359-00021A
|
[1] |
RAIL;ROOF PANEL(L.H)
|
|
| 90. |
161-00613B
|
[1] |
PAD;ROOF FRONT
|
|
| 91. |
172-00055A
|
[2] |
HANDLE,ROOF
|
|
| 92. |
2199-9058
|
[1] |
HAMMER
|
|
| 93. |
2150-1133
|
[1] |
HOOK,COAT
|
|
| 94. |
621-02910C
|
[1] |
COVER;PILLAR LH
|
|
| 95. |
621-02911C
|
[1] |
COVER;PILLAR RH
|
|
| 96. |
621-02912B
|
[1] |
COVER;REAR UPPER
|
|
| 97. |
2114-2031D1
|
[2] |
WASHER
|
|
| 98. |
K1006936
|
[12] |
SCRIVET
|
|
| 99. |
2120-2166D18
|
[2] |
SCREW
|
|
