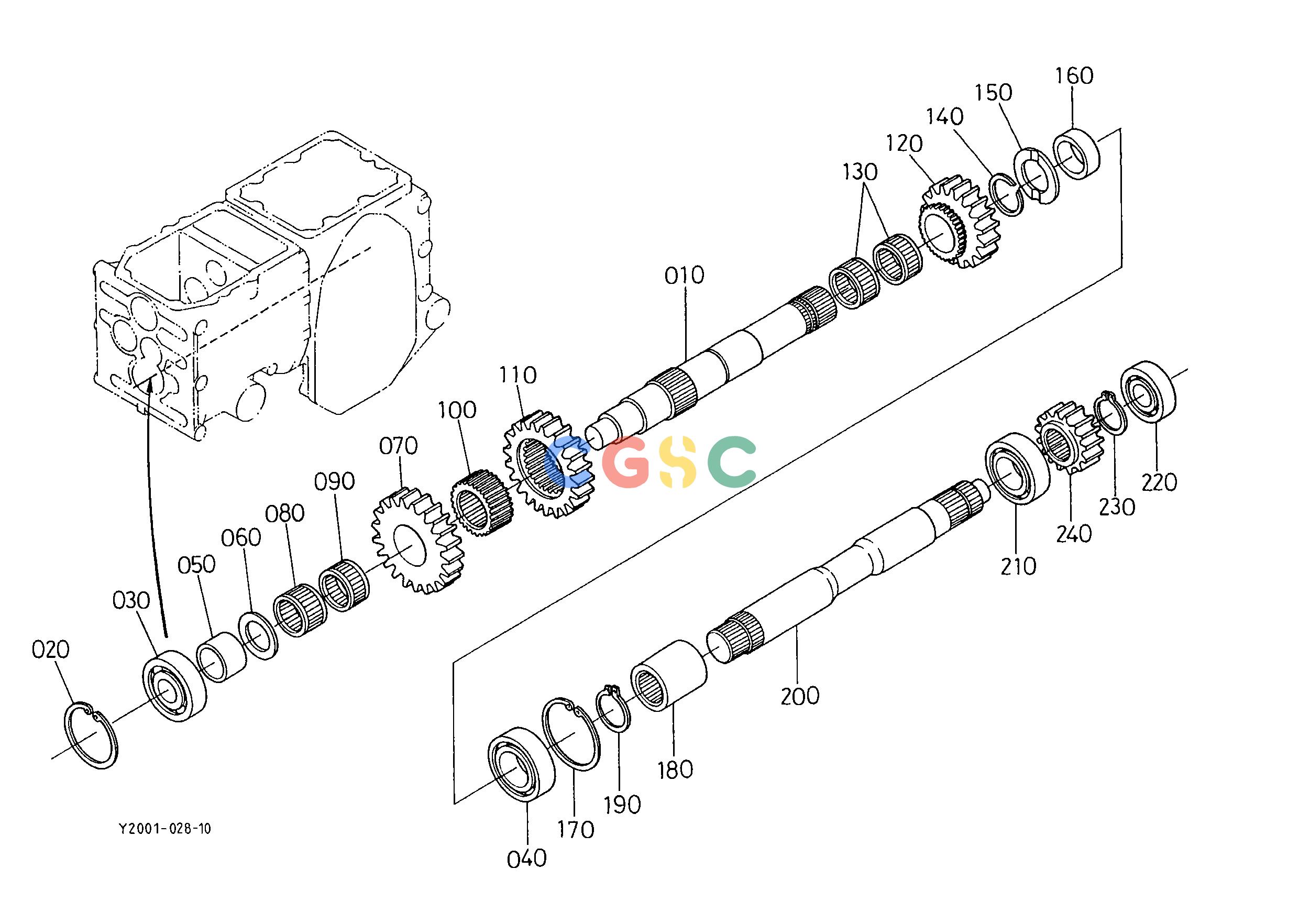

久保田零件查询T05500 3RD SHAFT/5TH SHAFT TRANSMISSIONEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
738 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6641714310
|
[1] |
SHAFT THIRD
|
1.4300(lbs); 0.650
|
| 020. |
0461100470
|
[1] |
CIR CLIP INTERNAL
|
0.0132(lbs); 0.006
|
| 030. |
0810106303
|
[1] |
BEARING BALL
|
0.2464(lbs); 0.112
|
| 040. |
0810106205
|
[1] |
BEARING BALL
|
0.2640(lbs); 0.120
|
| 050. |
6620414330
|
[1] |
COLLAR SHAFT
|
0.0660(lbs); 0.030
|
| 060. |
6620414260
|
[1] |
COLLAR SHAFT
|
0.0154(lbs); 0.007
|
| 070. |
6706114320
|
[1] |
GEAR FRONT SHAFT
|
0.8140(lbs); 0.370
|
| 080. |
0882252913
|
[1] |
BEARING NEEDLE
|
0.0440(lbs); 0.020
|
| 090. |
0882252913
|
[1] |
BEARING NEEDLE
|
0.0440(lbs); 0.020
|
| 100. |
6706114340
|
[1] |
BOSS SPLINE
|
0.2200(lbs); 0.100
|
| 110. |
6706114352
|
[1] |
GEAR
|
0.6380(lbs); 0.290
|
| 120. |
6706114360
|
[1] |
GEAR
|
0.5280(lbs); 0.240
|
| 130. |
0882252913
|
[2] |
BEARING NEEDLE
|
0.0440(lbs); 0.020
|
| 140. |
6706114370
|
[1] |
CIR-CLIP
|
0.0044(lbs); 0.002
|
| 150. |
6706114380
|
[1] |
COLLAR
|
0.0220(lbs); 0.010
|
| 160. |
6706114390
|
[1] |
SPACER
|
0.0440(lbs); 0.020
|
| 170. |
0461100520
|
[1] |
CIR CLIP INTERNAL
|
0.0198(lbs); 0.009
|
| 180. |
6661114370
|
[1] |
BOSS SPLINE
|
0.2816(lbs); 0.128
|
| 190. |
0461200240
|
[1] |
CIRCLIP EXTERNAL
|
0.0044(lbs); 0.002
|
| 200. |
6641714510
|
[1] |
SHAFT FIFTH
|
2.5520(lbs); 1.160
|
| 210. |
6712156760
|
[1] |
BEARING BALL
|
0.0000(lbs); 0.000
|
| 210. |
6712156770
|
[1] |
BEARING BALL
|
0.2794(lbs); 0.127
|
| 220. |
6731114530
|
[1] |
BEARING BALL
|
0.2420(lbs); 0.110
|
| 230. |
0461200250
|
[1] |
CIRCLIP EXTERNAL
|
0.0044(lbs); 0.002
|
| 240. |
6620414510
|
[1] |
GEAR
|
0.2970(lbs); 0.135
|
