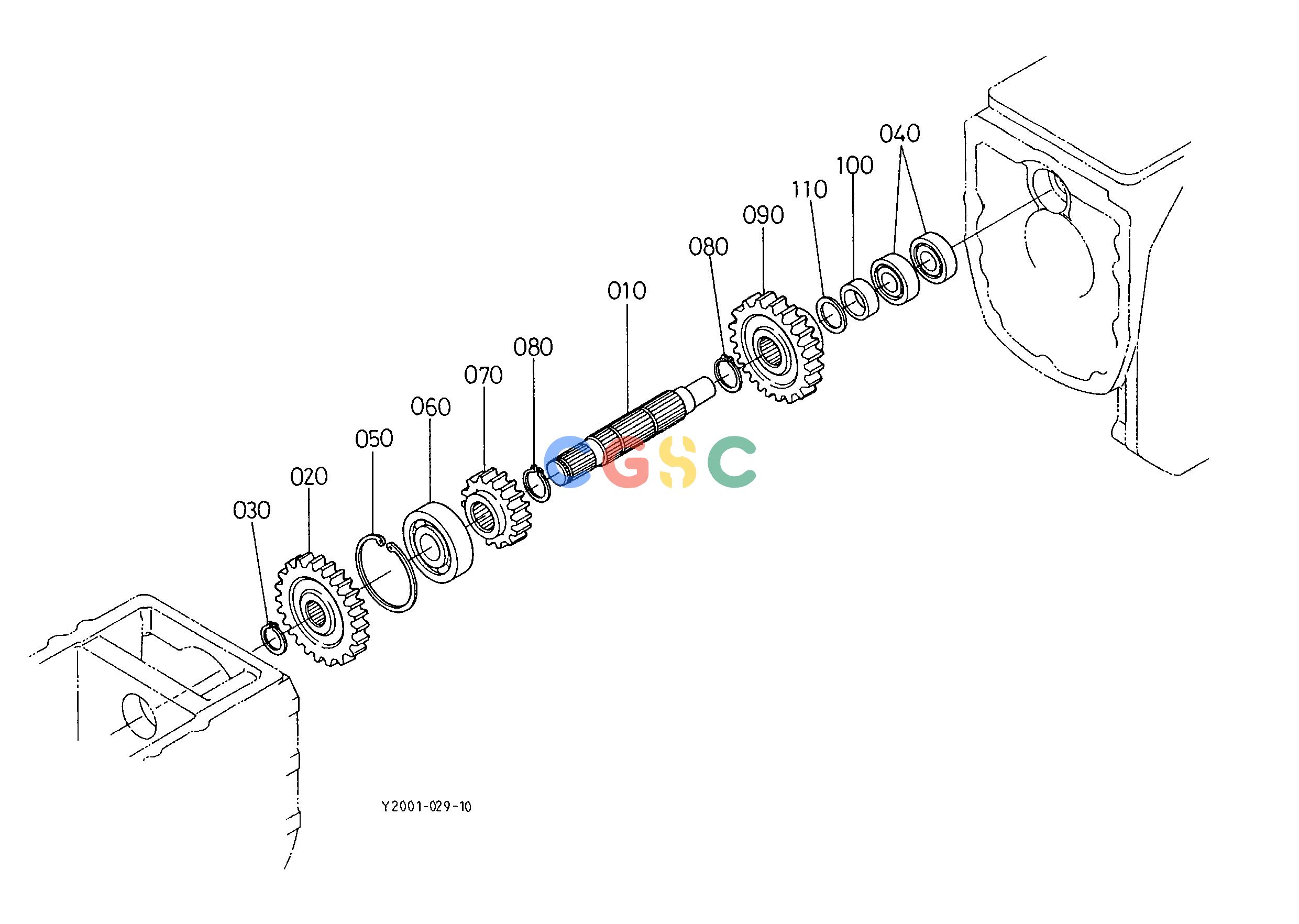

久保田零件查询T05600 4TH SHAFT TRANSMISSIONEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
775 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6620414410
|
[1] |
SHAFT FOURTH
|
0.7700(lbs); 0.350
|
| 020. |
6620414420
|
[1] |
GEAR
|
0.6820(lbs); 0.310
|
| 030. |
0461200200
|
[1] |
CIRCLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 040. |
0810106202
|
[2] |
BEARING BALL
|
0.0968(lbs); 0.044
|
| 050. |
0461100520
|
[1] |
CIR CLIP INTERNAL
|
0.0198(lbs); 0.009
|
| 060. |
0810106304
|
[1] |
BEARING BALL
|
0.3212(lbs); 0.146
|
| 070. |
6620414430
|
[1] |
GEAR
|
0.3190(lbs); 0.145
|
| 080. |
0461200220
|
[2] |
CIRCLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 090. |
6620414440
|
[1] |
GEAR REAR SHAFT
|
0.7700(lbs); 0.350
|
| 100. |
6661114470
|
[1] |
COLLAR
|
0.0418(lbs); 0.019
|
| 110. |
6620481410
|
[1] |
SHIM A
|
0.0022(lbs); 0.001
|
| 110. |
6620481420
|
[1] |
SHIM B
|
0.0022(lbs); 0.001
|
