斗山零件查询CONTROL STAND - L.H. DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
564 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

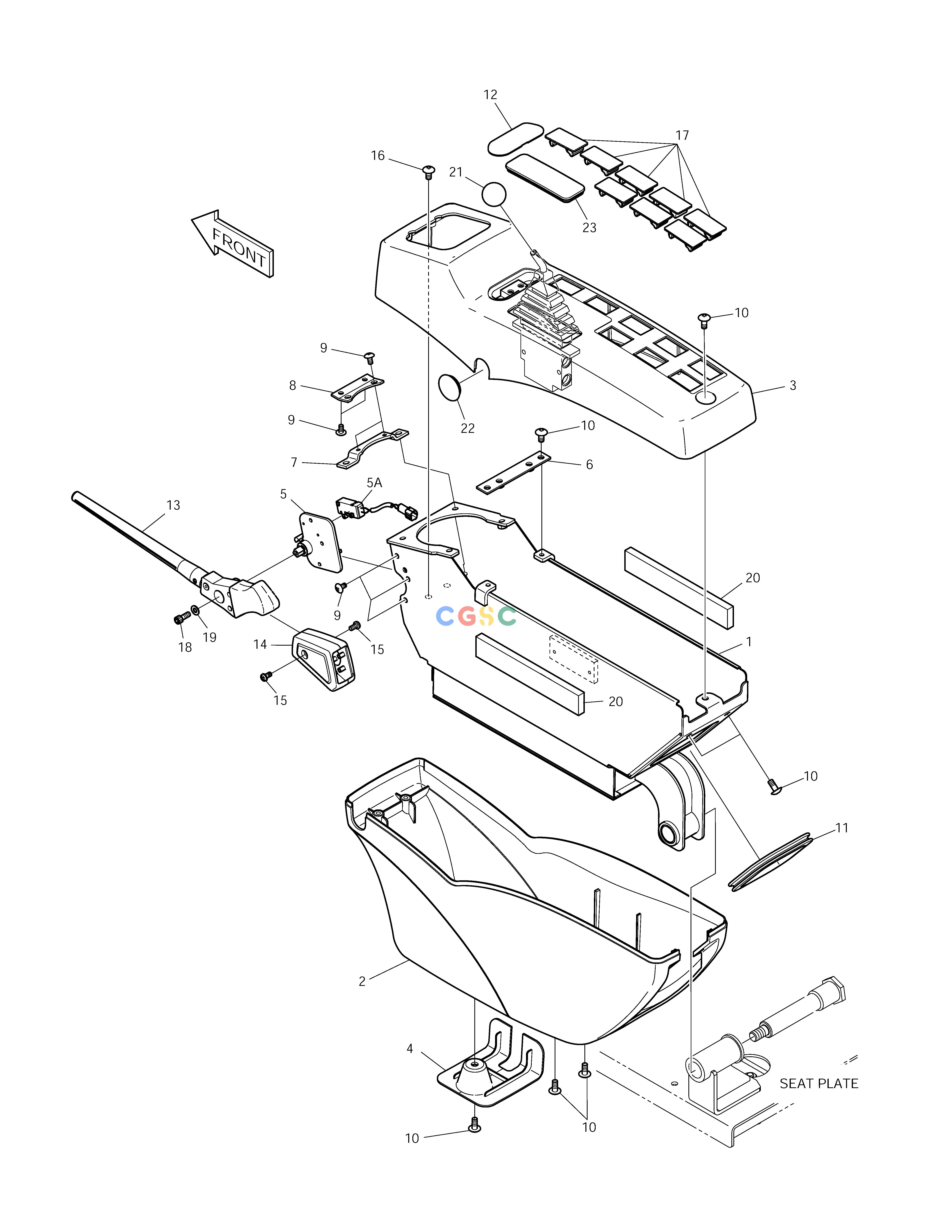

K1026373B
|
[-] |
CONTROL STAND L.H.
|
|
| 1. |
K1015268
|
[1] |
BRACKET;STAND LH
|
|
| 10. |
2120-2166D10
|
[10] |
SCREW
|
|
| 11. |
K1001023
|
[1] |
STRIP,WEATHER
|
|
| 12. |
621-03733C
|
[1] |
COVER
|
|
| 13. |
K1000840
|
[1] |
LEVER
|
K1000840A
|
| 13. |
K1000840A
|
[1] |
LEVER
|
|
| 14. |
K1000842A
|
[1] |
COVER
|
|
| 15. |
S3450823
|
[2] |
SCREW
|
|
| 16. |
2120-2166D52
|
[2] |
. BOLT
|
|
| 17. |
621-02801
|
[8] |
COVER,SWITCH
|
|
| 18. |
S2202966
|
[1] |
BOLT;SOCKET
|
|
| 19. |
2114-1898D4
|
[1] |
WASHER
|
|
| 2. |
621-02901B
|
[1] |
COVER;STAND LH LOWER
|
|
| 20. |
K1010466
|
[2] |
FORM
|
|
| 21. |
132-00021
|
[1] |
GRIP
|
|
| 22. |
K1026908
|
[1] |
BUSHING;RUBBER
|
|
| 23. |
K1026909
|
[1] |
BUSHING;RUBBER
|
|
| 3. |
621-02899G
|
[1] |
COVER;STAND LH UPPER
|
|
| 4. |
621-03014B
|
[1] |
COVER;STAND LOW
|
|
| 5. |
195-02868C
|
[1] |
BRACKET,SAFETY
|
|
| 5A. |
549-00089
|
[1] |
. SWITCH,MICRO
|
|
| 6. |
621-02957A
|
[1] |
PLATE;STAND MOUNT
|
621-02957B
|
| 6. |
621-02957B
|
[1] |
PLATE,STAND MOUNT
|
|
| 7. |
159-00290A
|
[1] |
PLATE
|
159-00290B
|
| 7. |
159-00290B
|
[1] |
PLATE
|
|
| 8. |
159-00287B
|
[1] |
PLATE;COVER MOUNT
|
|
| 8. |
159-00287A
|
[1] |
PLATE;COVER MOUNT
|
159-00287B
|
| 9. |
2120-2166D53
|
[7] |
. SCREW
|
|
