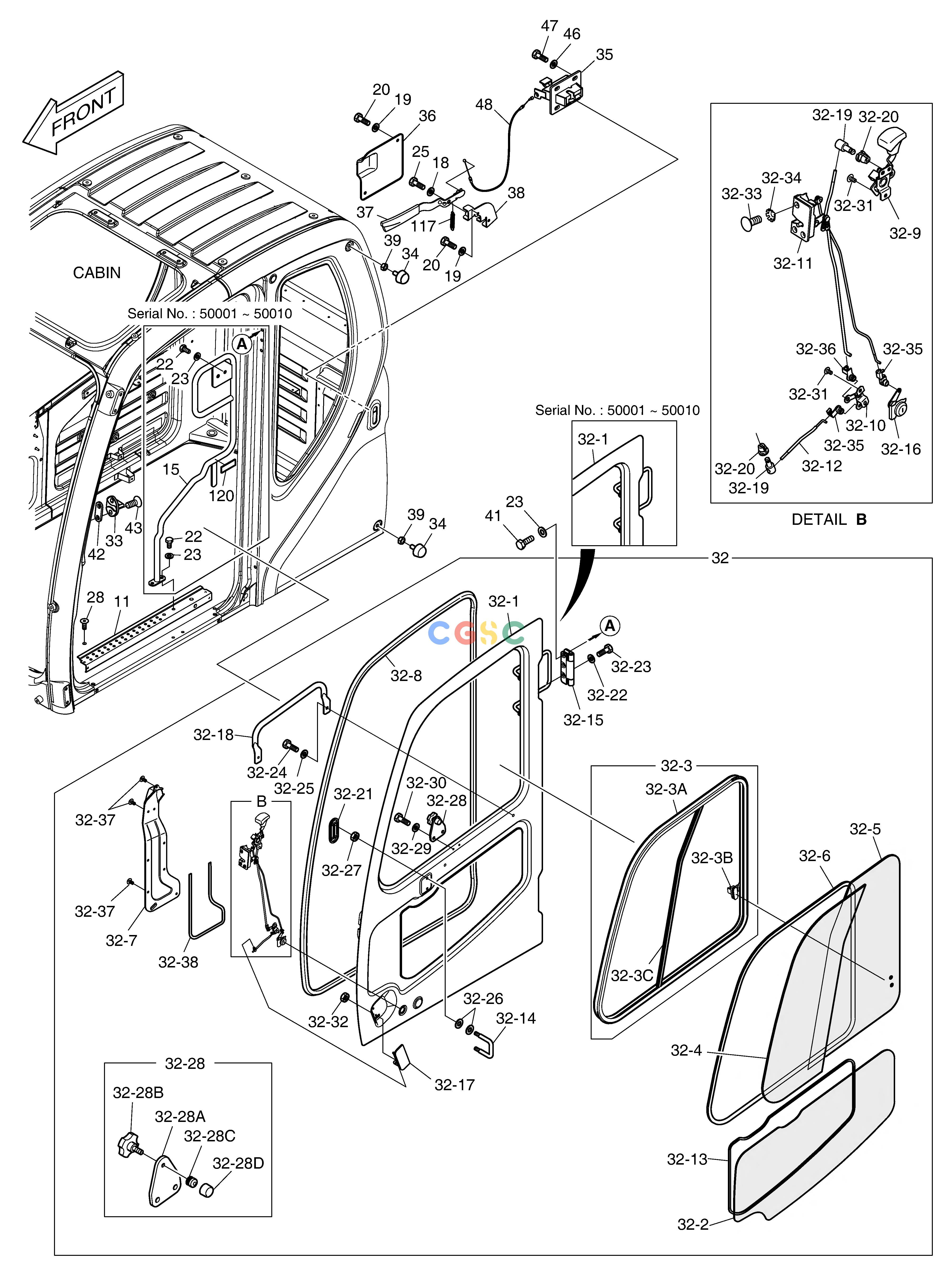

斗山零件查询CABIN(4) DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
179 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
622-00351J
|
[1] |
CABIN ASS'Y
|
622-00351K
|
| -. |
622-00351K
|
[1] |
CABIN ASS'Y
|
622-00351M
|
| -. |
622-00351M
|
[1] |
CABIN ASS'Y
|
|
| 11. |
625-00159B
|
[1] |
STEP,CABIN DOOR
|
|
| 117. |
2129-1446
|
[1] |
SPRING
|
|
| 120. |
K1006368
|
[1] |
. RUBBER
|
|
| 15. |
172-00052E
|
[1] |
HANDLE;INNER
|
|
| 18. |
2114-1898D14
|
[1] |
WASHER
|
|
| 19. |
2114-1898D3
|
[4] |
WASHER
|
|
| 20. |
2120-2166D28
|
[4] |
. BOLT
|
|
| 22. |
2120-2166D4
|
[4] |
BOLT
|
|
| 23. |
2114-1898D15
|
[10] |
WASHER
|
|
| 23. |
2114-1898D15
|
[6] |
WASHER
|
|
| 25. |
2120-2166D12
|
[1] |
BOLT
|
|
| 28. |
2120-2150D3
|
[4] |
SCREW
|
|
| 32. |
622-00353G
|
[1] |
DOOR ASS'Y
|
622-00353H
|
| 32. |
622-00353H
|
[1] |
DOOR ASS'Y
|
|
| 32-1. |
NA00434
|
[1] |
. DOOR;BODY
|
|
| 32-10. |
137-00092
|
[1] |
. LINK,DOOR INNER
|
|
| 32-11. |
125-00072
|
[1] |
. CATCH ASSY,DOOR INNER
|
|
| 32-12. |
136-00055A
|
[1] |
. ROD,OUTER HANDLE
|
|
| 32-13. |
K1002637
|
[1] |
. DAMPER
|
|
| 32-14. |
2150-1132A
|
[1] |
. HOOK,CATCH DOOR
|
|
| 32-15. |
K1027765
|
[2] |
. HINGE ASSY,DOOR
|
|
| 32-16. |
K1003900
|
[1] |
KEY ASS'Y;DOOR
|
|
| 32-17. |
2172-9021
|
[1] |
. HANDLE,OUTER
|
|
| 32-18. |
145-00124A
|
[1] |
. STAY
|
|
| 32-19. |
2123-2247
|
[2] |
. PIN
|
|
| 32-2. |
903-00069A
|
[1] |
. GLASS,DOOR LOWER
|
|
| 32-20. |
2124-1689A
|
[2] |
. SNAP
|
|
| 32-21. |
621-02867A
|
[1] |
. COVER,DOOR INNER
|
|
| 32-22. |
2114-1898D15
|
[6] |
WASHER
|
|
| 32-23. |
2120-2166D1
|
[6] |
BOLT
|
|
| 32-24. |
2120-2166D5
|
[2] |
BOLT
|
|
| 32-25. |
2114-1898D2
|
[2] |
WASHER
|
|
| 32-26. |
2891-1311
|
[4] |
. PLATE
|
|
| 32-27. |
S4012533
|
[2] |
NUT
|
|
| 32-28. |
161-00621B
|
[1] |
. STOPPER,RUBBER
|
|
| 32-28A. |
191-03283
|
[1] |
.. PLATE,STOPPER
|
|
| 32-28B. |
4132-1138
|
[1] |
.. KNOB
|
|
| 32-28C. |
161-00620
|
[1] |
.. RUBBER,STOPPER
|
|
| 32-28D. |
116-00092A
|
[1] |
.. STOPPER
|
|
| 32-29. |
2114-1898D3
|
[2] |
WASHER
|
|
| 32-3. |
622-00355A
|
[1] |
. SASH ASSY
|
|
| 32-30. |
2120-2166D28
|
[2] |
. BOLT
|
|
| 32-31. |
2120-2166D52
|
[5] |
. BOLT
|
|
| 32-32. |
S4012333
|
[2] |
NUT
|
|
| 32-33. |
2120-2150D3
|
[3] |
SCREW
|
|
| 32-34. |
S5210303
|
[3] |
. WASHER
|
|
| 32-35. |
124-00010
|
[2] |
. CLIP,ROD
|
|
| 32-36. |
124-00344
|
[1] |
. CLIP,ROD
|
|
| 32-37. |
2120-2166D53
|
[8] |
. SCREW
|
|
| 32-38. |
K1006370
|
[1] |
. FOAM
|
|
| 32-3A. |
622-00356
|
[1] |
.. FRAME ASSY,SASH
|
|
| 32-3B. |
2123-6119
|
[1] |
.. LOCK,SASH
|
|
| 32-3C. |
162-00033A
|
[1] |
.. BAR,CENTER
|
|
| 32-4. |
903-00070B
|
[1] |
. GLASS,SASH FRONT
|
|
| 32-5. |
903-00071B
|
[1] |
. GLASS,SASH REAR
|
|
| 32-6. |
161-00623
|
[1] |
. TRIM
|
|
| 32-7. |
621-02869B
|
[1] |
COVER;LOCK
|
|
| 32-8. |
198-00053A
|
[1] |
. RUBBER TRIM,DOOR INNER
|
|
| 32-9. |
133-00221
|
[1] |
. LEVER ASSY,INNER HANDLE
|
|
| 33. |
2142-9005
|
[1] |
STRIKER
|
|
| 34. |
161-00195
|
[2] |
STOPPER
|
|
| 35. |
2125-9055
|
[1] |
. LOCK;BACK
|
|
| 36. |
621-02849A
|
[1] |
COVER;BACK LOCK INNER
|
|
| 37. |
133-00220E
|
[1] |
LEVER,BACK LOCK
|
|
| 38. |
195-02719B
|
[1] |
BRACKET;BACK LOCK
|
|
| 39. |
2121-1311D4
|
[2] |
NUT
|
|
| 41. |
2120-2166D1
|
[6] |
BOLT
|
|
| 42. |
2114-1856
|
[1] |
SHIM
|
|
| 43. |
2120-2150D1
|
[2] |
BOLT
|
|
| 46. |
2114-1898D2
|
[4] |
WASHER
|
|
| 47. |
2120-2166D5
|
[4] |
BOLT
|
|
| 48. |
2127-1002A
|
[1] |
CABLE;BACK LOCK
|
|
