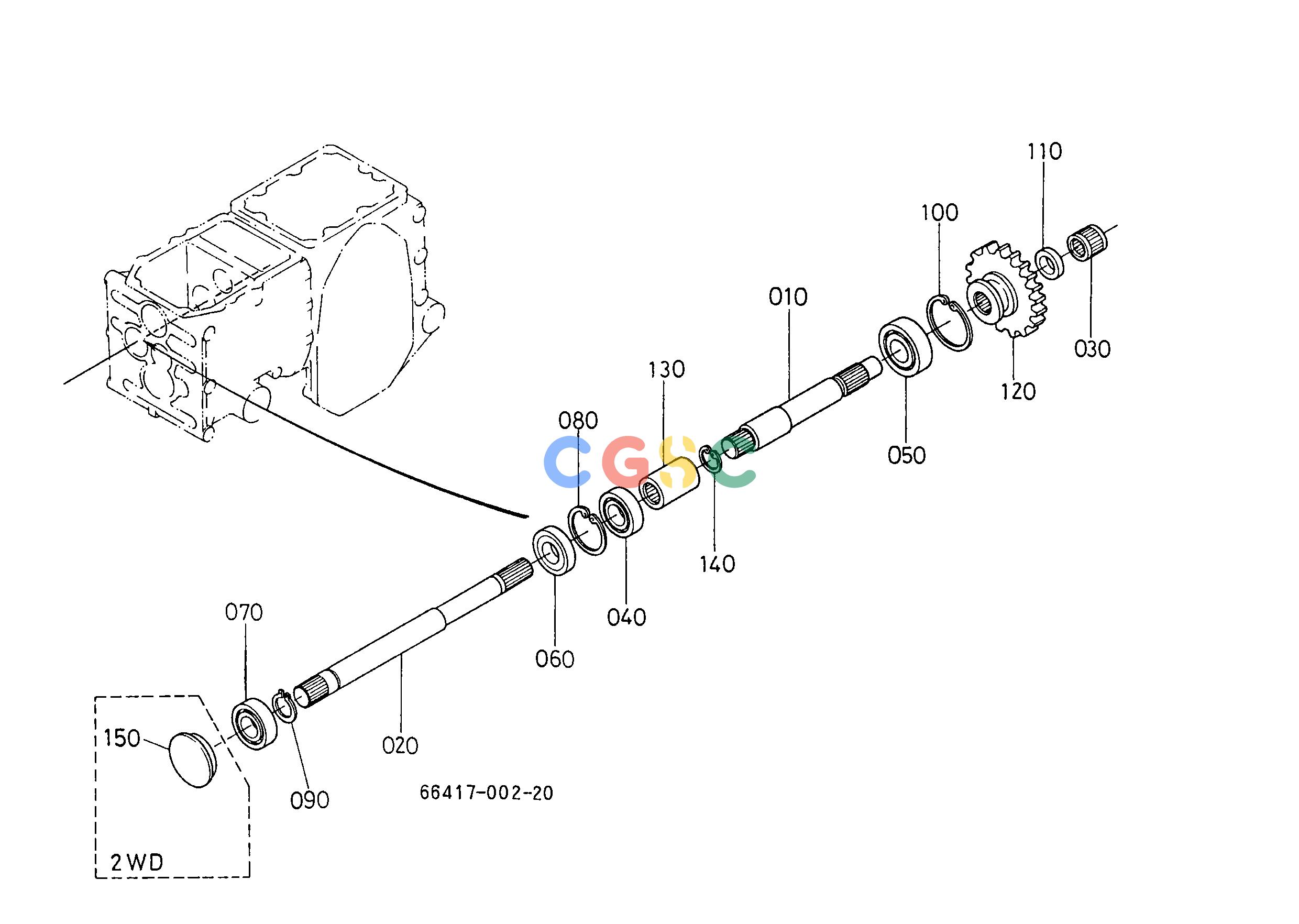

久保田零件查询T05700 FRONT WHEEL DRIVE SHAFT TRANSMISSIONEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
560 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6620414830
|
[1] |
SHAFT FRONT DRIVE
|
1.0120(lbs); 0.460
|
| 020. |
6620414810
|
[1] |
SHAFT FRONT DRIVE
|
1.4740(lbs); 0.670
|
| 030. |
6795514620
|
[1] |
BEARING NEEDLE
|
0.0110(lbs); 0.005
|
| 040. |
6731114820
|
[1] |
BEARING BALL
|
0.1540(lbs); 0.070
|
| 050. |
0810106204
|
[1] |
BEARING BALL
|
0.2244(lbs); 0.102
|
| 060. |
0950020428
|
[1] |
SEAL OIL
|
0.0264(lbs); 0.012
|
| 070. |
0814106004
|
[1] |
BEARING BALL
|
0.1408(lbs); 0.064
|
| 080. |
0461100420
|
[1] |
CIR CLIP INTERNAL
|
0.0132(lbs); 0.006
|
| 090. |
0461200200
|
[1] |
CIRCLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 100. |
0461100470
|
[1] |
CIR CLIP INTERNAL
|
0.0132(lbs); 0.006
|
| 110. |
6661114830
|
[1] |
COLLAR
|
0.0352(lbs); 0.016
|
| 120. |
6641614840
|
[1] |
GEAR
|
0.5720(lbs); 0.260
|
| 130. |
6620414820
|
[1] |
JOINT FRONT DRIVE
|
0.2640(lbs); 0.120
|
| 140. |
0461100180
|
[1] |
CIR CLIP INTERNAL
|
0.0022(lbs); 0.001
|
