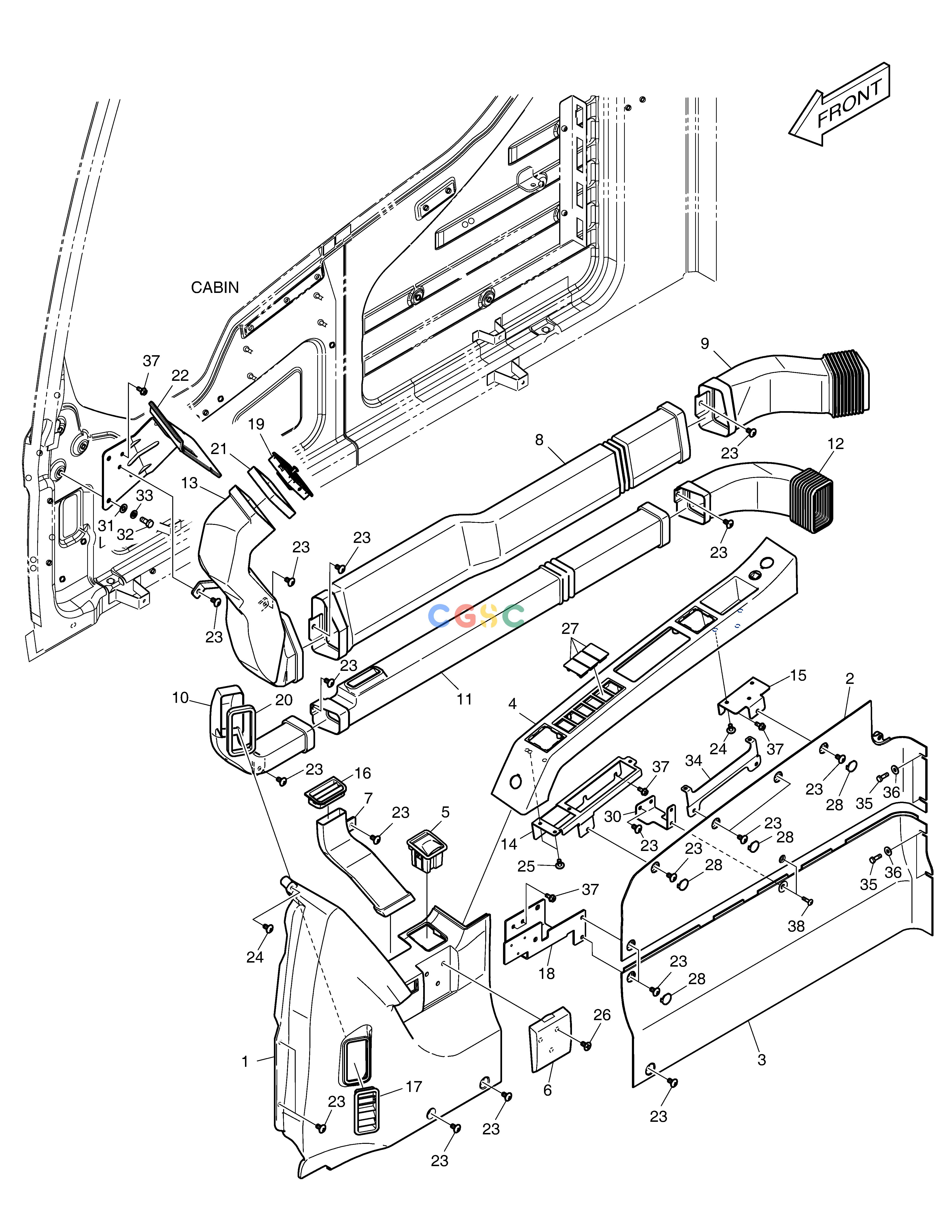

斗山零件查询DUCT COVER DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
801 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
621-02902J
|
[-] |
SIDE COVER ASS'Y
|
|
| 1. |
621-02903C
|
[1] |
COVER;SIDE FRONT
|
|
| 10. |
213-00032B
|
[1] |
DUCT;DEFROSTER FRONT
|
|
| 11. |
213-00033B
|
[1] |
DUCT;DEFROSTER MID
|
|
| 12. |
213-00034E
|
[1] |
DUCT;DEFROSTER REAR
|
|
| 13. |
213-00029C
|
[1] |
DUCT;FACE FRONT
|
|
| 14. |
195-02768C
|
[1] |
BRACKET;SWITCH COVER FRONT
|
195-02768E
|
| 14. |
195-02768E
|
[1] |
BRACKET,SWITCH
|
|
| 15. |
195-02769C
|
[1] |
BRACKET;SWITCH COVER REAR
|
195-02769E
|
| 15. |
195-02769E
|
[1] |
BRACKET,SWITCH
|
|
| 16. |
415-00046B
|
[1] |
LOUVER;SIDE
|
|
| 17. |
415-00045B
|
[1] |
LOUVER;FRONT
|
|
| 18. |
195-02770C
|
[1] |
BRACKET;CUP HOLDER
|
195-02770E
|
| 18. |
195-02770E
|
[1] |
BRACKET;CUP
|
|
| 19. |
415-00044B
|
[1] |
LOUVER;FACE
|
|
| 2. |
621-02905C
|
[1] |
COVER;SIDE UPPER
|
|
| 20. |
K1001068
|
[1] |
FOAM
|
|
| 21. |
K1001069A
|
[1] |
FOAM
|
|
| 22. |
195-02858C
|
[1] |
BRACKET;MONITOR
|
195-02858E
|
| 22. |
195-02858E
|
[1] |
BRACKET;MONITOR
|
|
| 23. |
2120-2166D52
|
[22] |
. BOLT
|
|
| 24. |
2120-2166D53
|
[4] |
. SCREW
|
|
| 25. |
S3654523
|
[4] |
SCREW
|
|
| 26. |
2120-2166D23
|
[3] |
SCREW
|
|
| 27. |
621-02801
|
[3] |
COVER,SWITCH
|
|
| 28. |
621-03734A
|
[6] |
COVER
|
|
| 3. |
621-02904C
|
[1] |
COVER;SIDE LOWER
|
|
| 30. |
K1005007A
|
[1] |
PLATE
|
|
| 31. |
2114-1898D14
|
[3] |
WASHER
|
|
| 32. |
2120-2166D5
|
[3] |
BOLT
|
|
| 33. |
2114-2031D4
|
[3] |
WASHER
|
|
| 34. |
K1009627
|
[1] |
PLATE
|
|
| 35. |
2120-2166D36
|
[4] |
BOLT
|
|
| 36. |
2114-1898D5
|
[4] |
WASHER
|
|
| 37. |
K1010304
|
[8] |
BOLT
|
|
| 38. |
2120-2166D57
|
[2] |
BOLT
|
|
| 4. |
621-02909G
|
[1] |
COVER;SWITCH
|
|
| 5. |
906-00002A
|
[1] |
ASHTRAY
|
|
| 6. |
621-02908B
|
[1] |
CUP HOLDER
|
|
| 7. |
213-00035B
|
[1] |
DUCT;DEFROSTER SIDE
|
|
| 8. |
213-00030B
|
[1] |
DUCT;FACE MID
|
|
| 9. |
213-00031E
|
[1] |
DUCT;FACE REAR
|
|
