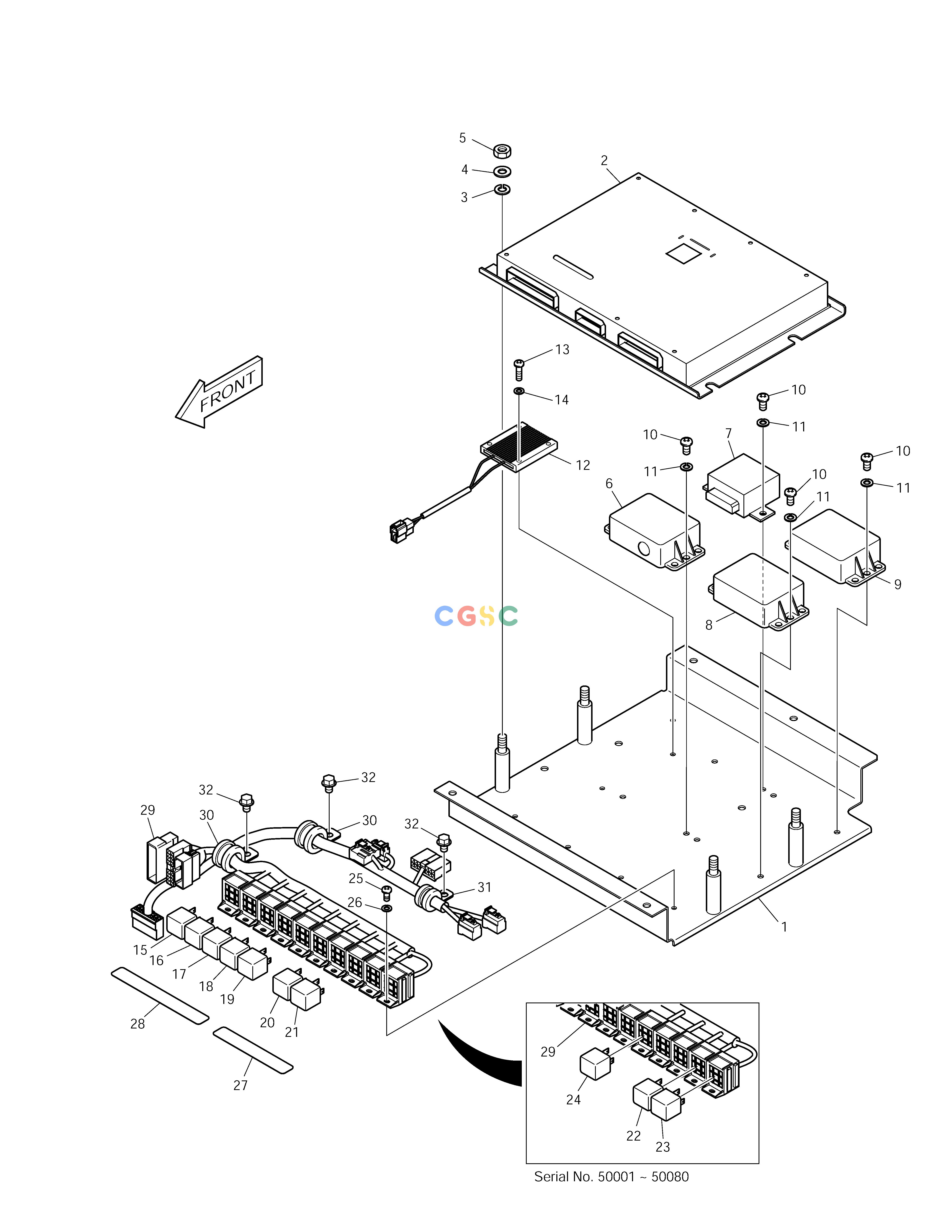

斗山零件查询ELECTRIC BOX ASS'Y DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
893 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1027230A
|
[1] |
ELECTRIC BOX ASS'Y
|
|
| -. |
K1027230B
|
[1] |
ELECTRIC BOX ASS'Y
|
|
| -. |
K1027230C
|
[1] |
ELECTRIC BOX ASS'Y
|
|
| 1. |
621-02955B
|
[1] |
PLATE;ELECTRIC BOX
|
621-02955C
|
| 1. |
621-02955C
|
[1] |
PLATE;ELECTRIC BOX
|
|
| 10. |
S3450953
|
[8] |
SCREW
|
|
| 11. |
S5102303
|
[8] |
. WASHER
|
|
| 12. |
545-00011
|
[1] |
RESISTOR,AUXILIARY
|
|
| 13. |
S3450863
|
[2] |
SCREW
|
|
| 14. |
S5100203
|
[2] |
WASHER
|
|
| 15. |
2544-9033
|
[1] |
RELAY
|
|
| 16. |
2544-9033
|
[1] |
RELAY
|
|
| 17. |
2544-9033
|
[1] |
RELAY
|
|
| 18. |
2544-9033
|
[1] |
RELAY
|
|
| 19. |
2544-9033
|
[1] |
RELAY
|
|
| 2. |
K1026738A
|
[1] |
CONTROLLER;EPOS
|
|
| 2. |
K1026738B
|
[1] |
CONTROLLER;EPOS
|
|
| 20. |
2544-9033
|
[1] |
RELAY
|
|
| 21. |
2544-9033
|
[1] |
RELAY
|
|
| 22. |
2544-9033
|
[1] |
RELAY
|
|
| 23. |
2544-9033
|
[1] |
RELAY
|
|
| 24. |
2544-9033
|
[1] |
RELAY
|
|
| 25. |
S3450833
|
[4] |
BOLT
|
|
| 26. |
S5100203
|
[4] |
WASHER
|
|
| 27. |
190-01192D9
|
[1] |
PLATE;NAME(RELAY)
|
|
| 28. |
190-01192D2
|
[1] |
PLATE;NAME(RELAY)
|
|
| 29. |
530-00412G
|
[1] |
HARNESS;ELECTRIC BOX
|
|
| 3. |
S5010613
|
[4] |
WASHER
|
|
| 30. |
124-00208D3
|
[2] |
CLIP
|
|
| 31. |
124-00208D2
|
[1] |
CLAMP
|
|
| 32. |
K1001029
|
[3] |
BOLT
|
|
| 4. |
S5102603
|
[4] |
. WASHER
|
|
| 5. |
S4012633
|
[4] |
NUT
|
|
| 6. |
2543-9015
|
[1] |
CONTROLLER;STARTER
|
|
| 7. |
543-00106
|
[1] |
CONTROLLER;WIPER
|
|
| 8. |
2531-1003
|
[1] |
CONVERTER;DC-DC
|
|
| 9. |
2531-1003
|
[1] |
CONVERTER;DC-DC
|
|
