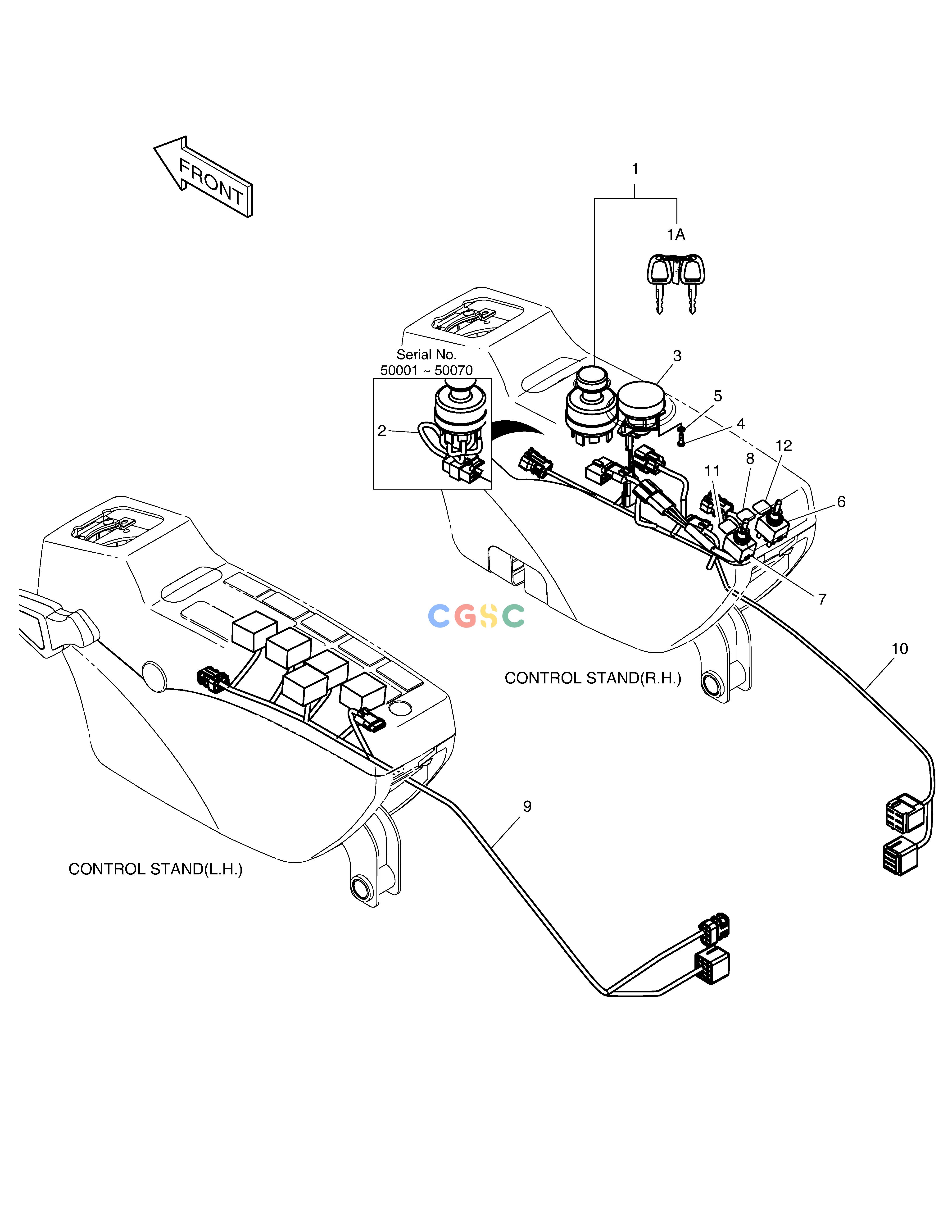

斗山零件查询ELECTRIC PARTS - CONTROL STAND DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
655 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1027232A
|
[-] |
|
|
| 1. |
K1001858A
|
[1] |
SWITCH;STARTER
|
|
| 10. |
530-00414C
|
[1] |
HARNESS;STAND(RH)
|
|
| 10. |
K1030274
|
[1] |
|
|
| 11. |
K1004425
|
[1] |
PLATE;NAME
|
|
| 12. |
K1004426
|
[1] |
PLATE,NAME
|
|
| 1A. |
K1009605B
|
[2] |
KEY;STARTER SWITCH
|
|
| 2. |
530-00150
|
[1] |
HARNESS;STARTER SWITCH
|
|
| 3. |
K1013846
|
[1] |
DIAL;ENGINE CONTROL
|
|
| 4. |
S3450583
|
[2] |
SCREW
|
|
| 5. |
S5100103
|
[2] |
WASHER
|
|
| 6. |
549-00090A
|
[1] |
SWITCH,TOGGLE
|
|
| 7. |
K1001702A
|
[1] |
SWITCH;TOGGLE
|
|
| 8. |
K1004427
|
[1] |
PLATE,NAME
|
|
| 9. |
530-00415C
|
[1] |
HARNESS;STAND(LH)
|
|
| 9. |
K1030275
|
[1] |
HARNESS;STAND(LH)
|
|
