斗山零件查询ELECTRIC PARTS - ENGINE DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
447 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

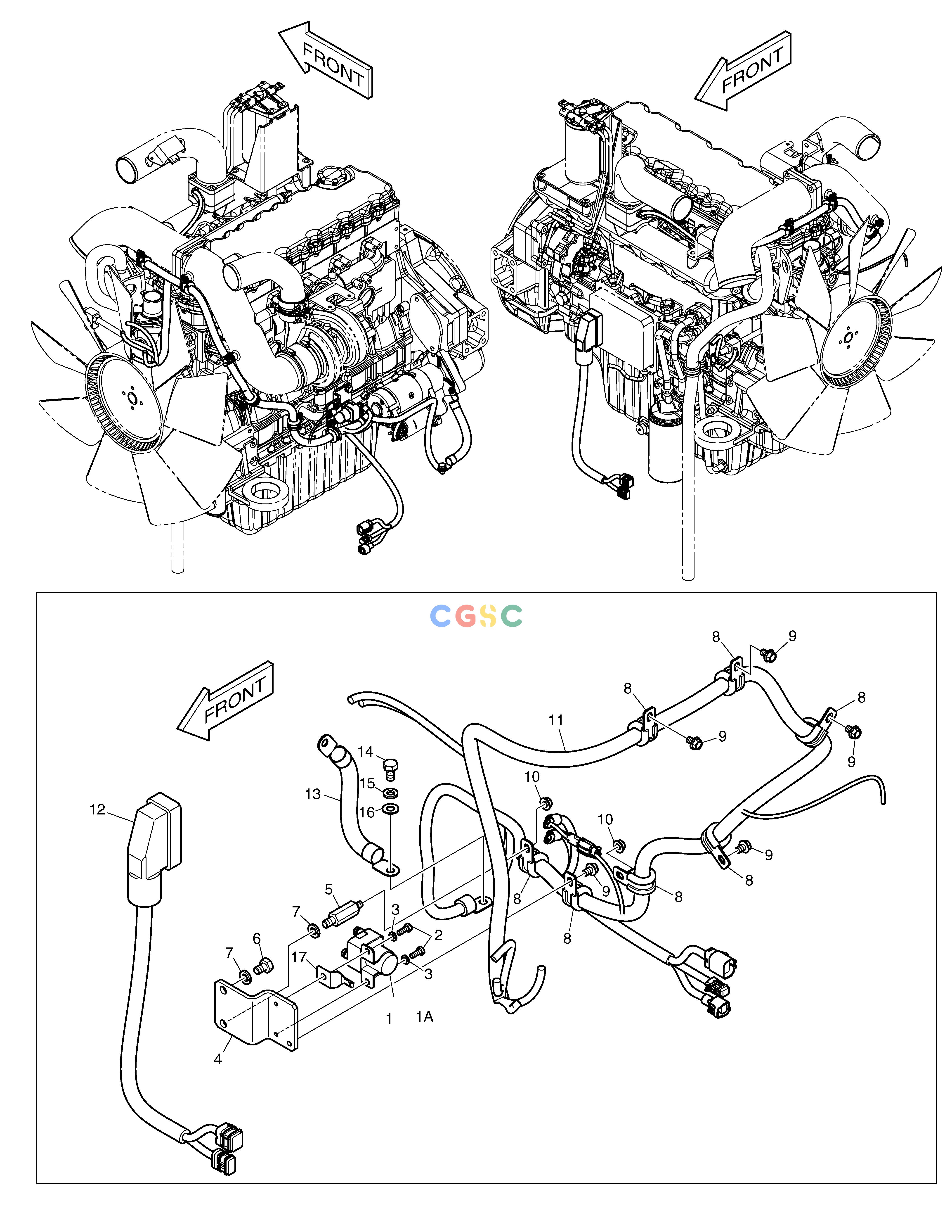

K1027234
|
[-] |
ELECTRIC PARTS;ENGINE
|
|
| 1. |
544-00007
|
[1] |
RELAY;PREHEAT
|
|
| 10. |
2121-1305
|
[2] |
NUT
|
|
| 11. |
K1015602A
|
[1] |
HARNESS;ENGINE
|
|
| 12. |
K1008449A
|
[1] |
HARNESS;JOINT(ECU)
|
|
| 13. |
553-00001D4
|
[1] |
CABLE;E/G EARTH
|
|
| 14. |
S0511853
|
[1] |
BOLT
|
|
| 15. |
S5102603
|
[1] |
. WASHER
|
|
| 16. |
S5010613
|
[1] |
WASHER
|
|
| 17. |
2197-1661
|
[1] |
BRACKET
|
|
| 1A. |
527-00005
|
[1] |
FUSE;PREHEAT RELAY
|
|
| 2. |
S0504666
|
[2] |
BOLT
|
|
| 3. |
S5102303
|
[2] |
. WASHER
|
|
| 4. |
K1015201
|
[1] |
BRACKET;PREHEAT RELAY
|
|
| 5. |
DS0014011
|
[1] |
BOLT;STUD
|
|
| 6. |
S0511666
|
[1] |
BOLT
|
|
| 7. |
S5102603
|
[2] |
. WASHER
|
|
| 8. |
124-00208D3
|
[7] |
CLIP
|
|
| 9. |
K1001029
|
[5] |
BOLT
|
|
