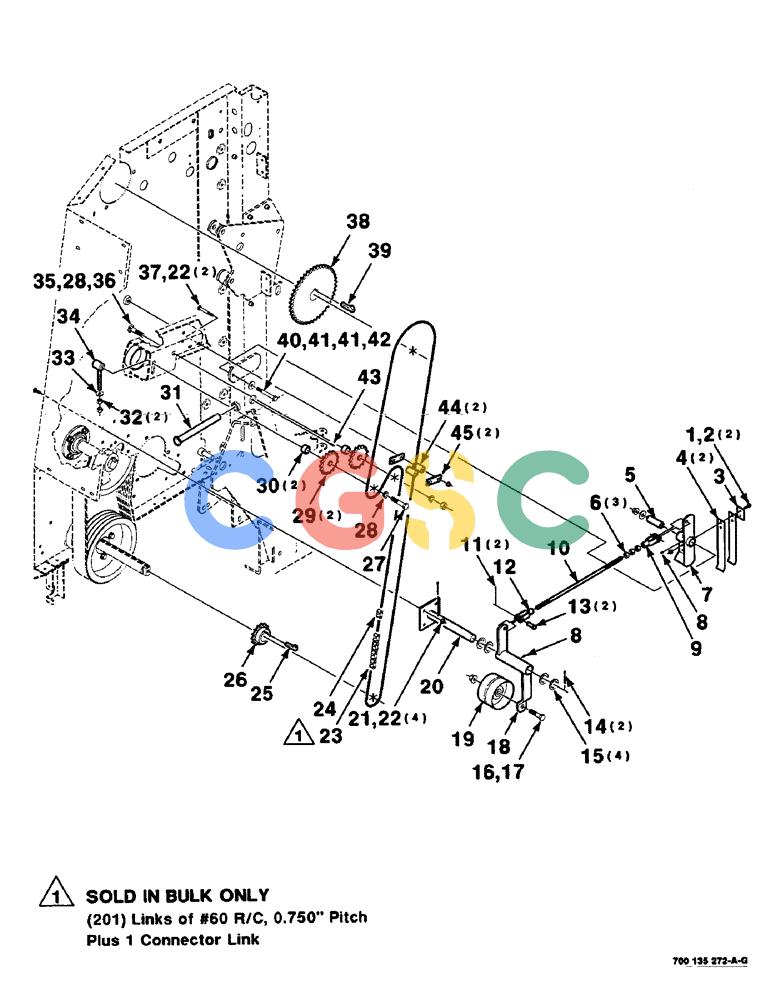

| 1. |
121-108
|
[2] |
BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr
|
CAS
5/16-18 X 1 HWHMS
|
| 2. |
232-5315
|
[2] |
FLANGE NUT,Flg, 5/16"-18
|
CAS
5/16-18 HFTLN GR/G
|
| 3. |
700135054
|
[1] |
PLATE
|
HFI
|
| 4. |
700716006
|
[2] |
SPRING
|
CAS
- leaf
|
| 5. |
700135052
|
[1] |
TUBE,25.4 mm OD, 71.5 mm Length
|
HFI
|
| 6. |
425-118
|
[3] |
NUT,1/2"-20, G5
|
CAS
1/2-20 H Superseded by part number: 280963
|
| 7. |
700135048
|
[1] |
LEVER
|
HFI
WA
|
| 8. |
219-8
|
[2] |
LUBE NIPPLE,1/4" - 28 NPTF
|
CAS
NIPPLE, LUBE, 1/4"-28 NPT x .54" lg Superseded by part number: 87414
|
| 9. |
213-128
|
[1] |
ADJUSTABLE CLEVIS,1/2"-20 x 3"
|
CAS
CLEVIS, ADJUSTABLE, 1/2"-20 x 3" Superseded by part number: 87326432
|
| 10. |
700135047
|
[1] |
ROD
|
HFI
|
| 11. |
432-1020
|
[2] |
COTTER PIN,5/32" x 1 1/4"
|
CAS
PIN, SPLIT (COTTER), 5/32" x 1 1/4" Superseded by part number: 86523851
|
| 12. |
766063
|
[1] |
CLEVIS
|
CAS
1/2-20 UNF - LH clevis
|
| 13. |
63677
|
[2] |
WASHER
|
IH
1/2 X 1-27/64 CLEVIS PIN Superseded by part number: 2975160, 2975160, IH63677
|
| 14. |
432-1632
|
[2] |
COTTER PIN,1/4" x 2"
|
CAS
Pin, Split (Cotter), 1/4" x 2" Superseded by part number: 88182
|
| 15. |
52324
|
[4] |
BUSHING
|
CAS
1-1/4 X 10 GAUGE NRMB Superseded by part number: 052324
|
| 16. |
413-1040
|
[1] |
BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5
|
CAS
Superseded by part number: 280233
|
| 17. |
232-53110
|
[1] |
FLANGE NUT,Flg, 5/8"-11
|
CAS
5/8-11 HFTLN GR/G Superseded by part number: 84180923
|
| 18. |
700135039
|
[1] |
SUPPORT
|
HFI
WA
|
| 19. |
700716004
|
[1] |
PULLEY
|
CAS
IDLER - flat
|
| 20. |
700135043
|
[1] |
SUPPORT
|
HFI
WA
|
| 21. |
433-620
|
[4] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5
|
CAS
BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5 Superseded by part number: 86508773
|
| 22. |
232-5316
|
[6] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
3/8-16 HFTLN GR/G Superseded by part number: 86521609
|
| 23. |
7086002
|
[1] |
CHAIN (AG)
|
CAS
CHAIN - roller, #60 (10 foot bulk) Superseded by part number: 611362R91X, 241-1316
|
| 24. |
241-1316
|
[1] |
LINK,19.05mm Pitch
|
CAS
LINK - connector, #60
|
| 25. |
Q81
|
[1] |
KEY,Gib, 3/8" Sq x 1 3/4"
|
IH
3/8 X 1-3/4 GIB KEY
|
| 26. |
7850720
|
[1] |
PINION
|
L
SPROCKET - 60B14 tooth
|
| 27. |
413-1048
|
[1] |
BOLT,Hex, 5/8" - 11 x 3", Gr 5
|
CAS
Superseded by part number: 87338
|
| 28. |
492-11062
|
[2] |
BEARING WASHER,5/8"
|
CAS
WASHER, LOCK, 5/8" Superseded by part number: 86729275
|
| 29. |
541857R92
|
[2] |
SPROCKET,15T
|
IH
IDLER - sprocket, 15 tooth
|
| 30. |
6619274
|
[2] |
BUSHING
|
HFI
|
| 31. |
700135055
|
[1] |
PLUNGER
|
HFI
WA
|
| 32. |
425-108
|
[2] |
NUT,1/2" - 13, Gr 5
|
CAS
NUT, , Hex 1/2"-13, G5 Superseded by part number: 280431
|
| 33. |
705541
|
[1] |
WASHER,0.53" ID x 1.06" OD x 0.14" Thk
|
CAS
1/2 HARDENED PLAIN WASHER
|
| 34. |
700135548
|
[1] |
SPECIAL BOLT
|
HFI
DRAWBOLT WA
|
| 35. |
433-1044
|
[1] |
CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 3/4", Gr 5
|
CAS
5/8-11 X 2-3/4 RHSNB Superseded by part number: 9602228
|
| 36. |
425-1010
|
[1] |
NUT,5/8"-11, G5
|
CAS
Superseded by part number: 280374
|
| 37. |
433-648
|
[2] |
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3", Gr 5
|
CAS
3/8-16 X 3 RHSNB Superseded by part number: 280806
|
| 38. |
700135033
|
[1] |
SPROCKET ASSY.
|
HFI
SPROCKET WA - 60B42 tooth
|
| 39. |
861088
|
[1] |
BUCKET TOOTH KEY
|
IH
1/2 X 2 GIB KEY
|
| 40. |
413-864
|
[1] |
BOLT,Hex, 1/2" - 13 x 4", Gr 5
|
CAS
1/2-13 X 4 C Superseded by part number: 86505993
|
| 41. |
700711557
|
[2] |
WASHER
|
CAS
1/2 HARDENED WIDE PLAIN WASHER
|
| 42. |
231-5348
|
[1] |
FLANGE NUT,Flg, 1/2"-13
|
CAS
1/2-13 HFTLN GR/G Superseded by part number: 86521610
|
| 43. |
219-11
|
[1] |
LUBE NIPPLE,1/4" - 28 NPTF
|
CAS
NIPPLE, LUBE, , Extended 1/4"-28 NPT x .94" lg Superseded by part number: 86547835
|
| 44. |
700716908
|
[2] |
GUIDE
|
CAS
- chain
|
| 45. |
700716907
|
[2] |
PLATE
|
CAS
- guide
|
