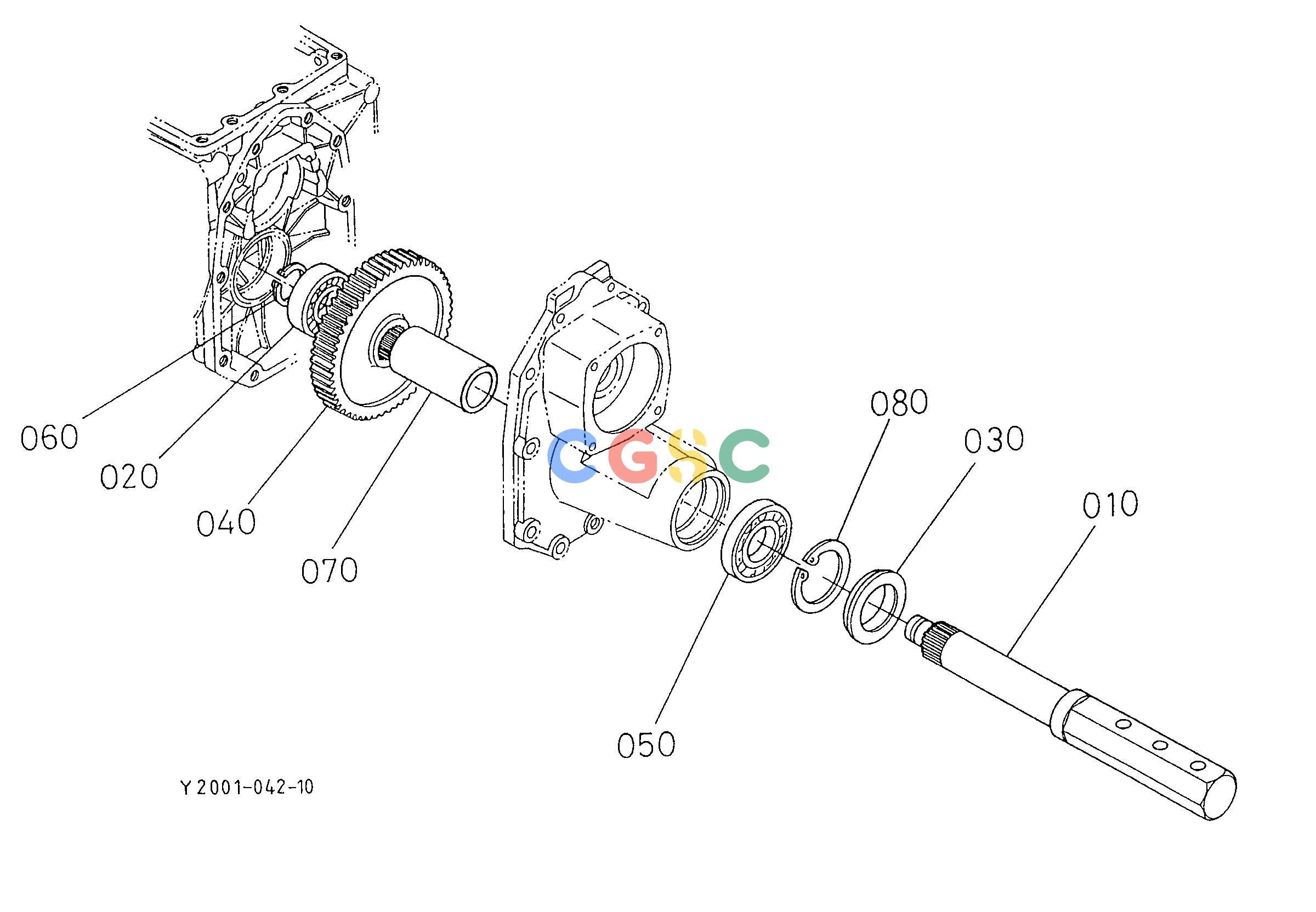

久保田零件查询T06900 REAR AXLE REAR AXLE/REAR WHEELEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
746 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6661117114
|
[2] |
AXLE REAR
|
10.2080(lbs); 4.640
|
| 020. |
0810106306
|
[2] |
BEARING BALL
|
0.7700(lbs); 0.350
|
| 030. |
6661117120
|
[2] |
SEAL OIL
|
0.1980(lbs); 0.090
|
| 040. |
6661117130
|
[2] |
GEAR
|
5.2800(lbs); 2.400
|
| 050. |
0810106208
|
[2] |
BEARING BALL
|
0.7810(lbs); 0.355
|
| 060. |
0461200300
|
[2] |
CIRCLIP EXTERNAL
|
0.0066(lbs); 0.003
|
| 070. |
6661117143
|
[2] |
COLLAR
|
1.1330(lbs); 0.515
|
| 080. |
0461100800
|
[2] |
CIR CLIP INTERNAL
|
0.0440(lbs); 0.020
|
